74LS240 (Octal 3-state buffer)

74LS240 is a specific model within the 7400 series of integrated circuits, functioning as an octal inverting buffer/line driver with 3-state outputs.

It is designed to improve signal integrity and drive capability in bus-oriented systems.

Key Features and Specifications

According to various datasheets, the 74LS240 has the following characteristics:

• Logic Type: Octal inverting buffer/line driver with three-state outputs.
• Outputs: The 3-state outputs allow multiple devices to share the same bus line without interference by entering a high-impedance state when disabled.
• Inputs: Features PNP inputs, which reduce the DC loading on bus lines, and hysteresis to improve noise margins and rejection.
• Supply Voltage: A standard 5V operating voltage (range of 4.75V to 5.25V for commercial grade).
• Speed: Offers fast switching speeds, with a typical propagation delay of 10.5 ns.
• Current Capability: Capable of high fanout, with typical sink current (IOL) of 24 mA and source current (IOH) of -15 mA.

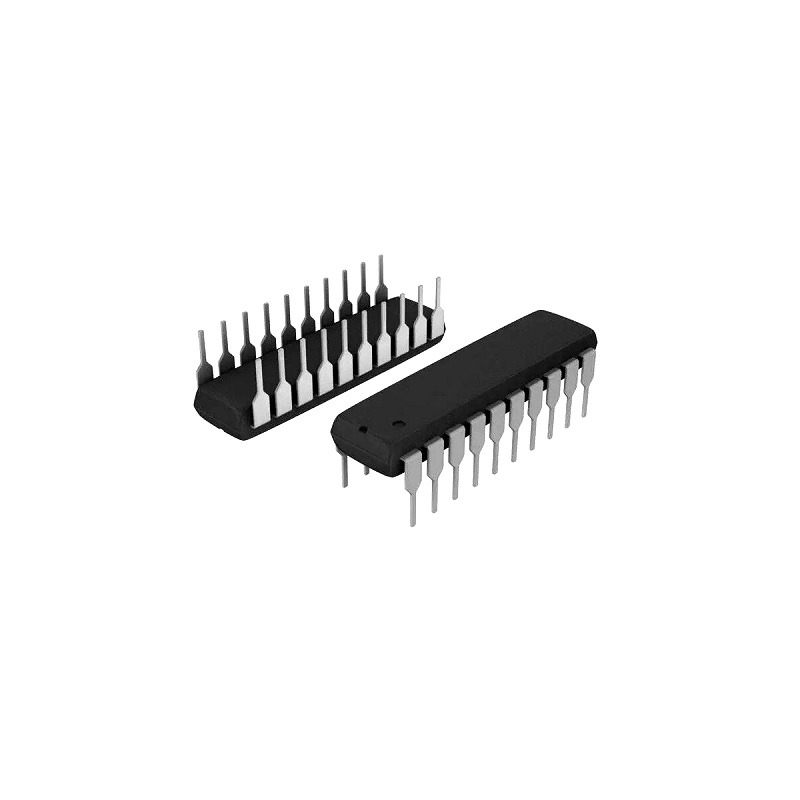

• Package: Commonly available in a 20-pin dual in-line package (DIP-20), as well as various surface-mount options.

Applications

The 74LS240 is primarily used in applications that require signal amplification, bus isolation, or logic-level translation in high-speed digital systems.

• Memory Address Drivers: Used to buffer memory address registers and ensure the signal is strong enough to reach all memory components.
• Clock Drivers: Helps distribute clock signals across a circuit board with minimal noise and signal degradation.
• Bus-Oriented Transmitters/Receivers: Facilitates data transfer in parallel communication lines and microprocessor systems.
• Networking and Servers: Utilized in network switches and server infrastructure to maintain signal integrity.
