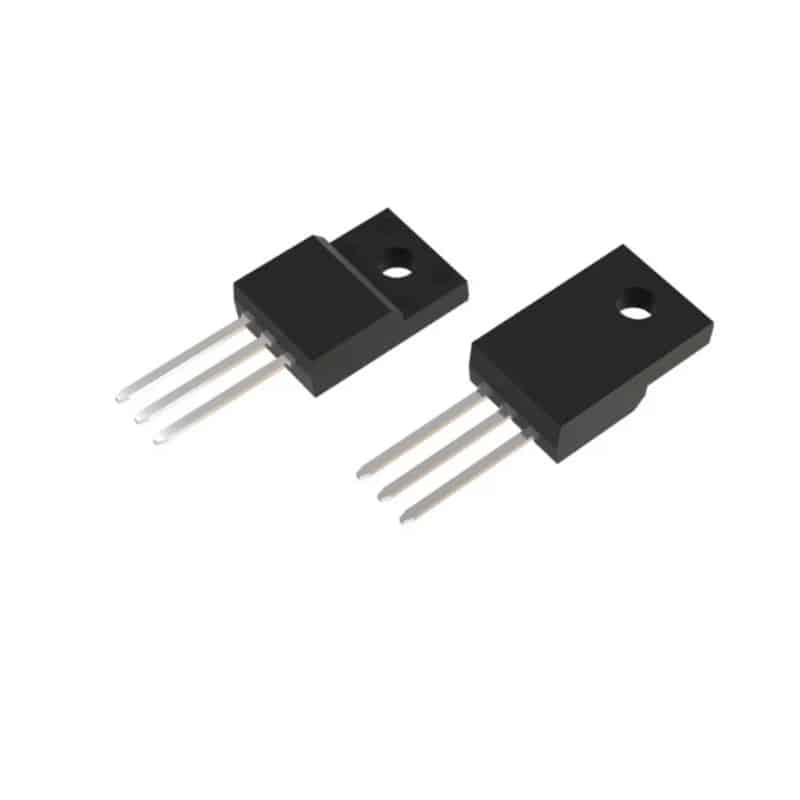

A1720 (2SA1720) Power Transistor PNP (100V , 10A)

Features :

Type Designator: 2SA1720
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 4000
Noise Figure, dB: -
Package: TO-220
