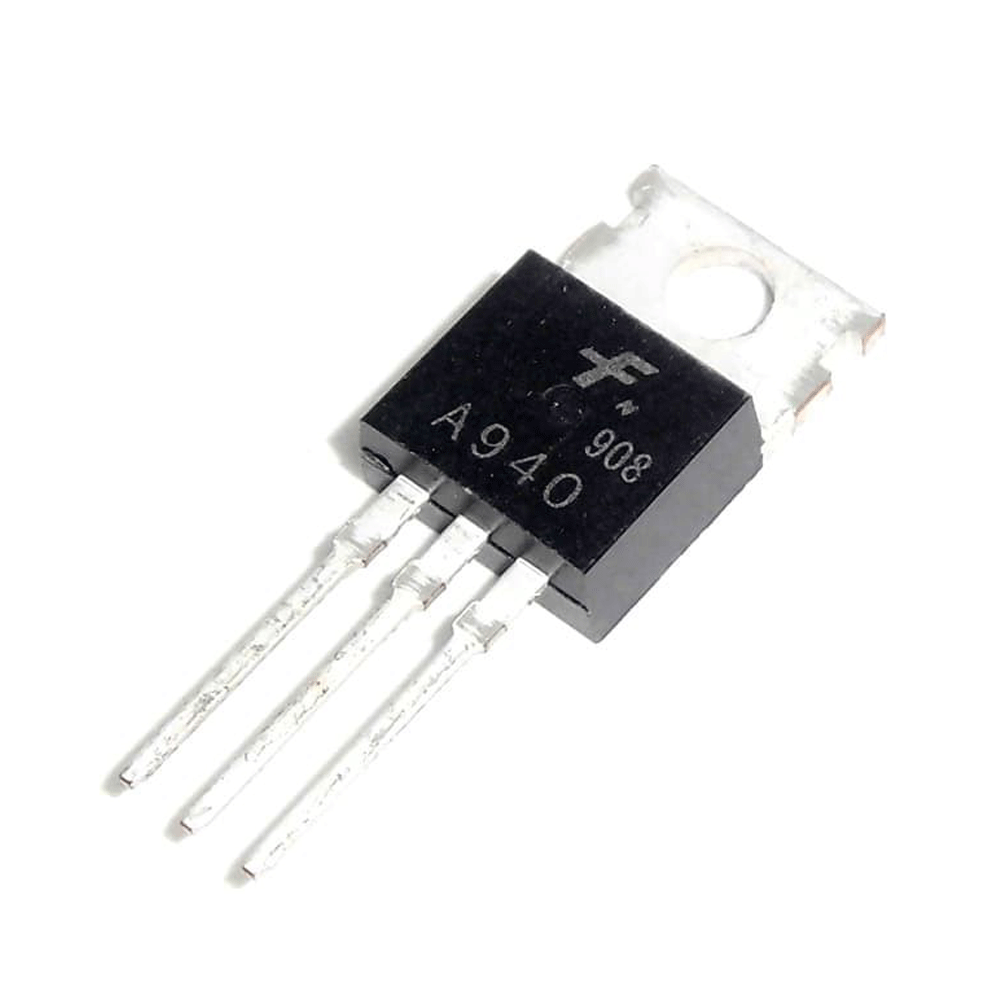

A940 (2SA940) PNP Power Transistors (150V, 1.5A)

2SA940 is a PNP BJT transistor in a TO-220  package.
This transistor is intended for general-purpose amplification and vertical output circuits, although it is not confined to these applications and can be utilized in a wide range of other applications.
It also has a fast switching capability, which makes it excellent for applications that require quick switching.
It can drive a maximum load of -1.5A and a maximum load voltage of -150V when used as a switch.

• Type: PNP
• Collector-Emitter Voltage: -150 V
• Collector-Base Voltage: -150 V
• Emitter-Base Voltage: -5 V
• Collector Current: -1.5 A
• Collector Dissipation: 25 W
• DC Current Gain (hfe): 40 to 140
• Transition Frequency: 4 MHz
• Operating and Storage Junction Temperature Range: -55 to +150 °C
• Package: TO-220

• Darlington Pair
• Audio Amplifiers
• Vertical Output Circuitry
• Switching Loads under -1.5A
• Many general-purpose applications

2SC2073, 2SA1304, 2SA740, 2SA940  A, 2SB546, 2SB546A, 2SB547, 2SB630, KSA1304, KSA940, KSB546, MJE15031, MJE15031G, MJE5850, MJE5850G, MJF15031, MJF15031G
