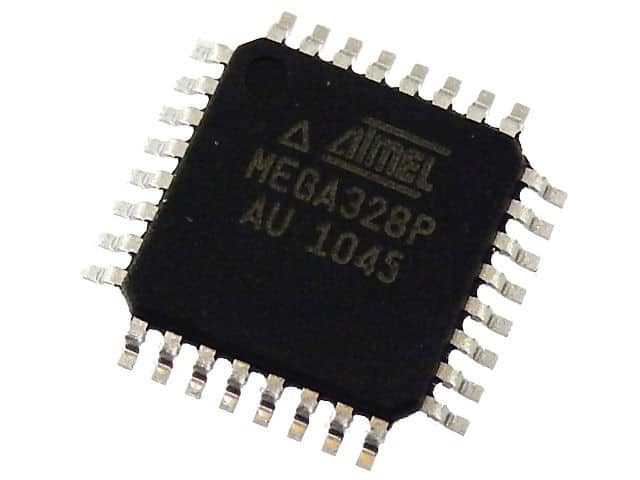

ATMEGA328 P-AU SMD

Summary

The high-performance Microchip picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Parametrics

• Program Memory Type: Flash
• Program Memory Size (KB): 32
• CPU Speed (MIPS/DMIPS): 20
• SRAM Bytes: 2,048
• Data EEPROM/HEF (bytes): 1024
• Digital Communication Peripherals: 1-UART, 2-SPI, 1-I2C
• Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP, 6PWM
• Timers: 2 x 8-bit, 1 x 16-bit
• Number of Comparators: 1
• Temperature Range (C): -40 to 85
• Operating Voltage Range (V): 1.8 to 5.5
• Pin Count: 32
• Low Power: Yes
