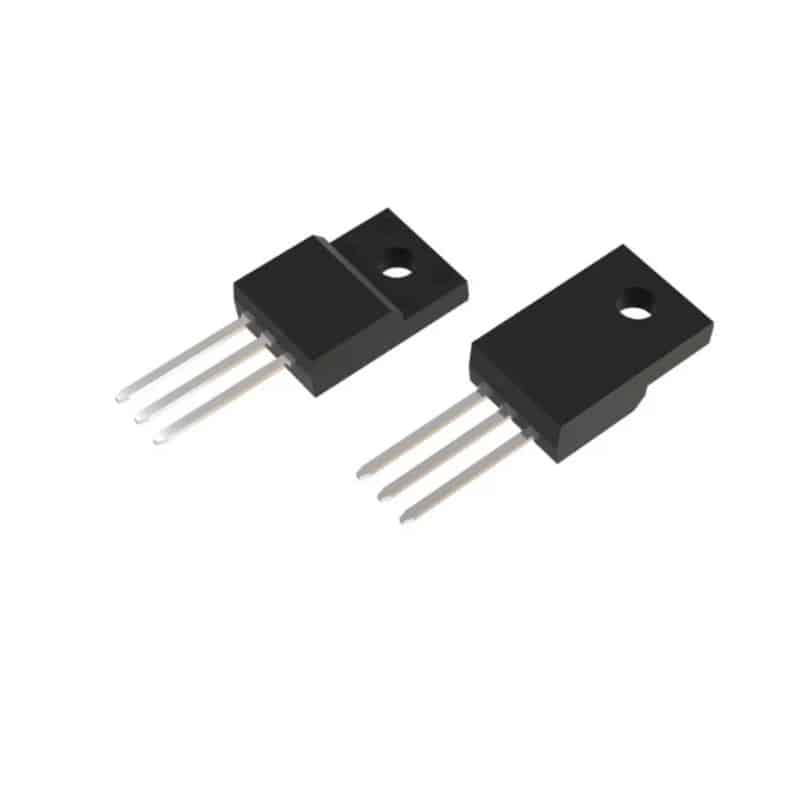

B1432 (2SB1432) Power Transistor PNP (100V , 10A)

Description

Features :

Type Designator: 2SB1432
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 175 °C
Forward Current Transfer Ratio (hFE), MIN: 1000
Noise Figure, dB: –
Package: TO220
