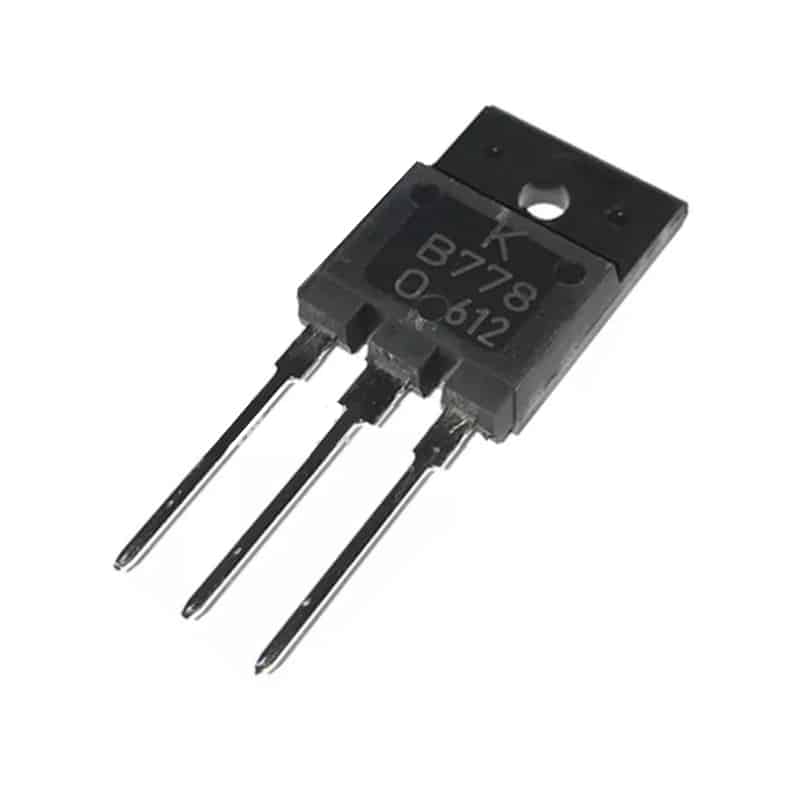

B778 (2SB778) Power Transistor PNP (120V , 10A)

Description

Features :

Type Designator: 2SB778
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: –
Package: TO218
