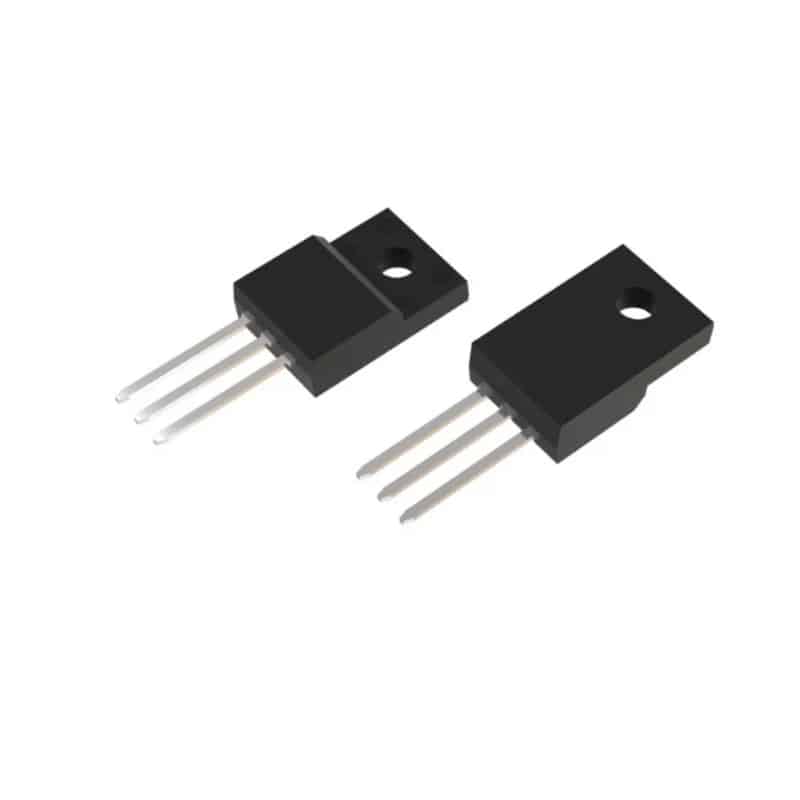

B953 (2SB953) Power Transistor PNP (40V , 7A)

Description

Features :

Type Designator: 2SB953
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 3 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: –
Package: TO220
