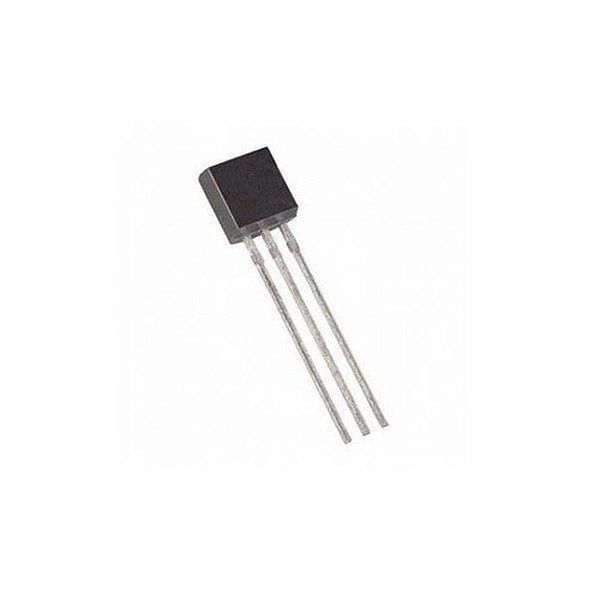

BC546 Transistor (NPN, 80V, 100mA)

BC546 Transistor

The BC546 is a popular NPN bipolar junction transistor (BJT) widely used in various electronic circuits for amplification and switching applications. It's commonly used for low-power switching and amplification in audio circuits, signal processing, and other general-purpose applications.

Key Features:

1. Type:
   • NPN: The BC546 is an NPN transistor, which means it has an N-type base and P-type emitter and collector. It's commonly used for switching and amplification of low-power signals.
2. Maximum Voltage Ratings:
   • Collector-Emitter Voltage (Vceo): 65V - This is the maximum voltage that can be applied between the collector and emitter with the base open.
   • Collector-Base Voltage (Vcbo): 80V - This is the maximum voltage that can be applied between the collector and base with the emitter open.
   • Emitter-Base Voltage (Vebo): 5V - This is the maximum voltage that can be applied between the emitter and base with the collector open.
3. Maximum Current:
   • Collector Current (Ic): 100mA - This is the maximum continuous current that can flow through the collector of the transistor.
4. Power Dissipation:
   • Power Dissipation (Ptot): 500mW (0.5W) - This is the maximum power the transistor can dissipate without overheating.
5. Current Gain (hFE):
   • The BC546 has a current gain (hFE) typically in the range of 110 to 800. This means the transistor can amplify the base current by a factor of 110 to 800, depending on the operating conditions (voltage, current, temperature, etc.).
6. Package Type:
   • The BC546 is typically available in a TO-92 package, which is a small 3-pin package ideal for general-purpose applications and through-hole mounting.

Applications of BC546 Transistor:

1. Amplifiers:
   • The BC546 is commonly used in audio amplifiers, signal amplifiers, and RF amplifiers to boost weak signals, such as in radio receivers, microphone preamps, or audio equipment.
2. Switching Applications:
   • As an NPN transistor, it can be used in switching applications, such as controlling relays, LEDs, motors, or other electronic devices. It acts as a low-power switch for various components in a circuit.
3. Oscillator Circuits:
   • The BC546 can be used in oscillators and timing circuits, where its switching behavior is useful for generating periodic signals.
4. Signal Processing:
   • It is often used in signal processing circuits like tone control or filters, where small changes in input signals need to be amplified or manipulated.
5. Voltage Regulation:
   • In voltage regulation circuits, it can be used to stabilize voltages by amplifying small variations in the voltage levels.
6. Saturation and Linear Mode Switching:
   • The BC546 is also used in circuits where switching between saturation and linear mode is necessary for various digital or analog applications.

Advantages of BC546 Transistor:

1. Low Cost:
   • The BC546 is a low-cost transistor, making it a popular choice for prototyping, experimentation, and mass production.
2. Wide Availability:
   • It is widely available in both retail and bulk markets, making it easily accessible for hobbyists and professionals.
3. Compact Package:
   • The TO-92 package makes it compact and easy to use in small and low-power circuits, ideal for space-constrained designs.
4. Easy to Use:
   • The BC546 is beginner-friendly, and it’s widely supported in many electronic projects and resources.
