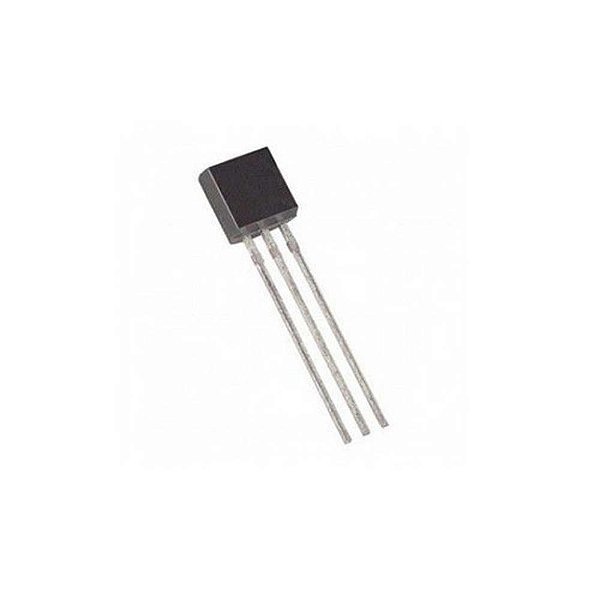

BC640 Transistor (NPN, 80V, 1.5A)

BC640 Transistor (NPN, 80V, 1.5A)

The BC640 is a NPN bipolar junction transistor (BJT) designed for use in switching and amplification applications. It is commonly used in various electronic circuits due to its robust performance characteristics and versatility.

Key Features:

• Type:The BC640 is an NPN type transistor, meaning it has a negative (N) type semiconductor material between two positive (P) type materials. It is mainly used for current amplification and switching purposes.
• Collector-Emitter Voltage (Vceo):The BC640 can handle a maximum collector-emitter voltage (Vceo) of 80V, which allows it to function in circuits with moderate voltage levels.
• Collector Current (Ic):The transistor can handle a maximum collector current (Ic) of 1.5A, which makes it suitable for medium-power applications like switching small motors, driving relays, or amplifying audio signals.
• Power Dissipation:The BC640 has a maximum power dissipation of 40W, meaning it can handle significant power levels without overheating, making it reliable in high-power applications.
• Gain (hFE):The DC current gain (hFE) typically ranges from 110 to 800 depending on the operating conditions. The current gain is important for amplification purposes because it indicates how much the transistor can amplify an input signal.
• Package Type:The BC640 is typically available in a TO-92 package, which is a small, through-hole, and widely used package suitable for mounting in both breadboards and printed circuit boards (PCBs).
• Frequency Response:The BC640 offers reasonable performance at frequencies up to around 250 MHz, making it suitable for audio and high-frequency applications.

Applications:

• Switching Circuits:The BC640 is frequently used in switching circuits to control small loads, such as activating a relay, turning LEDs on and off, or switching small motors or solenoids.
• Amplification Circuits:It is used in amplifier circuits, particularly low- and medium-power amplifiers for audio or RF applications. Its high current gain allows it to amplify signals effectively.
• Signal Processing:The BC640 can be used in signal amplification in both analog and digital signal processing circuits, such as audio amplifiers, tone control circuits, and oscillators.
• Power Supplies:It is used in power supply circuits for regulation and switching power conversion, particularly in lower-power DC-DC converters.
• Low-Frequency Oscillators:The transistor is commonly used in low-frequency oscillators for applications like timer circuits or clock circuits.
• Driver Circuits:BC640 is used in driver circuits where it needs to switch moderate loads, such as driving LEDs or small motors with higher current requirements than logic circuits can supply directly.
