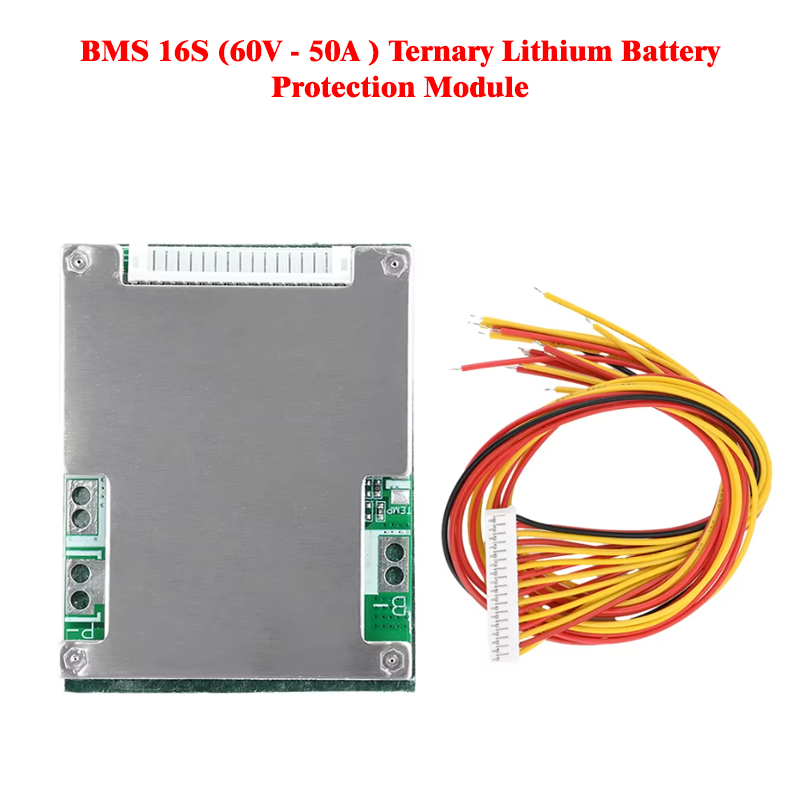

BMS 16S (60V - 50A )Lithium Battery Protection Module with Passive Balance

Product Details

The BMS 16S 50A 60V 18650 Li-ion Battery Charger Protection Board is engineered to ensure the safety and longevity of lithium-ion battery packs. With multiple protection features and wide compatibility, this module provides reliable overcharge, over-discharge, and short circuit protection for electric vehicles, scooters, and more.

Key Features:

• Made from high-quality, durable materials for long-lasting performance.
• Temperature control protection ensures safe operation under various conditions.
• Overcharge, over-discharge, over-current, and short circuit protection included.
• Compatible with 3.7V ternary, lithium manganese acid, and lithium cobalt acid batteries.
• Ideal for use in electric vehicles, inverters, and scooters.

Technical Specifications:

• Model: 16S 60V/50A same port.
• Applicable Voltage/Power: 60V, under 2500W.
• Maximum Working Current: 50A MAX.
• Continuous Working Current: 40A MAX.
• Over-discharge Protection Voltage: 2.6V.
• Overcharge Protection Voltage: 4.25V.
• Charging Current: 40A MAX.
• Temperature Protection: Discharge at 75°C, Charge at -7°C.
• Equalization charging function: Optional
• Dimensions: 61mm (length) x 30mm (width) x 18mm (height).

This BMS module offers an equalization function to ensure balanced charging across all battery cells, improving performance and extending battery life in various high-demand applications.
