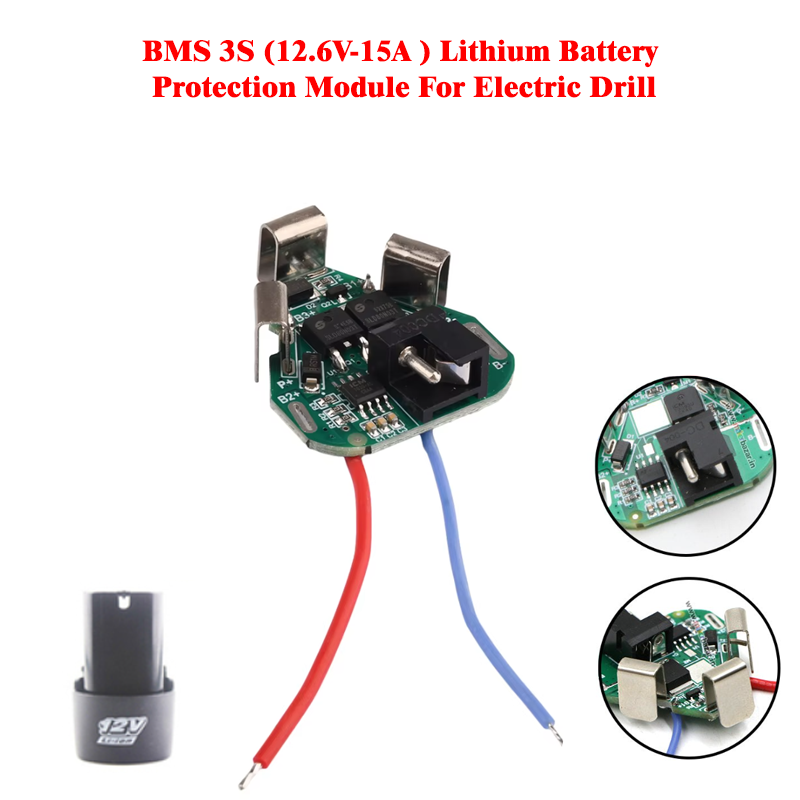

BMS 3S (12.6V-15A ) Lithium Battery Protection Module For Electric Drill

LI-ON BATTERY PROTECTION BOARD 3S 12.6V 5A

Main function:

• Charging protection, over discharge protection, over current protection.

Product use:

• 3 cell lithium-ion phosphate batteries.

Technical specifications:

• Charging voltage: DC:12.6VV CC/CV.
• Balancing voltage for one cell: N/A.
• Current Current balance for one cell: N/A.
• Current consumption: ≤ 20μA.
• Maximum continuous charging current: 3A.
• Maximum continuous discharge current: 5A.
• Overcharge protection.
• Charge detection voltage: 4.28 ± 0.05 V.
• Charge overvoltage: 4.10±0.05V.
• Overload protection.
• Discharge detection voltage: 2.70 ± 0.05 V.
• Discharge voltage: 3.00V±0.05V.
• Overcurrent protection.
• Overcurrent detection current: 10±3A.
• Short circuit protection.
• Built-in high-precision voltage detection circuit;
• the charger terminal uses a high voltage device;
• Built-in 3 section overcurrent detection circuit
• Low standby consumption.
