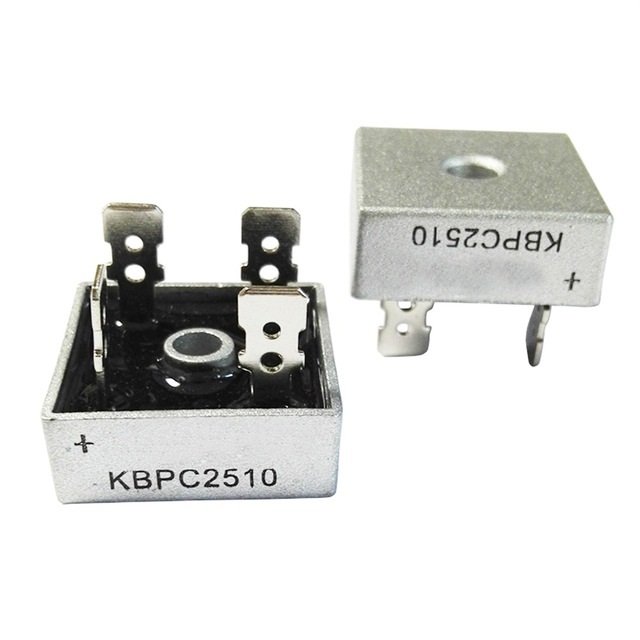

Bridge Rectifier 25A - 1000V Square Shape (KBPC2510)

The KBPC2510 is a bridge rectifier with a current rating of 25A and a voltage rating of 1000V.

General Features:

• Rectifier Type: Bridge
• Max Reverse Voltage (V_RRM): 1000V
• Max Forward Current (I_FAV): 25A
• Peak Forward Surge Current (I_FSM): 200A (typical)
• Operating Temperature Range: -55°C to +150°C
• Mounting Type: Through-hole
• Package Type: Square shape, standard for KBPC series
• Polarity: Single-phase

Electrical Characteristics:

Parameter Value

Max Reverse Voltage (V_RRM) 1000V

Max Average Forward Current (I_FAV) 25A

Peak Surge Current (I_FSM) 200A

Forward Voltage Drop (V_F) 1.1V (Max)

Reverse Leakage Current (I_R) 5µA @ 1000V

Peak Reverse Recovery Time (t_rr) 50ns (Max)

Mechanical Characteristics:

• Case: Metal case (rectangular shape)
• Weight: Approximately 70g
• Mounting Style: Through-hole, typically used in industrial applications with heat sink or direct connection to mounting surface for heat dissipation.

Thermal Characteristics:

• Max Junction Temperature: 150°C
• Thermal Resistance Junction to Case (R_θJC): Typically 1.3°C/W
• Thermal Resistance Junction to Ambient (R_θJA): Varies with installation conditions.

Applications:

• DC power supplies
• Industrial equipment
• Solar power systems
• Inverter circuits
• AC to DC conversion circuits
