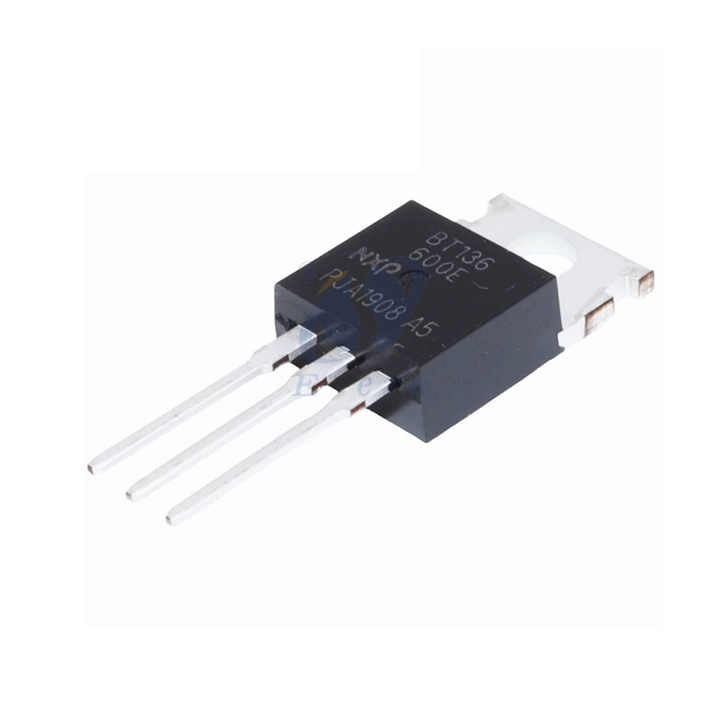

BT136 TRIAC (600V, 4A)

Description

BT136 TRIAC (600V, 4A)

The BT136 is a TRIAC (Triode for Alternating Current) used for controlling AC power. It is a highly versatile component designed to handle medium-power AC switching in a wide range of applications, such as light dimmers, motor controls, heating elements, and other AC-powered appliances.

Key Features of BT136 TRIAC (600V, 4A):

1. Voltage Rating (600V):
   • The BT136 has a maximum RMS voltage rating of 600V, meaning it can handle AC voltages up to 600V safely. This makes it suitable for most household and industrial AC circuits.
2. Current Rating (4A):
   • The BT136 is rated for a maximum RMS current of 4A, meaning it can handle up to 4 amps of continuous current. This makes it ideal for controlling small to medium power loads, such as lighting systems, small motors, or heating elements.
3. Package Type:
   • It comes in a TO-220 package, which provides good heat dissipation and allows for easy mounting on heatsinks when needed. This package is popular in power switching components because it facilitates efficient thermal management.
4. Gate Triggering:
   • The BT136 is a gate-triggered device, meaning it can be turned on by applying a small voltage to the gate. This allows for simple and low-power control of AC circuits, making it suitable for microcontroller-based applications.
5. Low Gate Trigger Current:
   • The BT136 TRIAC requires very low gate trigger current to switch on, making it easy to drive directly from microcontrollers or other logic-level devices.
6. Bidirectional Control:
   • As a TRIAC, the BT136 is capable of controlling both positive and negative half-cycles of an AC waveform. This allows it to be used in AC power switching without needing to distinguish between the direction of current flow.
7. Switching Speed:
   • The BT136 can switch at moderate speeds, making it suitable for applications like dimming, soft-start motor control, and AC power regulation.

Applications of BT136 TRIAC (600V, 4A):

1. Light Dimmers:
   • The BT136 is widely used in light dimmer circuits. By controlling the phase of the AC voltage supplied to the light bulb, the TRIAC can effectively adjust the brightness.
2. AC Motor Control:
   • It is commonly used in motor speed control circuits. The TRIAC can be used to control the amount of power delivered to the motor, allowing for variable speed operation.
3. Heating Element Control:
   • The BT136 is often used in temperature control circuits for devices like electric heaters or ovens, where it can switch the heating elements on and off to regulate temperature.
4. AC Power Regulation:
   • In power regulation circuits, the BT136 can be used to control the power flow to various appliances and electrical systems to protect components or achieve specific operational characteristics.
5. Solid-State Relays (SSR):
   • It is a common component in solid-state relays, where it is used to provide electrical isolation and AC load switching without the mechanical parts typically found in traditional relays.
6. Triac-based Phase Control:
   • The BT136 is often used in phase control circuits for controlling AC power. This is typical in systems requiring the control of power delivered to inductive loads, like motors, solenoids, or transformers.

Advantages of BT136 TRIAC (600V, 4A):

1. High Voltage Handling:
   • The 600V rating allows the BT136 to handle most common household and industrial AC voltages, making it versatile for different applications.
2. Bidirectional Switching:
   • The TRIAC can switch both positive and negative halves of an AC signal, eliminating the need for separate components to handle each half-cycle.
3. Low Trigger Current:
   • With a low gate trigger current, the BT136 can be directly controlled by low-power logic circuits, making it easy to interface with microcontrollers.
4. Fast Switching:
   • The TRIAC offers relatively fast switching times, which makes it suitable for applications that require precise control of power delivery, such as in dimming applications.
5. Compact Design:
   • The TO-220 package offers a compact form factor while still providing sufficient thermal dissipation for moderate-power applications.

Disadvantages of BT136 TRIAC (600V, 4A):

1. Limited Current Capacity:
   • The 4A current rating is suitable for small to medium power applications, but high-power circuits will require higher current ratings, and the BT136 may not be suitable for heavy-duty industrial applications.
2. Not Ideal for High-Frequency Switching:
   • While it is efficient for standard AC switching applications, the BT136 may not be suitable for high-frequency switching or high-speed PWM circuits, where other components like MOSFETs or IGBTs would be better suited.
3. Thermal Management:
   • Although it has good thermal dissipation in the TO-220 package, heatsinking may still be required for high-power applications. Overheating can lead to the device failing, so it is important to ensure proper cooling in high-current conditions.
