BT138 – TRIAC (600V – 12A)

Description

BT138 – TRIAC (12A, 600V)

The BT138 is a TRIAC (Triode for Alternating Current) designed for medium-power AC control applications. It is widely used in circuits where precise control of AC power is required, such as in lighting dimmers, fan speed controls, motor controllers, and heating elements. The BT138 is capable of handling up to 12A RMS of current and 600V of voltage, making it suitable for moderate-to-high power AC loads.

Key Features of BT138:

1. Voltage and Current Ratings:
   • Repetitive Peak Reverse Voltage (V_RRM): 600V
     • The BT138 can withstand 600V of reverse voltage, which is suitable for typical residential and industrial AC applications.
   • Average On-State Current (I_T(RMS)): 12A
     • The BT138 is designed to handle up to 12A RMS of continuous current, making it suitable for controlling medium-power AC loads.
2. Gate Triggering:
   • Gate Trigger Voltage (V_GTM): 1V to 2V
   • Gate Trigger Current (I_GTM): 5mA to 10mA
     • The BT138 is triggered by a relatively low gate voltage (1V to 2V) and a small gate current (5mA to 10mA), which makes it easy to interface with low-power control circuits like microcontrollers or logic devices.
3. Low On-State Voltage Drop:
   • The BT138 features a low on-state voltage drop, which helps to minimize power losses during conduction, improving the efficiency of the circuit.
4. Bidirectional Control:
   • Being a bidirectional TRIAC, the BT138 can conduct during both the positive and negative half-cycles of the AC waveform, making it suitable for controlling AC loads where alternating current is used.
5. Package Type:

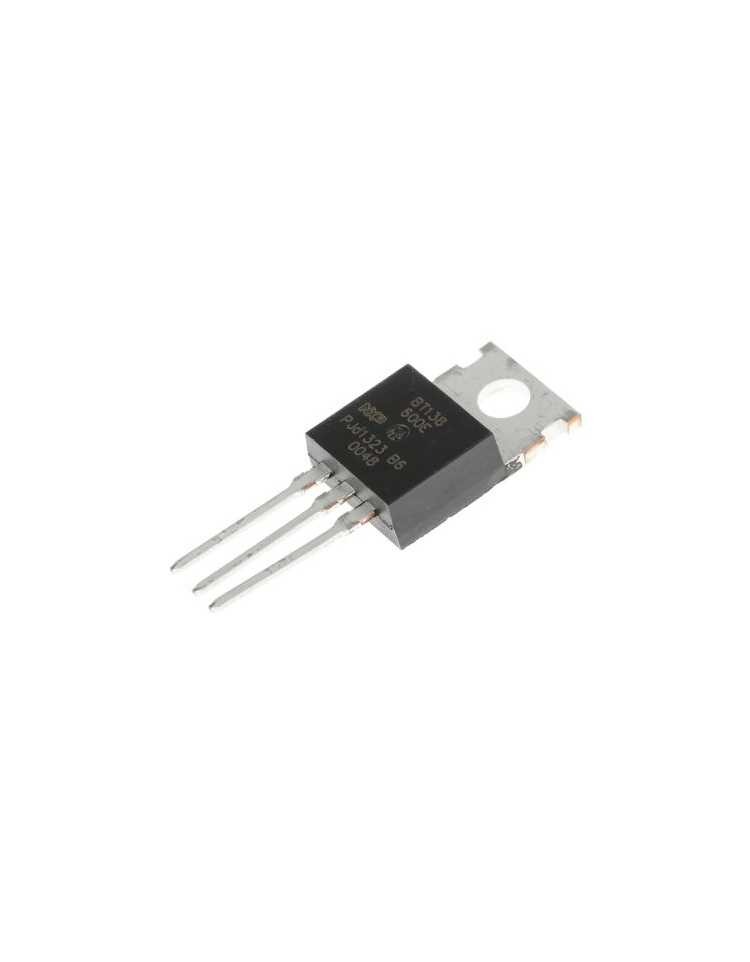

   • The BT138 typically comes in a TO-220 package, allowing it to be easily mounted on a heatsink for effective heat dissipation, especially in higher-power applications.

Applications of BT138:

1. AC Power Control:
   • The BT138 is commonly used in lighting dimmers, fan speed controls, and heating systems. By controlling the phase angle of the AC waveform, it adjusts the amount of power delivered to the load, providing control over brightness, speed, or temperature.
2. Solid-State Relays (SSR):
   • In solid-state relays, the BT138 can be used to switch AC loads on and off without mechanical contacts, providing faster, quieter, and more reliable operation compared to traditional mechanical relays.
3. Motor Speed Control:
   • The BT138 is used in motor control circuits to adjust the speed of AC motors. By controlling the power delivered to the motor, it allows for smooth and efficient speed adjustments.
4. Temperature Control:
   • The BT138 can be used in temperature control applications, such as regulating the power delivered to heating elements in appliances like ovens, water heaters, or industrial furnaces.
5. Phase Control Applications:
   • The BT138 is ideal for phase control applications, such as in inductive heating or controlling other types of AC equipment where precise timing of power delivery is necessary.

Advantages of BT138 TRIAC:

1. High Current and Voltage Ratings:
   • With a 12A RMS current rating and 600V peak voltage rating, the BT138 is well-suited for controlling medium-power AC loads, such as lighting, heating systems, and small motors.
2. Bidirectional Conduction:
   • The BT138 can conduct in both directions during each half-cycle of the AC waveform, making it an excellent choice for AC power control.
3. Low Gate Trigger Requirements:
   • The BT138 has low gate trigger voltage and current, which makes it easy to control using low-power logic or microcontroller-based circuits.
4. Efficient Power Switching:
   • Due to its low on-state voltage drop, the BT138 has efficient power switching characteristics, helping reduce power loss and improve overall circuit efficiency.
5. Durability and Reliability:
   • As a solid-state device, the BT138 has no moving parts, leading to a longer lifespan and more reliable operation compared to mechanical relays.
