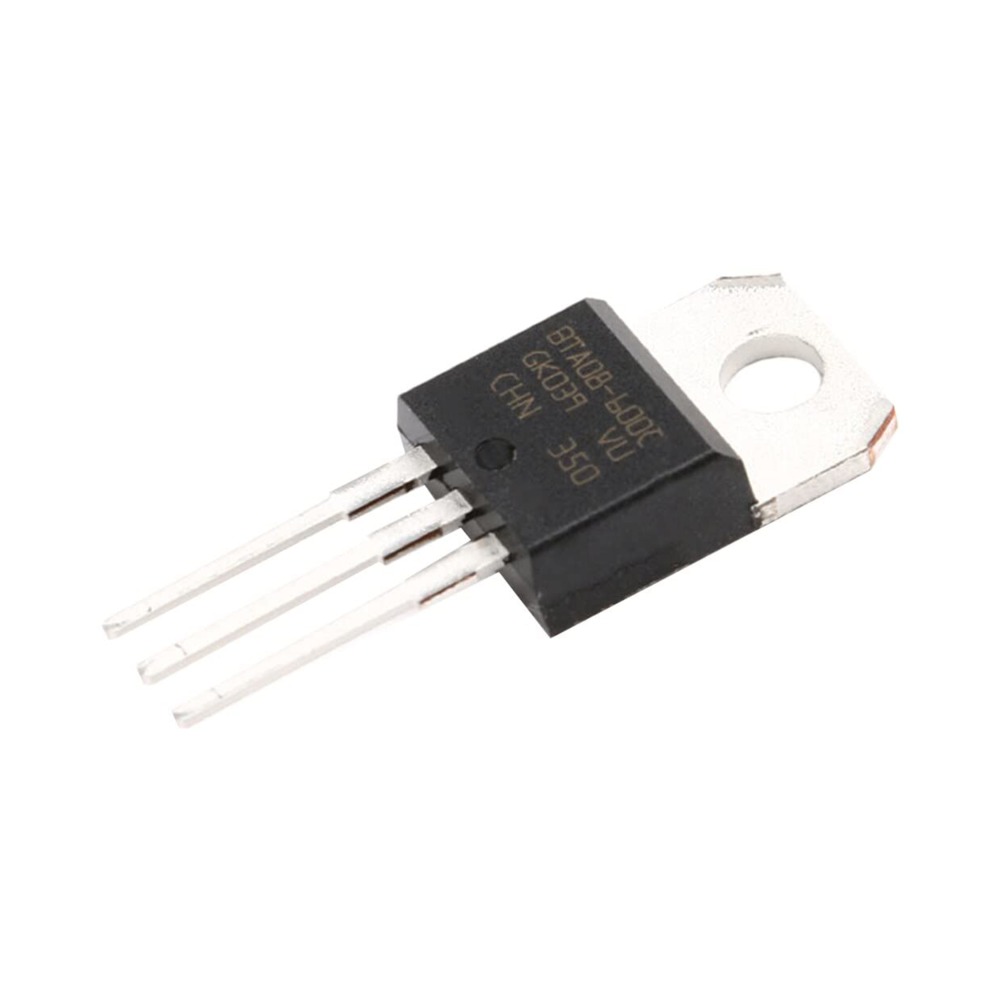

BTA08 - TRIAC (600V - 8A)

BTA08 - TRIAC (8A, 600V)

The BTA08 is a TRIAC (Triode for Alternating Current) that is commonly used for controlling AC power. It's part of a family of TRIACs designed for high-efficiency, reliable switching in a variety of AC control applications. The BTA08 TRIAC is designed for general-purpose use in medium-power applications, typically in the range of up to 8A at 600V.

Key Features of BTA08:

• Voltage and Current Ratings:Repetitive Peak Reverse Voltage (V_RRM): 600VThe V_RRM is the maximum reverse voltage the TRIAC can withstand without failure. In this case, the BTA08 can safely handle up to 600V.
• Average On-State Current (I_T(RMS)): 8AThe BTA08 can handle an average current of 8A RMS, making it suitable for medium-power AC switching applications.
• Gate Triggering:Gate Trigger Voltage (V_GTM): 1V to 2V.
• Gate Trigger Current (I_GTM): 5mA to 10mA.
• The BTA08 is triggered by a small voltage or current at the gate, allowing it to be controlled easily by low-power devices like microcontrollers.
• Low On-State Voltage Drop:The TRIAC has a relatively low on-state voltage drop, which helps minimize power losses when it is in the conducting state, improving the efficiency of the system.
• Bidirectional Control:The BTA08 is a bidirectional TRIAC, meaning it can conduct current during both the positive and negative half-cycles of the AC waveform. This makes it ideal for AC load control.
• Package Type:The BTA08 typically comes in a TO-220 or TO-218 package, designed for easy mounting on a heat sink to dissipate heat effectively during operation. This is essential when operating at higher currents.
