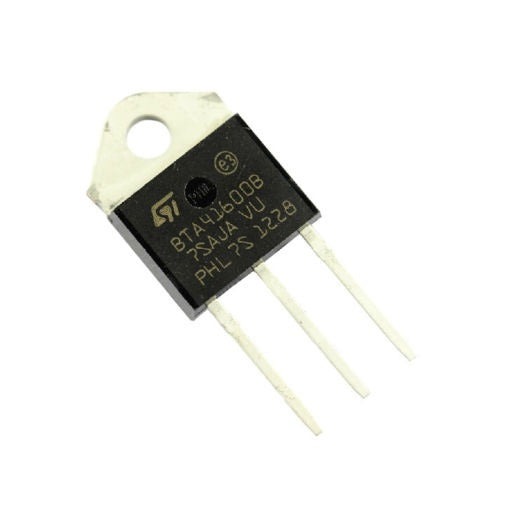

BTA41 - 600B TRIAC (600V - 40A)

BTA41 - TRIAC (40A, 600V)

The BTA41 is a TRIAC (Triode for Alternating Current) designed for controlling high-power AC loads. This component is part of a family of TRIACs developed to handle higher current levels, and it is ideal for switching applications such as motor control, lighting systems, heating systems, and solid-state relays (SSR). With a 40A RMS current rating and 600V peak voltage rating, the BTA41 is capable of handling demanding applications requiring efficient AC power control.

Key Features of BTA41:

• Voltage and Current Ratings:Repetitive Peak Reverse Voltage (V_RRM): 600VThe BTA41 can withstand 600V of reverse voltage, making it suitable for controlling moderate-to-high voltage AC circuits.
• Average On-State Current (I_T(RMS)): 40AThe BTA41 can handle 40A RMS of current, making it ideal for heavy-duty applications where high current control is needed.
• Gate Triggering:Gate Trigger Voltage (V_GTM): 1V to 2V
• Gate Trigger Current (I_GTM): 5mA to 10mA
• The BTA41 TRIAC can be triggered by a low gate voltage (1V to 2V) and a low gate current (5mA to 10mA), making it compatible with control systems such as microcontrollers or logic circuits.
• Low On-State Voltage Drop:The TRIAC has a low on-state voltage drop when conducting, which helps minimize power losses, improving energy efficiency.
• Bidirectional Control:As a bidirectional TRIAC, the BTA41 can conduct in both directions of the AC waveform (positive and negative half-cycles), which is essential for AC power switching.
• Package Type:Typically packaged in a TO-220 or TO-218 format, the BTA41 is designed to be mounted on a heatsink for effective heat dissipation during operation, especially in high-power applications.
