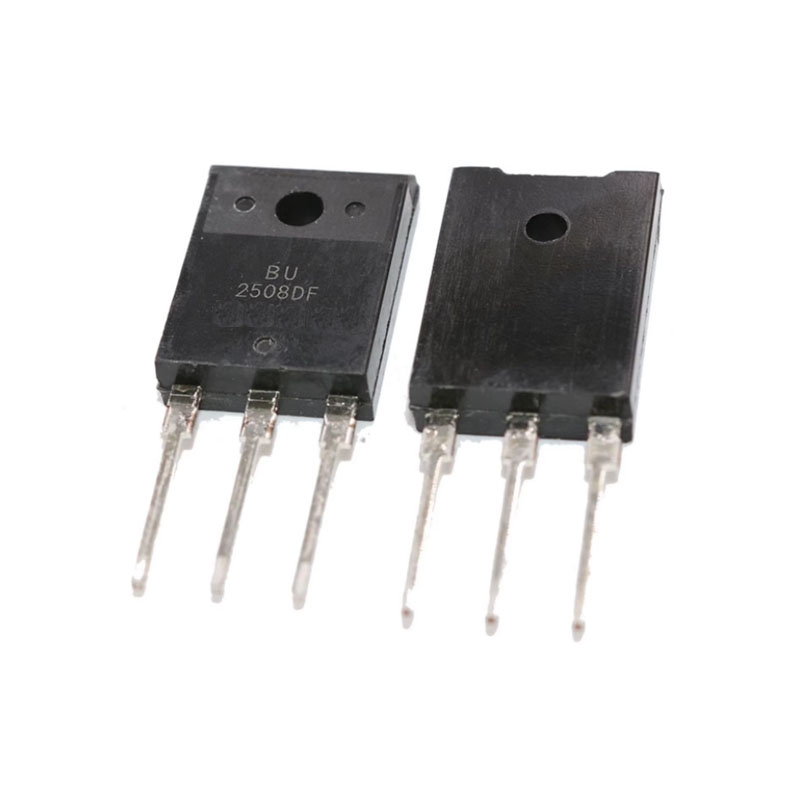

BU2508DF Power Transistor NPN (700V , 8A)

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BU2508DF

GENERAL DESCRIPTION
Enhanced performance, new generation, high-voltage, high-speed switching npn transistor with an integrated
damper diode in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour televisionreceivers.

Features :

Type Designator: BU2508DF
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 45 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 90 pF
Forward Current Transfer Ratio (hFE), MIN: 7
Package: SOT199
