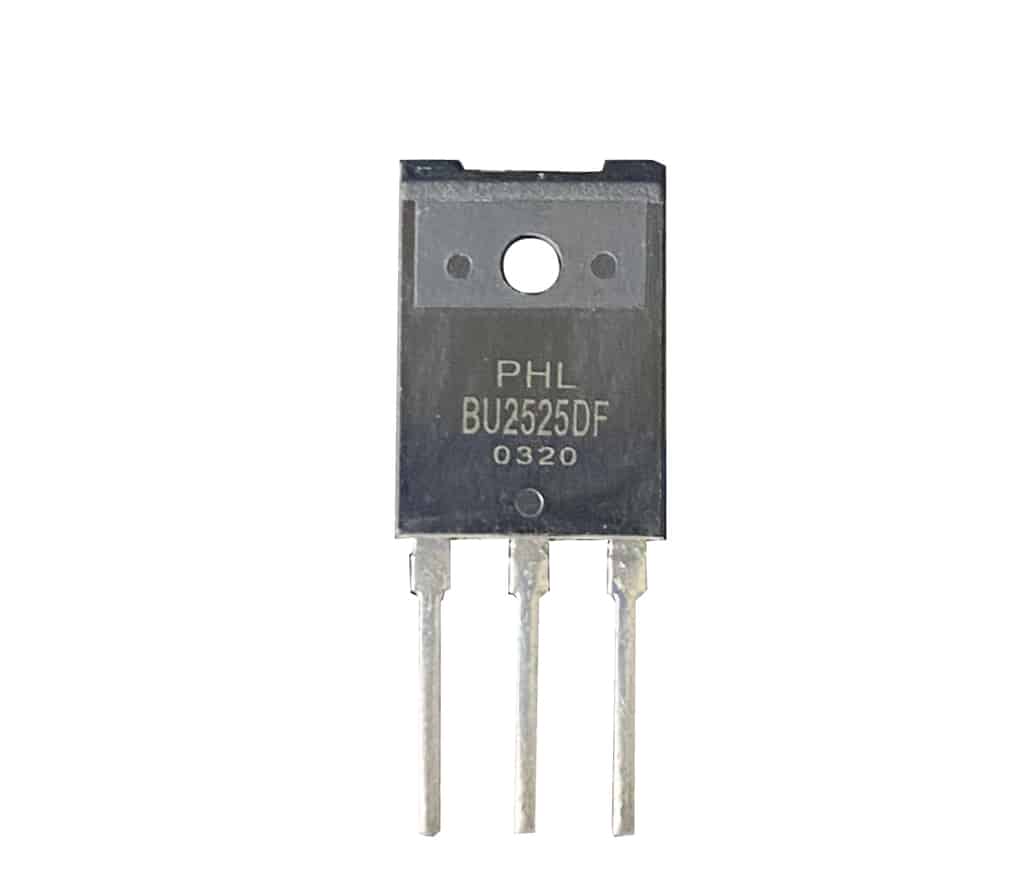

BU2525DF Power Transistor NPN (800V , 12A)

Philips Semiconductors Product specification

GENERAL DESCRIPTION
Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-packenvelope intended for use in horizontal deflection circuits of colour television receivers.

Features :

Type Designator: BU2525DF
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 45 W
Maximum Collector-Base Voltage |Vcb|: 800 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 13.5 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 145 pF
Forward Current Transfer Ratio (hFE), MIN: 11
Noise Figure, dB: -
Package: SOT199
