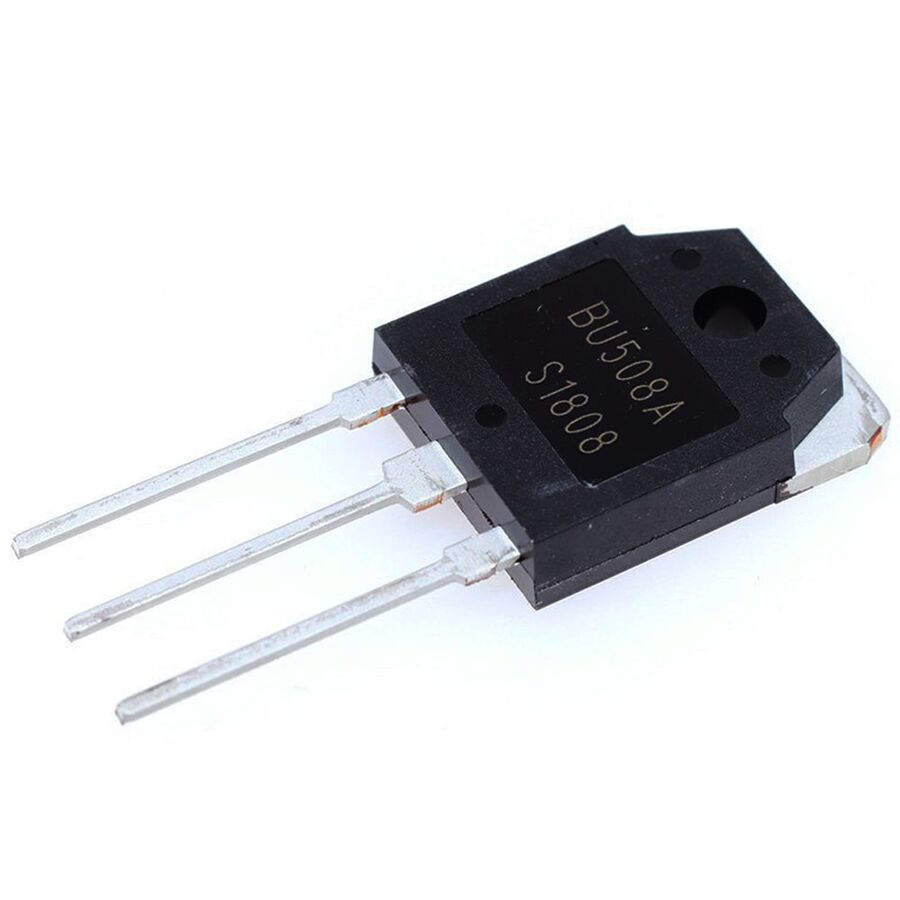

BU508A Power Transistor NPN (700V , 8A)

Description

Features :

Type Designator: BU508A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7 MHz
Collector Capacitance (Cc): 125 pF
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TOP3
