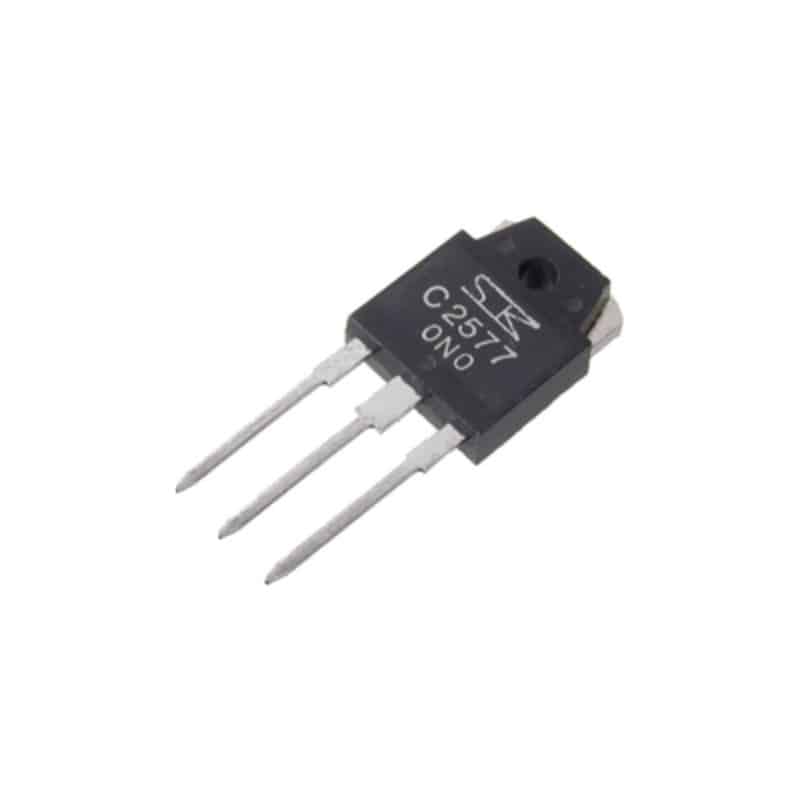

C2577 (2SC2577) Power Transistor NPN (120V , 6A)

Description

Features :

Type Designator: 2SC2577
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Collector Capacitance (Cc): 110 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: –
Package: TO218
