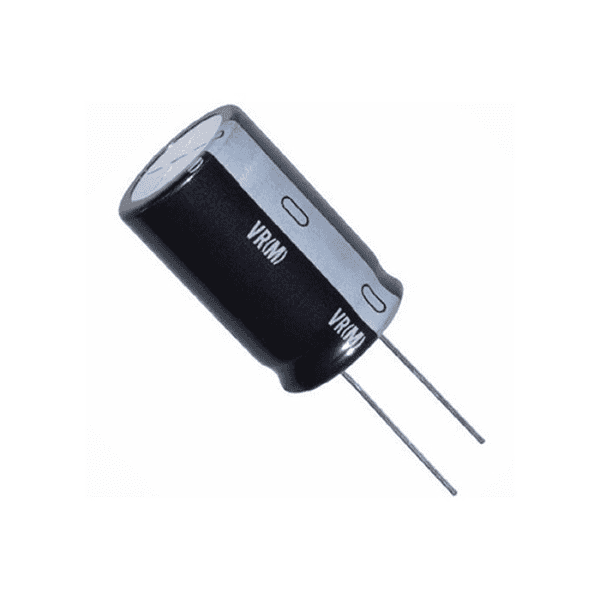

Capacitor 3300UF/25V

Description

3300µF/25V Electrolytic Capacitor

The 3300µF/25V is an electrolytic capacitor with a capacitance of 3300 microfarads (µF) and a voltage rating of 25 volts (V). Electrolytic capacitors are known for their large capacitance values relative to their size, making them ideal for bulk capacitance applications in power supply circuits, smoothing, filtering, and energy storage.

Key Features of 3300µF/25V Electrolytic Capacitor:

1. Capacitance (3300µF):
   • The 3300µF value means the capacitor can store 3300 microfarads of charge. This relatively large capacitance makes it suitable for use in applications requiring bulk energy storage, smoothing voltage ripple, or decoupling in power supplies.
2. Voltage Rating (25V):
   • The 25V rating indicates that the capacitor can safely handle a maximum applied voltage of 25V without damage or breakdown. It is important to ensure that the operating voltage in the circuit does not exceed this value, as doing so may cause the capacitor to fail or short-circuit.
3. Electrolytic Construction:
   • Electrolytic capacitors are polarized, meaning they have a positive and a negative terminal. Polarity must be observed when connecting the capacitor, as reversing the polarity could damage the capacitor or cause it to fail.
4. High Capacitance in Compact Size:
   • Electrolytic capacitors like this 3300µF/25V provide high capacitance in a relatively compact form factor compared to other types of capacitors, such as ceramic or film capacitors. This makes them ideal for applications where large capacitance values are needed without taking up too much space.
5. High Ripple Current Handling:
   • Electrolytic capacitors are designed to handle significant AC ripple current without excessive heating, making them suitable for power supply filtering, motor drives, and other circuits where the capacitor must deal with a fluctuating load.
6. Temperature Range:
   • Typically, electrolytic capacitors have a temperature range of around -40°C to +85°C, though this can vary depending on the specific manufacturer and product series. It’s essential to verify the temperature tolerance in the datasheet when using in extreme environments.

Applications of 3300µF/25V Electrolytic Capacitor:

1. Power Supply Filtering:
   • Electrolytic capacitors are often used in power supply circuits to smooth out ripple voltages after rectification. The 3300µF value is particularly useful in low to medium-power DC supplies, providing stable and filtered DC output.
2. Decoupling and Bypass:
   • Used for decoupling in electronic circuits, these capacitors can provide local energy storage for ICs and prevent noise and voltage dips caused by transient currents in power lines.
3. Energy Storage:
   • In circuits that require quick bursts of energy (such as in flash circuits or pulse power systems), this capacitor can store and release energy quickly due to its relatively high capacitance.
4. Audio and Amplifier Circuits:
   • 3300µF capacitors are commonly used in audio amplifiers to provide the necessary filtering and energy storage to smooth power supplies and maintain signal integrity.
5. Signal Coupling/Decoupling:
   • These capacitors are used in signal coupling and decoupling applications where stable DC biasing and AC signal transmission are required.
6. Inverter Circuits:
   • The 3300µF/25V capacitor can be used in inverter circuits to smooth the DC to AC conversion, ensuring efficient power conversion in solar power systems or UPS (Uninterruptible Power Supply).
7. Motor and Power Drive Circuits:
   • Due to their ability to handle significant ripple current, electrolytic capacitors are often used in DC motor controllers, motor drives, and inverter circuits where high current is involved.

Advantages of 3300µF/25V Electrolytic Capacitor:

1. High Capacitance in a Compact Size:
   • The 3300µF capacitance provides significant energy storage in a relatively small package, compared to non-electrolytic capacitors like ceramic capacitors.
2. Cost-Effective:
   • Electrolytic capacitors are typically more cost-effective than other types of capacitors with similar capacitance ratings, making them a popular choice for power electronics.
3. Effective Ripple Filtering:
   • These capacitors are particularly effective in filtering high-frequency ripple from DC power supplies and other circuits with fluctuating voltage or current, ensuring a smooth and stable output.
4. High Current Handling:
   • Electrolytic capacitors can handle large ripple currents, making them ideal for use in power circuits with varying loads and voltage levels.
5. Wide Availability:
   • Electrolytic capacitors are readily available in a wide variety of capacitance and voltage ratings, ensuring there are many options for specific applications.
