D613 (2SD613) Power Transistor NPN (100V , 6A)

Description

Features :

Type Designator: 2SD613
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 85 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 15 MHz
Collector Capacitance (Cc): 110 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: –

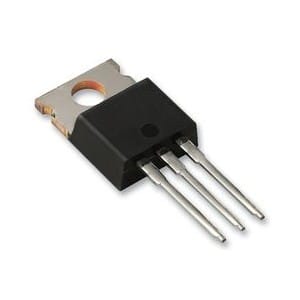

Package: TO220
