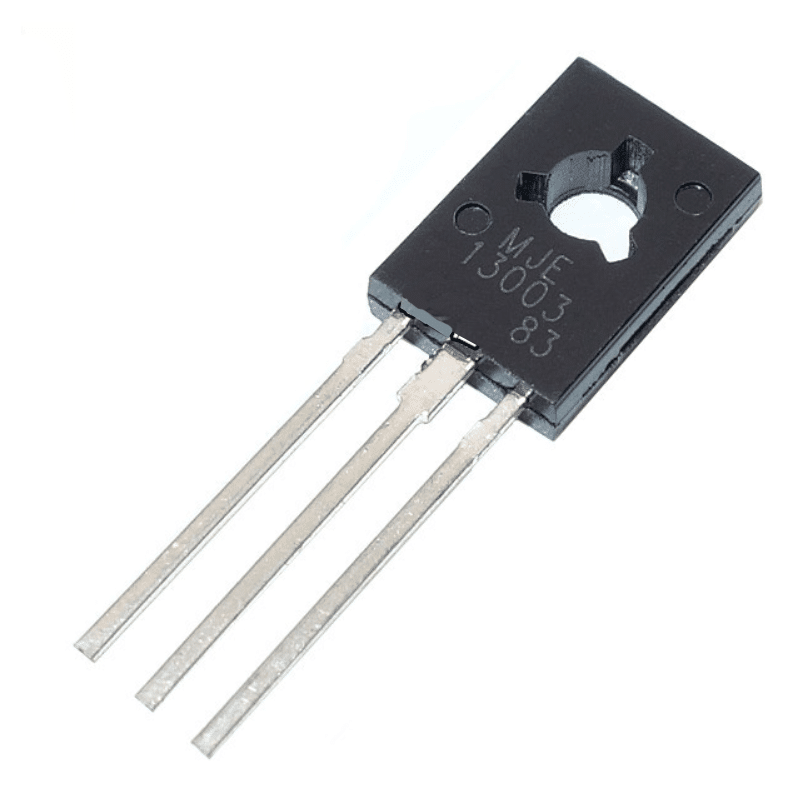

MJE13003 NPN power transistor (400V , 1.5A)

Description

The MJE13003 is an NPN power transistor designed for high-voltage applications. It is typically used in switching, amplification, and other power-related circuits. Below is a detailed overview of the MJE13003 transistor:

MJE13003 NPN Transistor Overview:

• Type: NPN Power Transistor.
• Package: TO-220 (a common package for power transistors, allowing for efficient heat dissipation).
• Voltage Rating: 400V (collector-emitter voltage, V_CEO).
• Current Rating: 1.5A (collector current, I_C).
• Power Dissipation: Can handle up to 80W of power dissipation, depending on the specific conditions.

Key Features:

1. High Voltage Rating:
   • With a collector-emitter voltage (V_CEO) rating of 400V, the MJE13003 is suitable for applications requiring a transistor to handle high voltage.
2. High Current Rating:
   • The transistor can handle a maximum collector current (I_C) of 1.5A, making it suitable for medium-power applications.
3. Power Dissipation:
   • The MJE13003 can dissipate up to 80W of power, which is important for switching and driving power loads.
4. Switching Speed:
   • It has a relatively slow switching speed, but this is typical for power transistors that deal with high voltages and currents.
5. Package Type:
   • The TO-220 package provides good thermal performance, enabling the transistor to dissipate heat efficiently, especially when handling high currents and voltages.
6. Safety and Durability:
   • This transistor is designed with high safety and durability in mind, making it a reliable component in various power control and amplification applications.

Applications:

The MJE13003 is widely used in power electronics for controlling medium to high-power loads. Here are some common uses:

1. Switching Power Supplies:
   • Used in high-voltage DC-DC converters and AC-DC power supplies for efficient switching of electrical energy.
2. Motor Control:
   • It can be used to switch power to motors in industrial equipment, automotive, and home appliances, where higher current and voltage are required.
3. Audio Amplifiers:
   • This transistor is often used in audio power amplifiers for delivering the necessary current to drive loudspeakers.
4. Relays and Solenoids:
   • Used to control electromechanical relays or solenoids, enabling automation and remote control of mechanical devices.
5. Lighting Control:
   • It can be used in lighting circuits, especially in systems where high-voltage switching is needed for controlling light bulbs or other lighting equipment.
6. Automotive Circuits:
   • The MJE13003 is used in automotive electronics, such as light controllers, fan control, or power management systems.

Specifications:

Advantages:

• High Voltage Handling: The 400V collector-emitter voltage rating makes this transistor suitable for high-voltage applications.
• Efficient Heat Dissipation: The TO-220 package ensures the transistor can handle higher power dissipation, important in power-switching applications.
• Versatile: With a current rating of 1.5A, this transistor can be used in a wide variety of applications, from motor control to power supplies.

Disadvantages:

• Slow Switching Speed: Power transistors like the MJE13003 typically have slower switching speeds compared to low-power transistors, which may make them less suitable for high-speed switching applications.
• Power Loss: In some applications, high power dissipation may lead to thermal management issues. Proper heat sinking and cooling solutions are essential to avoid overheating.
• Size: The TO-220 package might not be suitable for designs that require very compact or surface-mount components.

How to Use the MJE13003 Transistor:

1. Biasing the Transistor:
   • Ensure proper biasing for the base-emitter junction. The base current controls the transistor’s operation. A resistor is typically placed in series with the base to limit current.
2. Heat Management:
   • Since the MJE13003 can dissipate a significant amount of power, use a heat sink to manage thermal conditions, especially if the transistor will be operating near its power dissipation limit.
3. Applications:
   • In switching applications, the transistor can be driven by a control signal to switch AC or DC loads. It will switch on when enough current is supplied to the base and turn off when the base current is removed.
4. Circuit Design:
   • For high-power switching applications, the MJE13003 should be connected with the emitter to ground, the collector to the load, and the base to the control signal through a current-limiting resistor.
