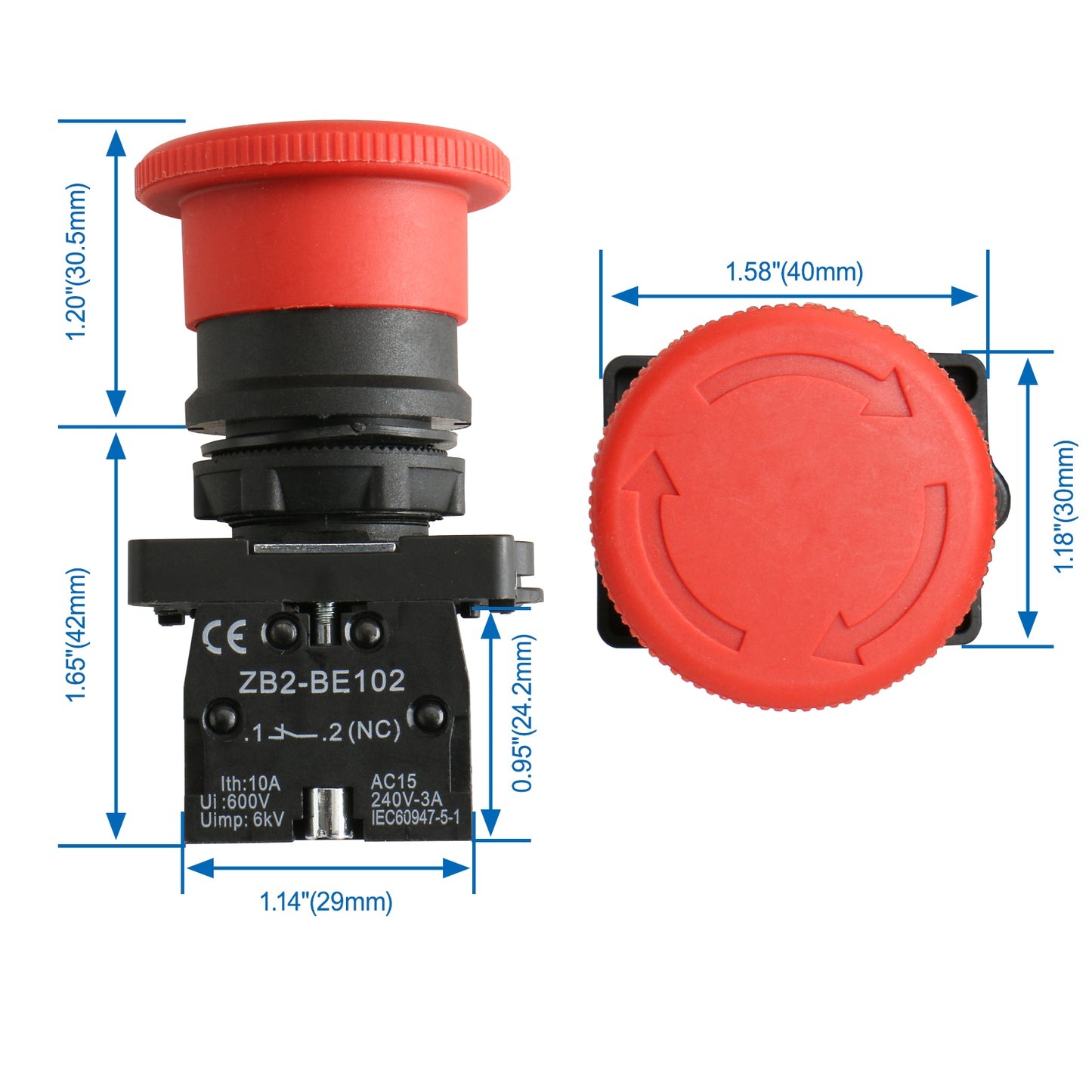

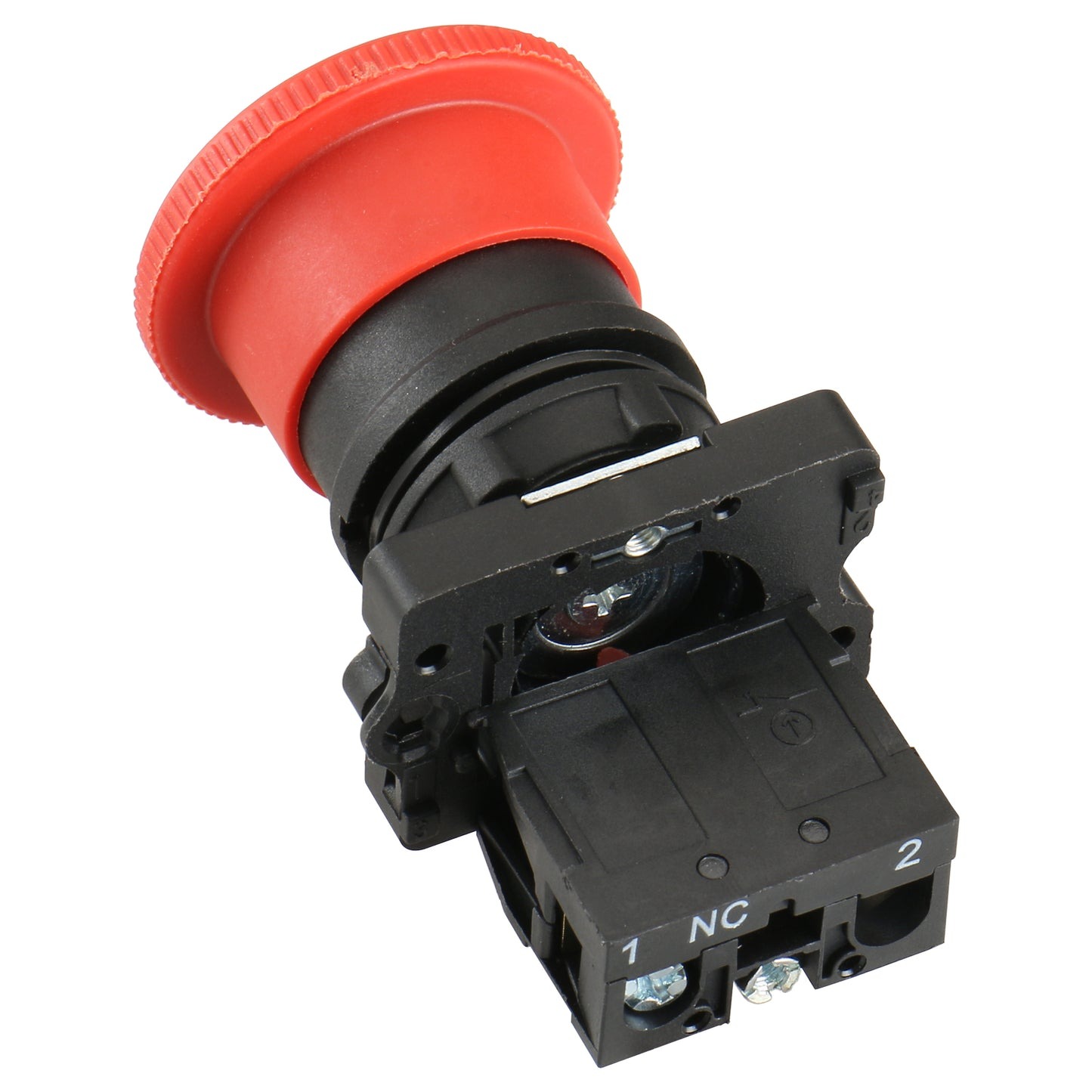

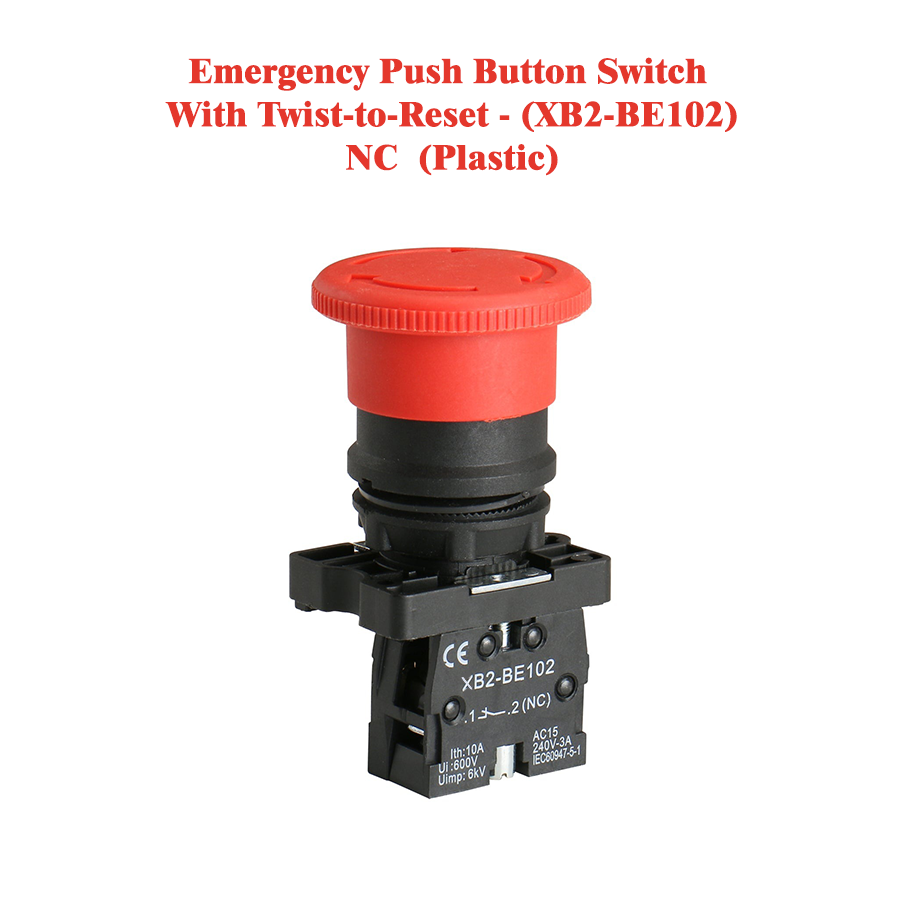

Emergency Push Button Switch With Twist-to-Reset - (XB2-BE102) NC (Plastic)

Name Rotating reset emergency stop button

Type specification XB2-BE102

Rated insulated Voltage 600V

Rated impulse withstand voltage 6kV

Stipulated hot current Ith 10A

Use category AC-15 DC-13

Rated voltage AC 240/380 V DC 125/250 V

Rated Current 3/1.9 A 0.55/0.27 A

Rated frequency 50/60Hz

Contact resistance ≤50mΩ

Insulated resistance ≥50MΩ

Environment temperature -25~70℃

Storage temperature -40~70℃

Relative humidity ≤90%

Electrical life AC More than 100 thousand times

Mechanical life 300 thousand times

Operation type Latching

Head shape mushroom

Crust material plastic

Contact material Silver alloy

Mounting hole size 22mm
