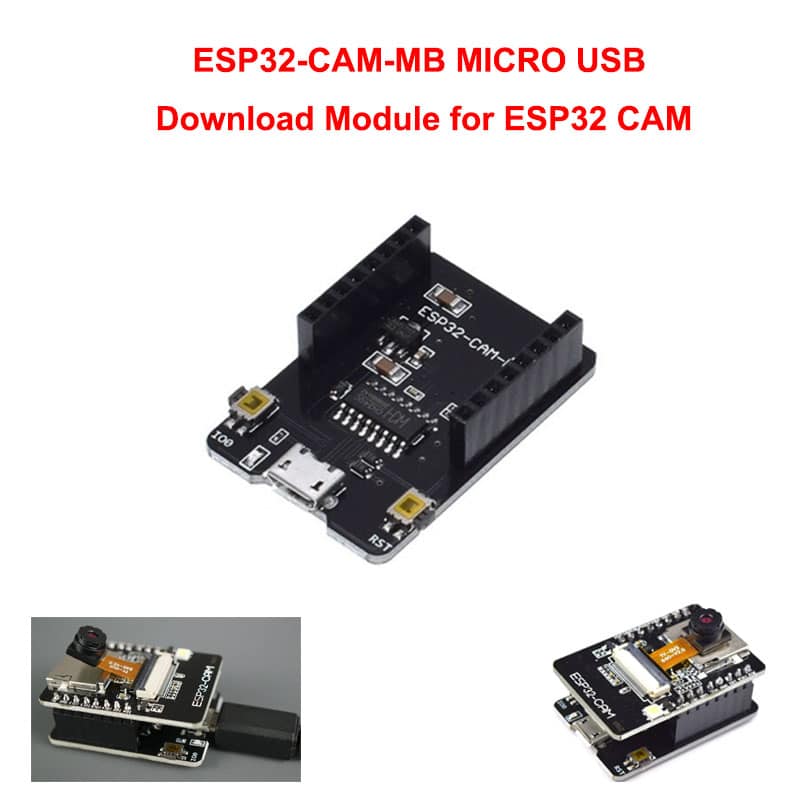

ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM

The ESP32-CAM-MB module can operate independently as the smallest system。A new WIFI + Bluetooth dual-mode development board based on ESP32 design using built-in PCB antenna，with 2 high-performance 32-bit LX6CPUs，using 7-level pipeline architecture，main frequency adjustment range from 80MHz to 240Mhz. Ultra-low power consumption，deep sleep current is as low as 6mA .It is an ultra-small WI-FI + BT / BLE SOC module. ESP32-CAM-MB adopts a Micro USB interface，a convenient and reliable convenient connection method to be applied to various terminal IoT hardware.

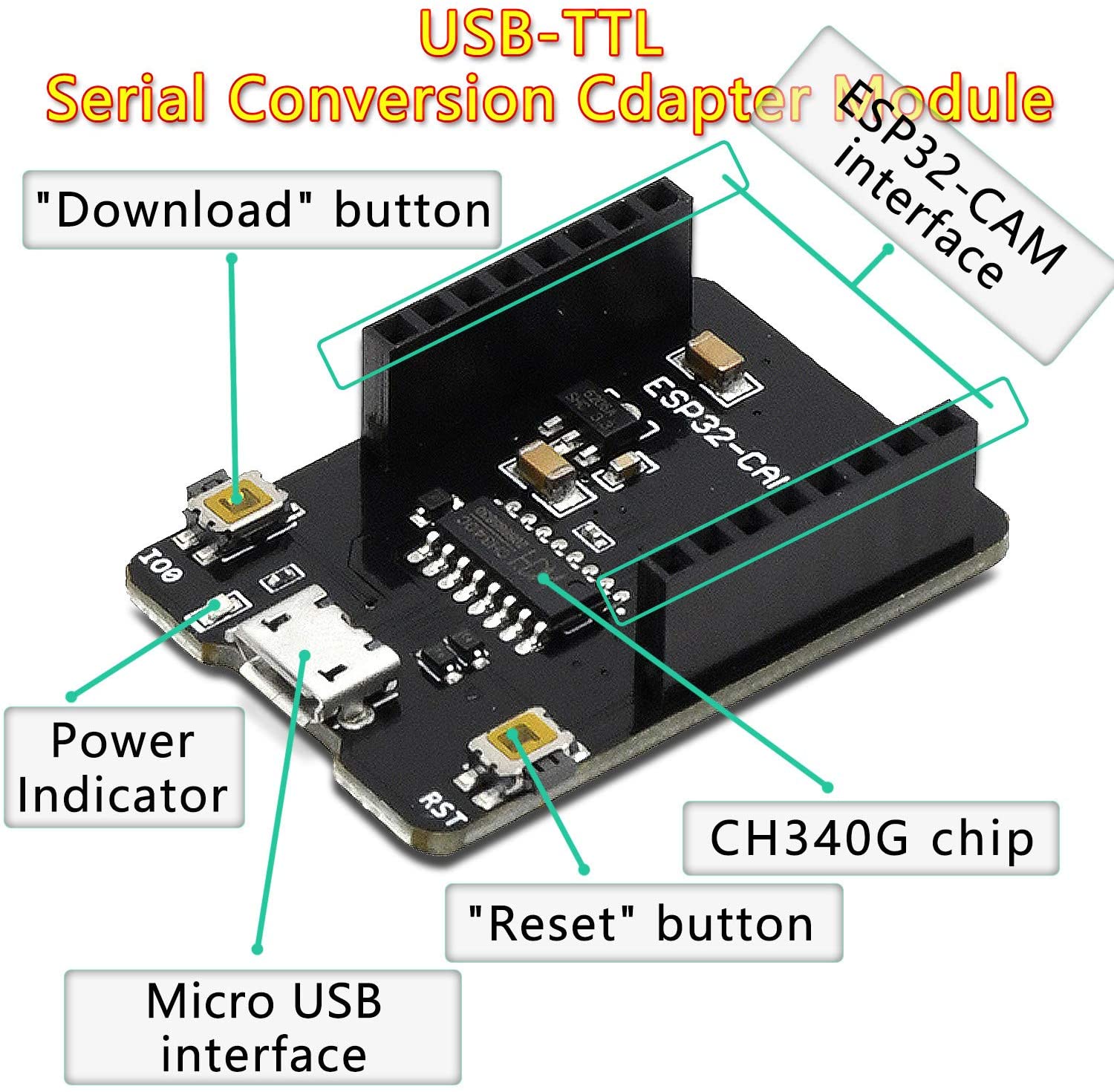

Features And Specifications Of ESP32-CAM-MB + Micro USB Programmer-CH340G Serial Chip：

•Operating voltage 4.75-5.25V

•SPIRash default 32mbit

•Internal RAM 520 kb + external＆mb PSRAM

•WiFi/e/I

•Bluetooth 42BR / EDR and BLE standard

•Interface support（2 Mbit / S) UART。SPL 12C PWM

•Support TF card，maximum support 4G

•Spectrum range 2400-2483.5MHz

Antenna shape Built-in PCB antenna，gain 2dBi

image output format：JPEG only supported OV2640 ,BMP, grayscale

Packing method DIP-16

Applications：

•Home Automation

•Wireless monitoring

•Wireless QR recognition

•Wireless positioning system signal
