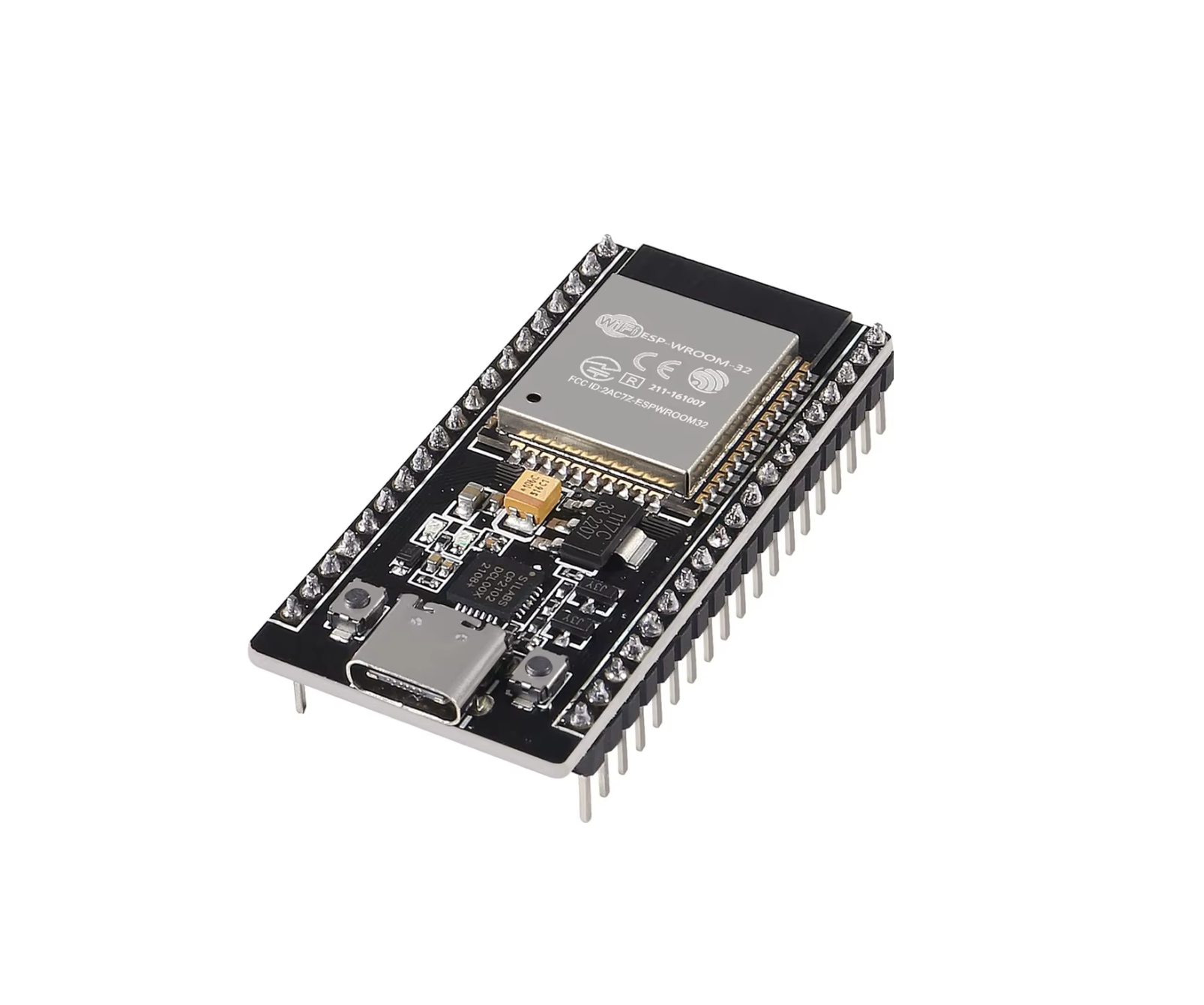

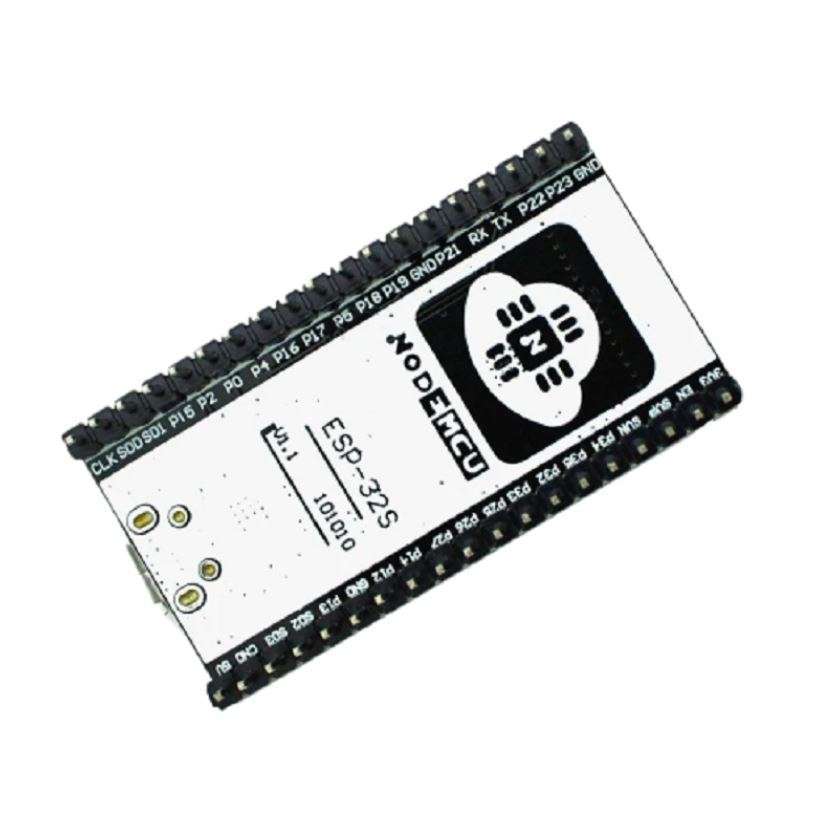

ESP32 (Type-C) Development Board (WIFI and Bluetooth) CP2102

Description Controller ESP32 WiFi + Bluetooth Type-C CP2102

Wi-Fi + Bluetooth module ESP32S is a modern line of WiFi modules, the continuation of the ESP8266 WiFi module that has established itself in the market as an IoT Internet of Things module. This module has absorbed all the best from the previous version and is supplemented with new features.

ESP32S Specifications:

Processor: Xtensa® 32-bit LX6 Dua-core

Processor performance: up to 600 DMIPS

ROM: 448 KByte

SRAM: 520 KByte

SRAM in RTC: 16 KByte

Supply voltage: 2.2V .. 3.6V

Antenna: built-in

Size: 25.5 x 18 mm

WiFi:

• 802.11b/g/n/e/i

• 802.11n (2.4 GHz), up to 150 Mbps

• 802.11e: QoS for wireless media devices

Bluetooth:

• compatible with Bluetooth v4.2 BR/EDR and BLE specifications

• Class-1, Class-2 and Class-3 transmitter without external power amplifier

Clock and timer:

• internal 8 MHz oscillator with calibration

• internal RC generator

• external 2 MHz to 40 MHz quartz resonator

• external 32 kHz crystal oscillator for RTC with calibration

• two timers, including 2 x 64-bit timers and 1 x watchdog

Interfaces:

• 12-bit ADC SAR

• 2 x 8-bit DAC

• 4 x SPI

• 2 x I2S

• 2 x I2C

• 3 x UART

CAN 2.0

• 1 x Host SD / eMMC / SDIO

• 1 x SDIO/SPI slave

Ethernet with dedicated DMA, IEEE 1588 support

IR (TX/RX)

PWM
