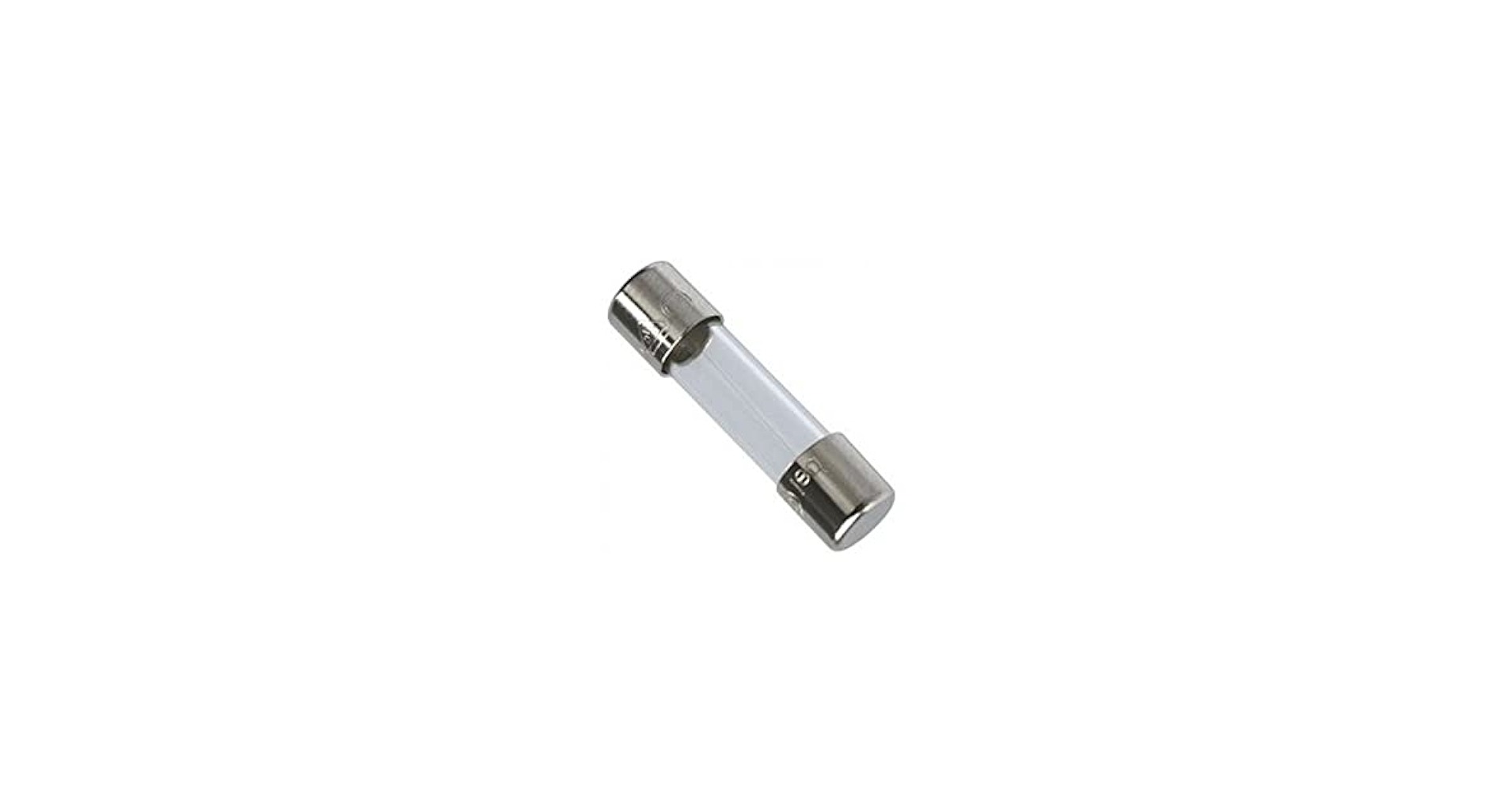

Glass Fuse 20A – 250V (Size T5x20mm)

Description

Glass Fuse 20A – 250V (T5x20mm)

Product Datasheet

📌 General Description

The Glass Fuse 20A – 250V (T5x20mm) is a protective component designed to safeguard electronic circuits against overcurrent conditions. With a 20-ampere rating, it is ideal for high-current applications where circuit protection is essential. This fuse features a clear glass body for visual inspection, making it easy to identify when the fuse has blown.

⚙️ Specifications

Note: Glass fuses in this size and rating are available in both Fast Blow (F) and Time-Delay (T) variants. Choose based on application needs.

🧪 Key Features

• 20A current rating for higher-load protection
• Voltage protection up to 250V AC/DC
• Standard T5x20mm size for easy integration
• Clear glass body for fast visual inspection
• Option for fast-acting or time-delay response

🛠️ Applications

• Home Appliances: AC units, refrigerators, washing machines
• Power Equipment: UPS systems, power inverters
• Industrial: Motor controls, automation equipment
• Automotive: High-current circuits in vehicle electronics
• Electronics: Power adapters, large chargers

🧯 How It Works

• Normal Condition: Current flows through metal filament.
• Overcurrent Condition: Filament melts once current exceeds 20A.
• Failure Indication: Broken filament visible through glass body.

✅ Advantages

• High current capacity in a compact size
• Easy visual status check
• Available in both fast and slow-blow types
• Cost-effective protection
