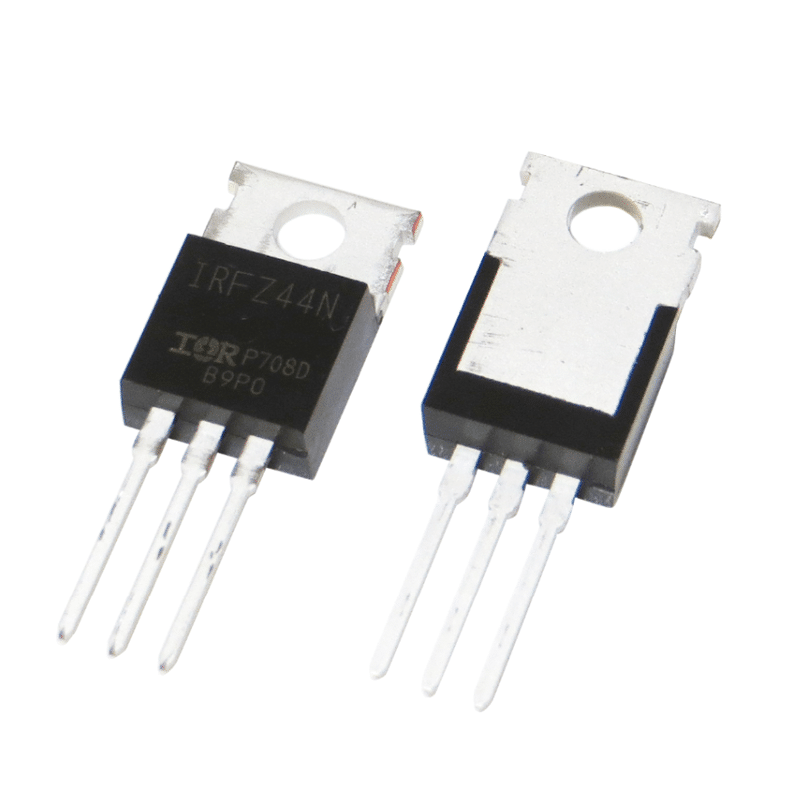

IRFZ44N – N-Channel Power MOSFET (55V, 49A)

Great pick! The IRFZ44N is a powerful N-channel MOSFET — widely used in power electronics, especially in switching power supplies, motor control, and DC-DC converters. It’s known for its high current capacity and low RDS(on).

⚡ IRFZ44N – N-Channel Power MOSFET

(TO-220 Package, 55V, 49A)

📌 General Description

The IRFZ44N is an N-channel enhancement-mode power MOSFET designed for high-speed switching applications. It has a very low on-resistance (RDS(on)), high current handling (up to 49A), and is capable of operating at voltages up to 55V. It’s typically used in low-voltage, high-current applications such as power supplies, inverters, H-bridges, and PWM motor drivers.

⚙️ Key Specifications

Parameter Value Type N-Channel Power MOSFET Drain-to-Source Voltage (VDS) 55V Continuous Drain Current (ID) 49A @ 25°C Pulsed Drain Current (ID,pulse) 160A Gate Threshold Voltage (VGS(th)) 2.0V – 4.0V Gate-to-Source Voltage (VGS) ±20V RDS(on) (Max) 0.022Ω @ VGS = 10V Total Gate Charge (Qg) 67nC (typical) Power Dissipation 94W Package TO-220 Mounting Through-hole 📦 Package – TO-220 Pinout

       _______
      |       |
Gate | 1     | Drain (Tab)
Source | 2   |
      | 3     |
      ---------

Pin Name Description 1 Gate Controls switching 2 Drain Load connection 3 Source Ground/reference Tab Drain (Connected to heatsink if needed) 🧪 Key Features

• High-speed switching
• Low gate drive requirements
• Low on-resistance (RDS(on))
• High current capability
• Easily driven by 5V/10V logic (good for Arduino/PWM)
• Rugged TO-220 package

🛠️ Typical Applications

• Motor drivers (PWM or H-Bridge)
• DC-DC converters (buck/boost)
• Power switching circuits
• Inverters and UPS systems
• Battery management
• Load switches and protection circuits

⚙️ Example Use Case:

If you're using it as a low-side switch, here's how you’d wire it:

• Drain → Negative terminal of the load
• Source → GND
• Gate → Microcontroller / driver pin (with 10Ω resistor)
• Add a pull-down resistor (10kΩ) from Gate to GND to prevent floating gate.

✅ Advantages

• High power handling
• Works well with microcontroller logic (at 10V gate drive)
• Readily available and inexpensive

⚠️ Cautions

• Needs sufficient gate voltage (preferably 10V for full saturation)
• Gate must be protected from overvoltage (±20V max)
• May require heatsink if switching high current continuously

🔧 Quick Comparison

Feature IRFZ44N IRLZ44N Gate Drive 10V Logic level (5V ok) Max Current 49A 47A Ideal for... Power switching Microcontroller direct drive If you're working with Arduino or 3.3V/5V logic, IRLZ44N might be a better drop-in.
