ISC1530AC1

ISA1530AC1 ISA1603AM1 is super mini package resin sealed silicon PNP epitaxial type transistor.

These are designed for low frequency voltage amplify application

FEATURE:

Excellent linearity of DC forward current gain.

Small collector to emitter saturation voltage VCE(sat)=-0.3Vmax

Type Designator: ISC1530AC1 SMD Transistor Code: TR

Material of Transistor: Si Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.2 W

Maximum Collector-Base Voltage |Vcb|: -60 V

Maximum Collector Current |Ic max|: -0.15 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 200 MHz

Forward Current Transfer Ratio (hFE), MIN: 70 Noise Figure, dB: -

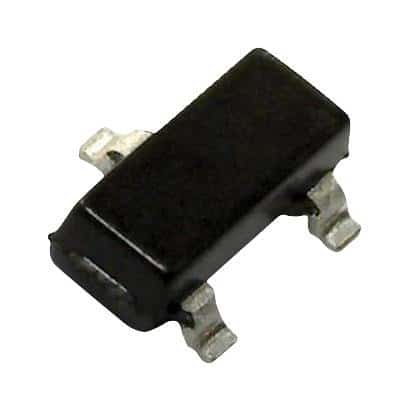

Package: SC-59 Datasheet: https://www.alldatasheet.com/datasheet-pdf/view/238559/ISAHAYA/ISA1530AC1.html
