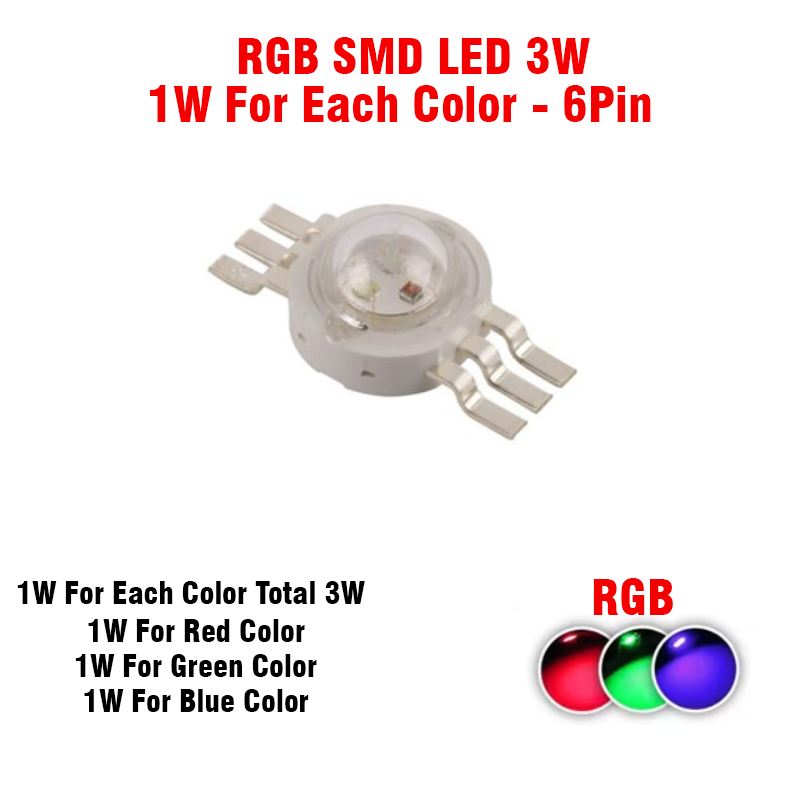

LED RGB SMD 3W - 1W For Each Color - 6Pin

The RGB 3W 6-Pin SMD LED is a high-intensity light source containing three independent LED chips (Red, Green, and Blue) in a single package. Each color channel is typically rated for 1W, allowing for independent control and precise color mixing when used with a microcontroller like an Arduino.

Key Specifications

• Forward Voltage (Vf):
• Red: 2.0V – 2.6V.
• Green: 3.2V – 3.8V.
• Blue: 3.2V – 3.8V.
• Forward Current (If): Typically 350mA per color for a standard 3W total rating, though some "high-drive" variants can handle up to 700mA per color.
• Luminous Flux (Brightness):
• Red: 25–40 Lumens.
• Green: 40–90 Lumens.
• Blue: 15–35 Lumens.
• Wavelength: Red (620-630nm), Green (520-530nm), Blue (460-470nm).

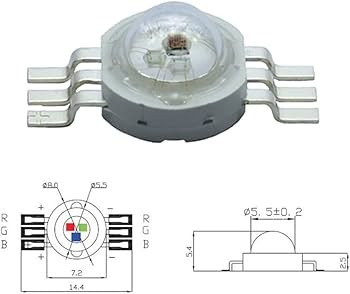

• Pinout: The 6-pin layout
