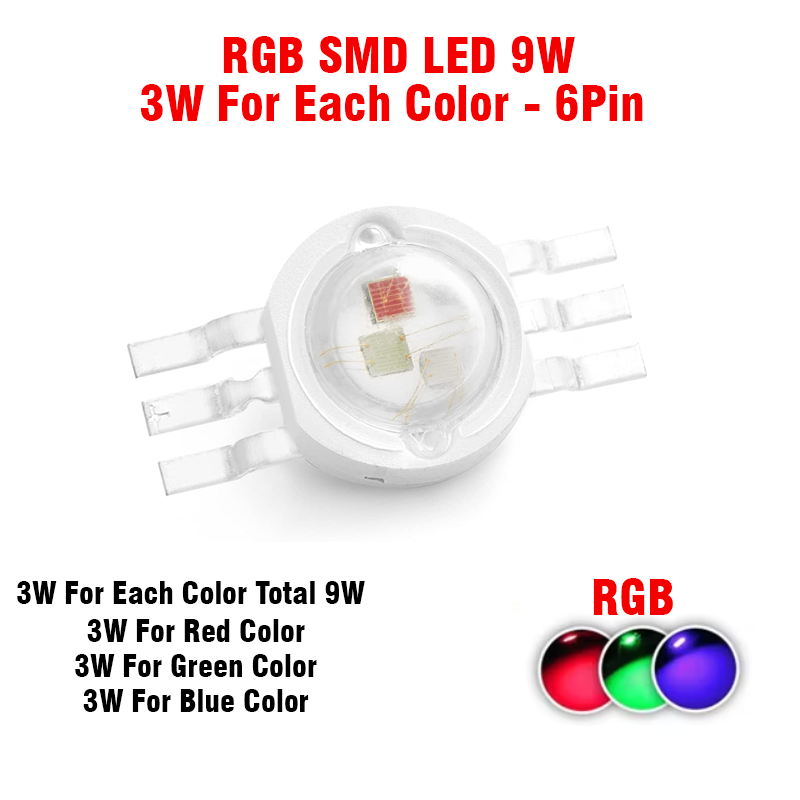

LED RGB SMD 9W - 3W For Each Color - 6Pin

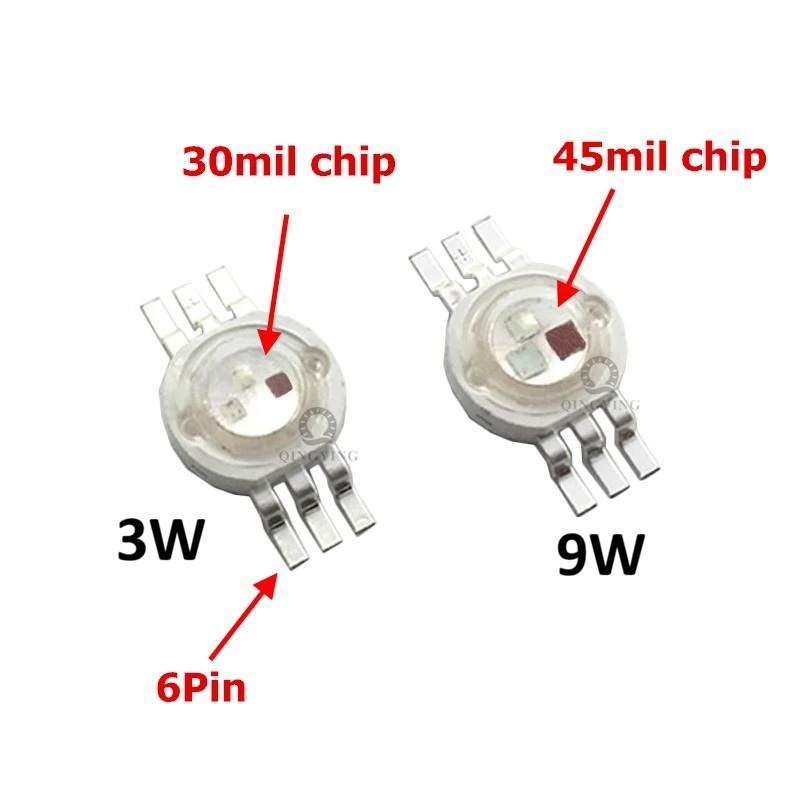

The RGB 9W 6-Pin SMD LED is an ultra-high-intensity light source featuring three distinct color chips (Red, Green, and Blue), each rated for 3W of power. This configuration allows for the creation of millions of colors through Pulse Width Modulation (PWM) and provides enough brightness for stage lighting, outdoor architectural accents, and professional photography.

Key Specifications

9W RGB LEDs typically follow these technical parameters:

• Forward Voltage (Vf) and Current (If):
• Red: Typically 2.0V – 2.8V at 700mA. Some specialized emitters with serial internal chips may require up to 7.5V.
• Green: Typically 3.0V – 3.6V at 700mA.
• Blue: Typically 3.0V – 3.6V at 700mA.
• Luminous Flux: Produces approximately 150 to 300 lumens total when all three channels are fully powered.
• Viewing Angle: Standard broad dispersion of 120° to 140°.

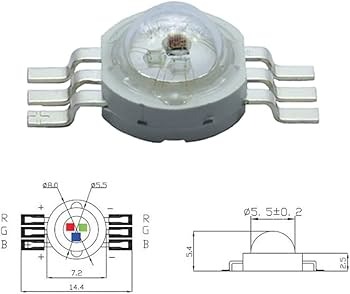

• Pinout: 6-pin design with 3 anodes and 3 cathodes, ensuring each color channel is electrically isolated for precise control.

Heatsink: Often comes pre-mounted on a 20mm aluminum PCB, though it still requires significant additional cooling for 9W operation.
