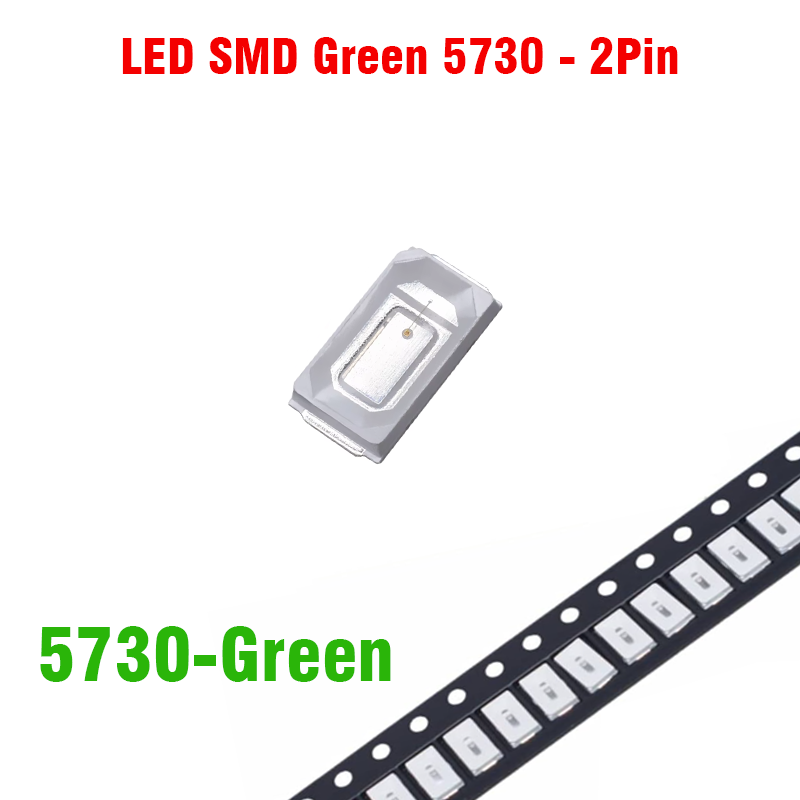

LED SMD Green 5730 - 2Pin

The Green 5730 SMD LED

is a high-performance surface-mount diode measuring 5.7mm x 3.0mm. Known for superior brightness and efficient heat dissipation, these LEDs are typically rated at 0.5W and are widely used in high-output lighting systems such as LED strips, automotive signals, and decorative lighting.

Technical Specifications

• Forward Voltage (Vf): Typically ranges from 3.0V to 3.4V DC.
• Forward Current (If): Standard drive current is 150mA for 0.5W operation, though low-power 0.2W variants may operate at 60mA.
• Wavelength: The dominant emerald-green light is usually between 520nm and 530nm.
• Luminous Flux: High-brightness units typically produce between 40 and 60 lumens per chip.
• Viewing Angle: Standard broad dispersion of 120°.
