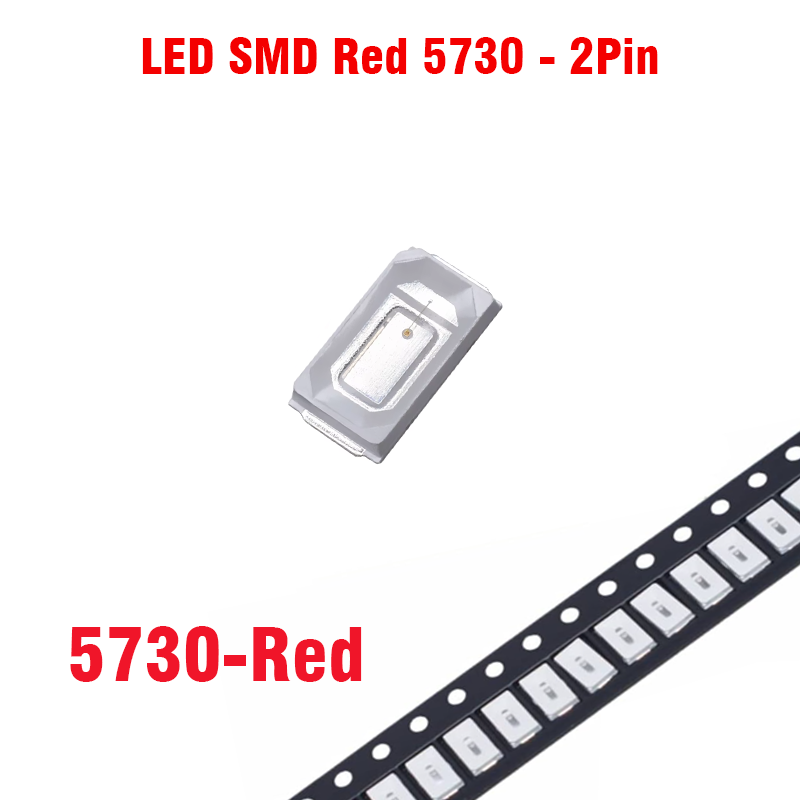

LED SMD Red 5730 - 2Pin

The Red 5730 SMD LED

is a high-brightness, mid-power diode measuring 5.7mm x 3.0mm. It is commonly used for automotive brake lights, signaling, and indoor decorative lighting due to its superior heat dissipation and luminous efficacy

Key Specifications

Standard red 5730 LEDs typically operate at a lower voltage

• Forward Voltage (Vf): Generally ranges from 1.8V to 2.2V DC.
• Forward Current (If): Rated for 150mA for a standard 0.5W output.
• Luminous Flux: Produces approximately 25 to 35 lumens at full current.
• Wavelength: Dominant red spectrum falls between 620nm and 630nm.
• Viewing Angle: Features a wide 120° light distribution.
