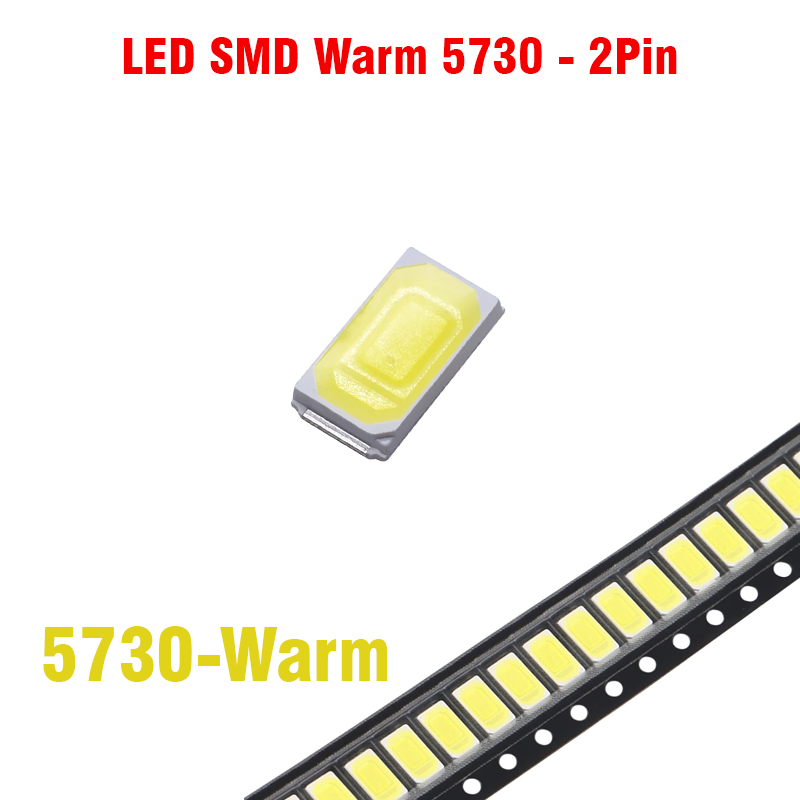

LED SMD Warm 5730 - 2Pin

The Warm White 5730 SMD LED

 is a compact, surface-mount diode measuring 5.7mm x 3.0mm. It is highly popular for DIY lighting and bulb repair due to its high efficiency, wide viewing angle, and soft, yellowish light that mimics traditional incandescent bulbs.

Key Specifications

• Forward Voltage (Vf): Generally ranges from 3.0V to 3.3V DC.
• Forward Current (If): Standard 0.5W versions require 150mA, while 0.2W variants operate at 60mA.
• Color Temperature: Typically 2800K to 3200K (Warm White).
• Luminous Flux: Produces between 25 and 55 lumens depending on the power rating.
• Viewing Angle: Wide distribution of 120°.
• Lifespan: Rated for up to 50,000 hours under ideal thermal conditions.
