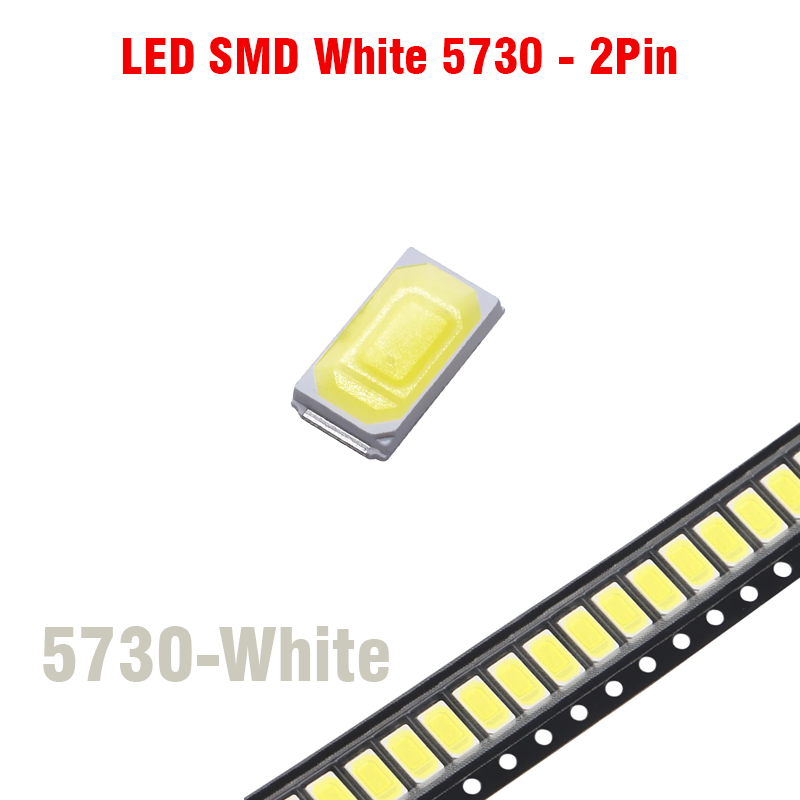

LED SMD White 5730 - 2Pin

The White 5730 SMD LED is a high-intensity, medium-power diode (typically 0.5W) measuring 5.7mm x 3.0mm. It is one of the brightest common SMD variants, often used to replace LEDs in automotive dashboards, LED strips, and high-power bulbs due to its balanced size and high lumen output.

Key Specifications

• Forward Voltage (Vf): Operates between 3.0V and 3.4V DC (typical 3.2V).
• Forward Current (If): Rated for 150mA for 0.5W output; high-power versions can handle up to 300mA.
• Luminous Flux: Produces between 50 and 70 lumens per chip at 150mA.
• Color Temperature: Cool White versions range from 6000K to 6500K, while Natural White is roughly 4000K.
• Viewing Angle: Standard broad distribution of 120°.
