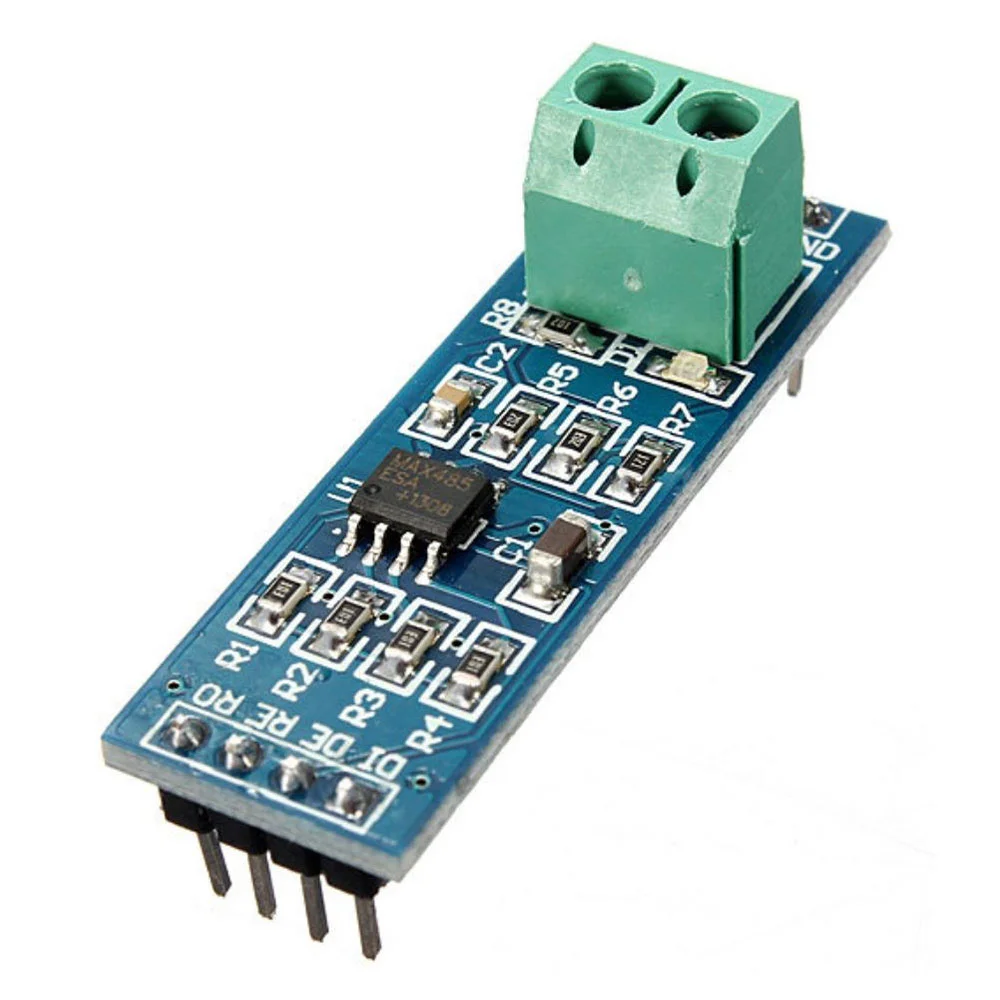

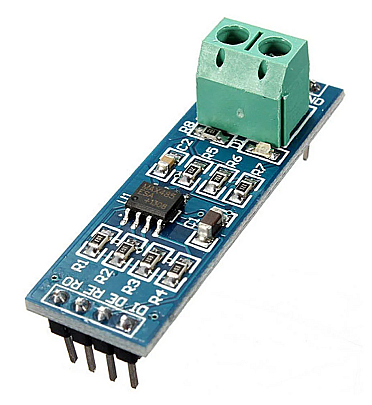

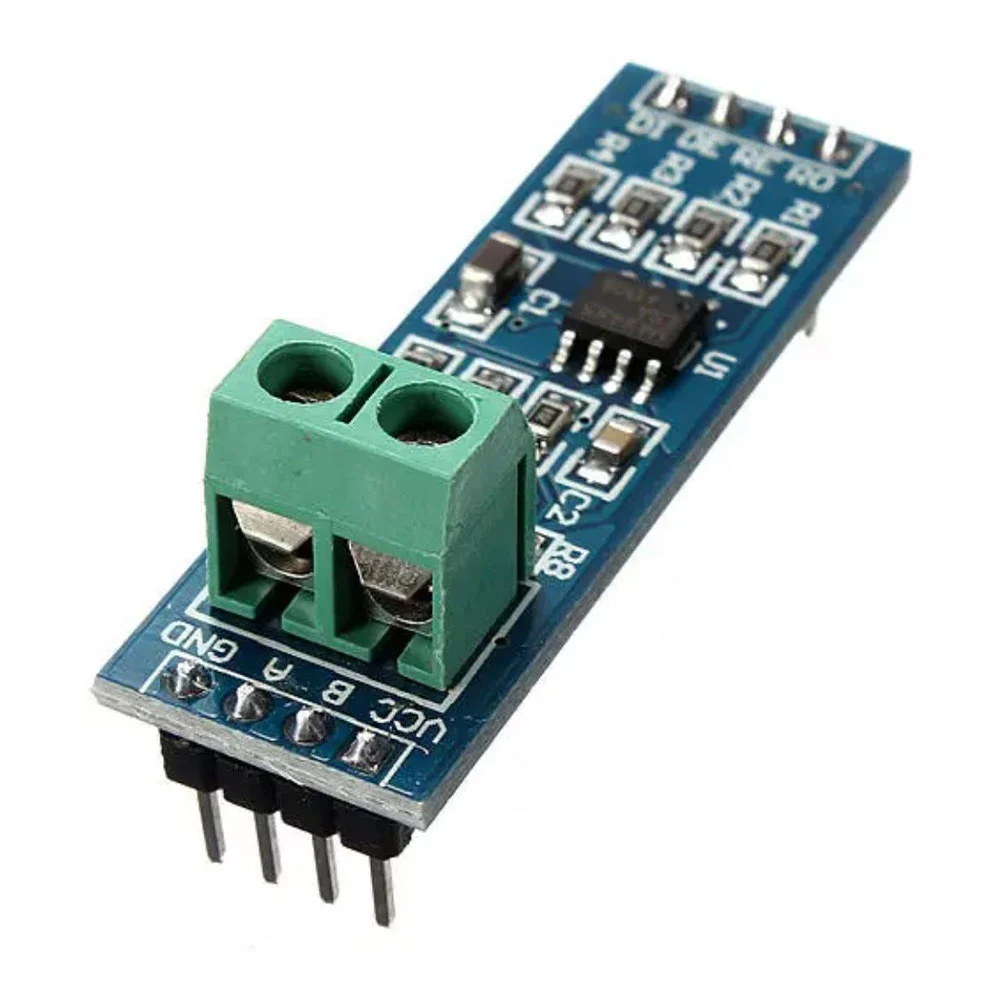

MAX485 TTL to RS485 Converter Module

Product Description

Reliable Long-Distance Serial Communication

Long cable runs can make TTL serial communication vulnerable to electrical noise, signal degradation, and data errors. The MAX485 TTL to RS485 Converter Module provides a practical solution by converting TTL serial signals to robust RS485 differential signaling, helping maintain reliable communication between devices over much longer distances.

Built around the MAX485 chip, this compact RS485 converter module is ideal for Arduino projects, embedded systems, industrial automation, instrumentation, and other applications that require dependable serial communication. With a communication range of up to 1200 meters under suitable conditions, it helps you connect devices across extended cable runs while providing improved resistance to electrical interference.

The onboard screw terminals make RS485 wiring simple and secure, while the 2.54 mm TTL pin header allows convenient connection to compatible development boards and circuits.

Key Features & Benefits

• MAX485 Chip — Provides reliable TTL-to-RS485 signal conversion for microcontroller and embedded-system projects.
• Long-Distance Communication up to 1200 m — Enables communication over extended cable runs, making it suitable for distributed sensors, controllers, and automation systems.
• Differential RS485 Signaling — Provides better resistance to electrical noise and interference, helping reduce communication errors in demanding environments.
• 5V Operating Voltage — Designed for 5V-powered electronics and compatible TTL-based applications.
• Onboard Screw Terminals — Provides secure, convenient connections for RS485 wiring without requiring additional terminal hardware.
• 2.54 mm TTL Pin Pitch — Makes the TTL interface easy to connect to compatible development boards, headers, and prototyping setups.
• Low Power Consumption — Helps keep overall system power requirements low, making it practical for embedded applications.
• Compact Design — Saves space while providing an easy-to-integrate interface between TTL serial devices and RS485 networks.
• Easy Integration — Suitable for electronics prototyping, embedded projects, instrumentation, and industrial communication systems.

Technical Specifications

SpecificationDetails Module TypeTTL to RS485 Converter Main ChipMAX485 Operating Voltage5V Communication InterfaceTTL / RS485 RS485 ConnectionOnboard screw terminals TTL Pin Pitch2.54 mm Maximum Communication DistanceUp to 1200 m* Signaling MethodDifferential RS485 Power ConsumptionLow power ApplicationsArduino, embedded systems, industrial automation, instrumentation, serial communication

Applications

The MAX485 TTL to RS485 module is a versatile choice for:

• Arduino RS485 serial communication projects
• Embedded controller and microcontroller applications
• Long-distance sensor networks
• Industrial automation and control systems
• Data acquisition and monitoring systems
• Instrumentation and measurement equipment
• Building and equipment automation
• Electronics prototyping and DIY projects

Whether you're connecting sensors, controllers, meters, or other serial devices, this TTL to RS485 converter module provides a convenient way to extend communication distances and improve reliability in electrically noisy environments.

Important Note

The maximum communication distance of up to 1200 meters depends on factors such as cable type, cable quality, baud rate, wiring configuration, electrical interference, and network conditions. Actual performance may vary by application.

Compatibility Note: Verify the TTL logic-level requirements of your specific microcontroller or development board before connecting it to the module. The module operates from a 5V supply, while some development boards use 3.3V logic.
