Features:
- DPDT configuration: Offers three positions for flexible circuit control.
- Compact size: Easy to integrate into small devices.
- Solder tag terminals: Allows for reliable connections.
- Durable construction: Ensures long-lasting performance.
Specifications:
- Part No: SS23D32G7
- Material: Plastic and Metal
- Product Name: Slide Switch
- Contact Type: DPDT
- Voltage Max: 50V
- Current Max: 0.5A
- Position: 3
- Terminal Pins: 6
- Contact Resistance: 30M
- Color: Black
- Pin Center Distance: 4mm

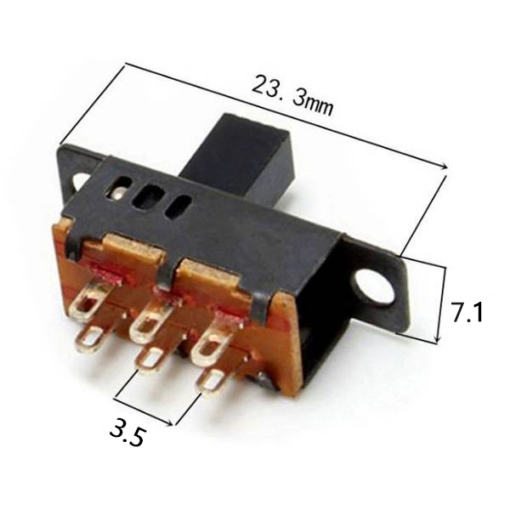

- Length: 23.3mm
- Width: 7.1mm
- Height of The Body: 7mm
- Height Above The Rocker To The pins: 17.1mm
- Dimensions Of the Mounting Hole: 15.5(L) x 7.2(w)
Application:
- They can be used for small power electronic projects
- Toys and hobby electronics: Due to its small size and versatility, it’s ideal for powering and controlling various components in DIY projects and toys.
- PCB mounting: Its compact design makes it suitable for integration into printed circuit boards.

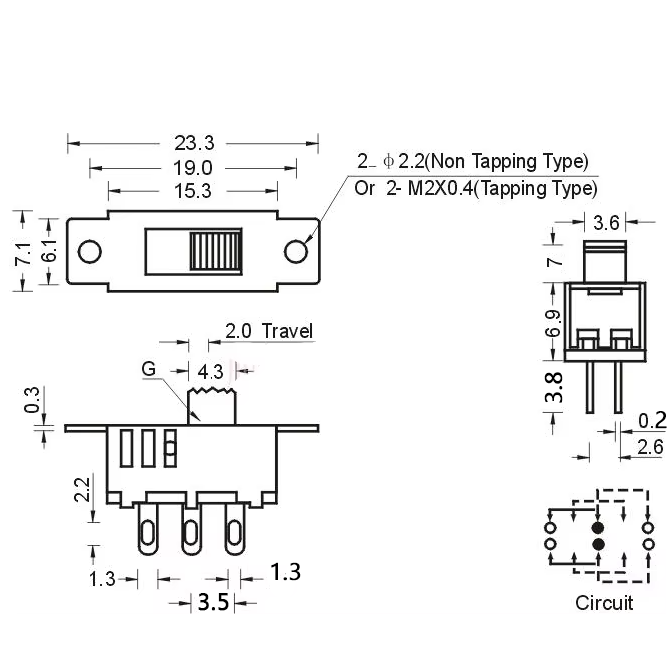

Drawing and Dimensions:
