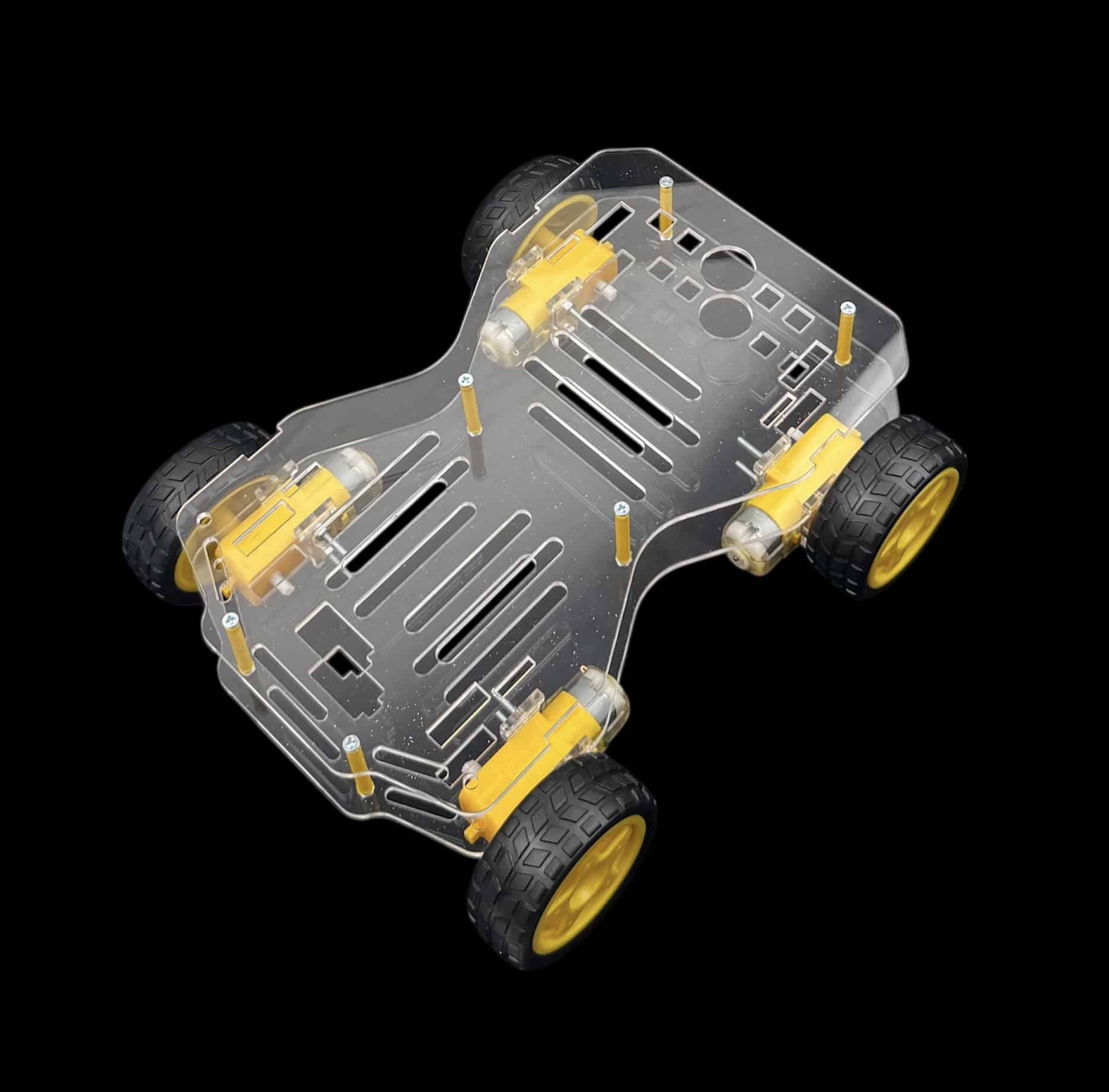

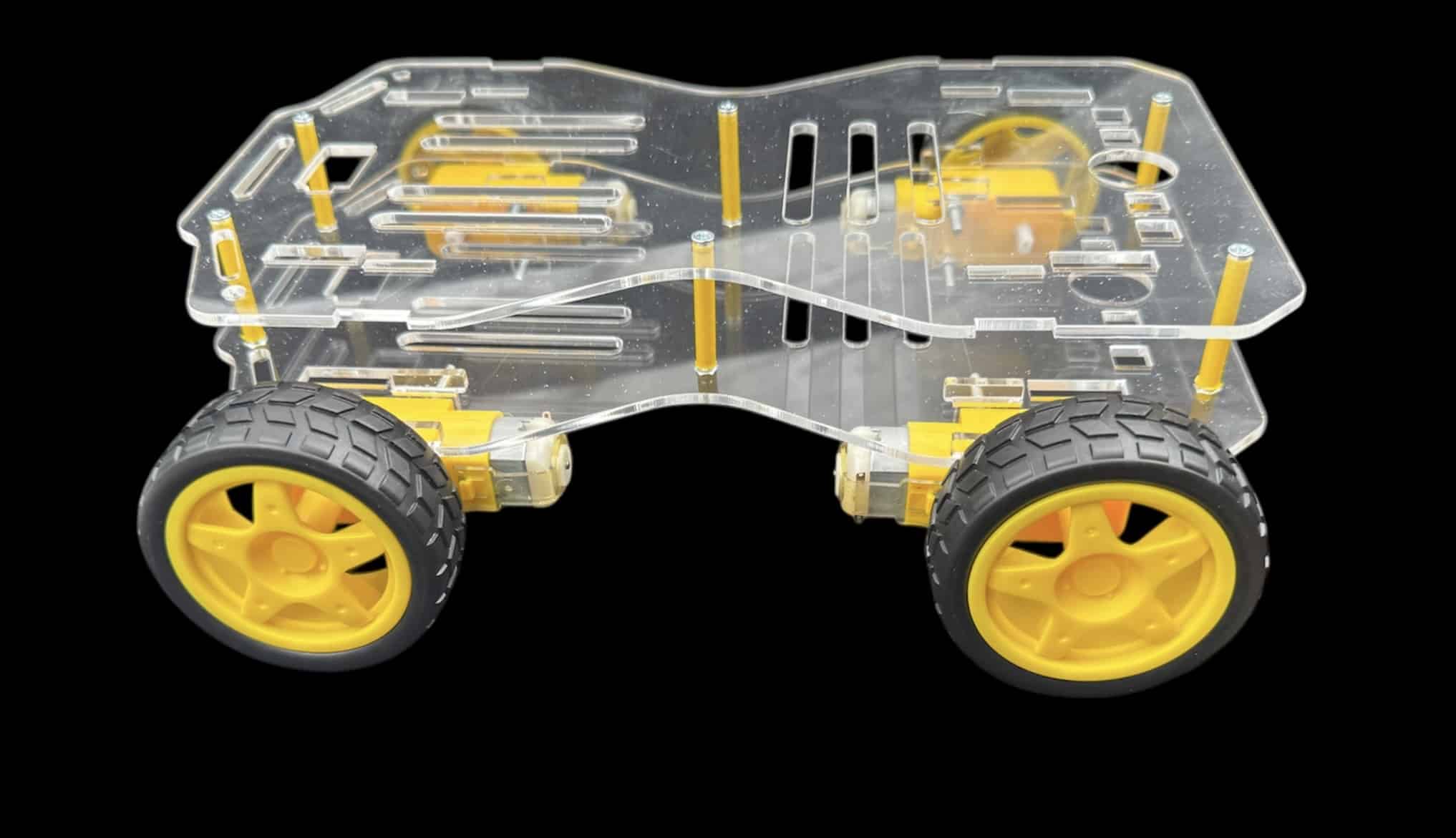

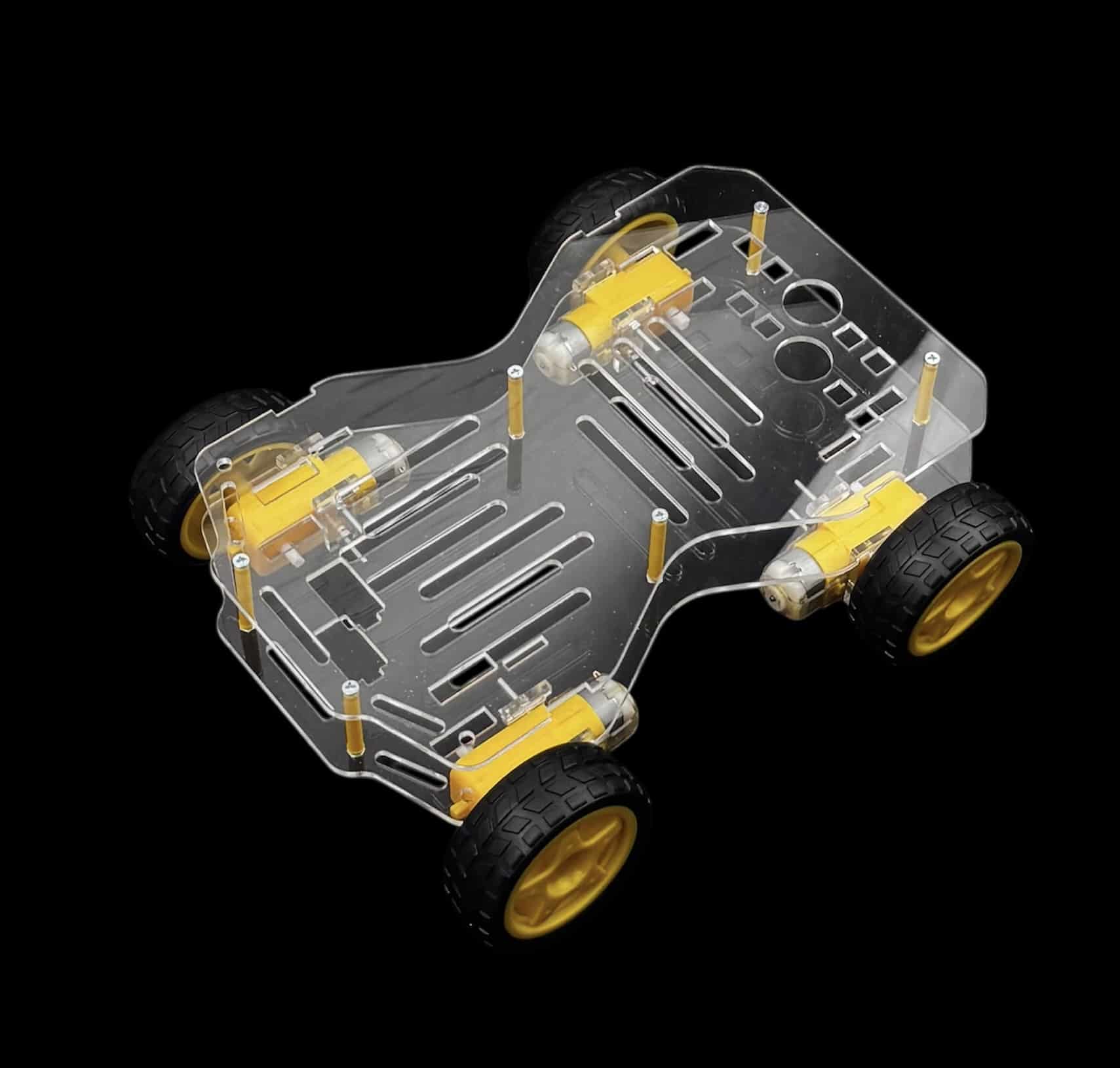

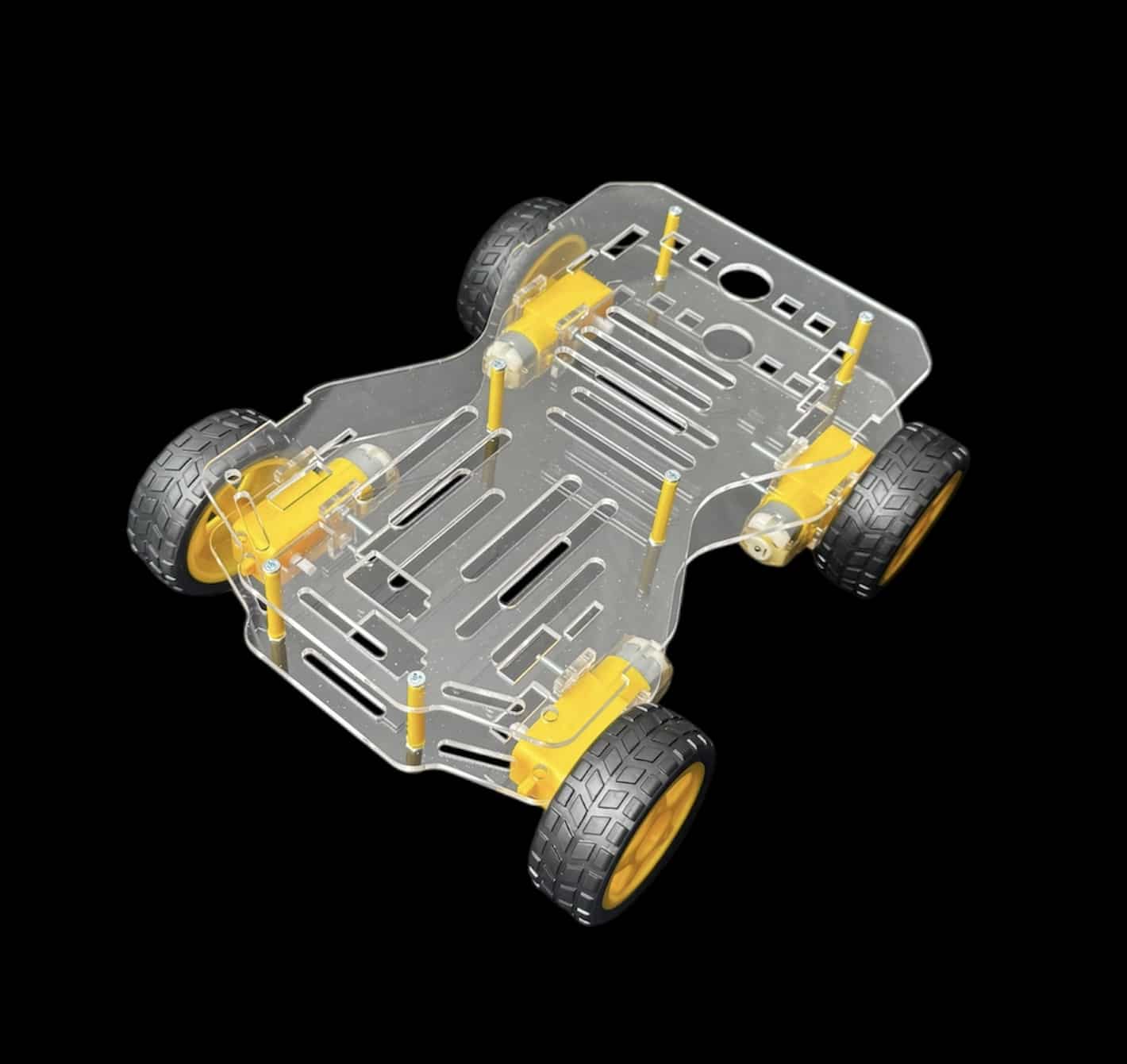

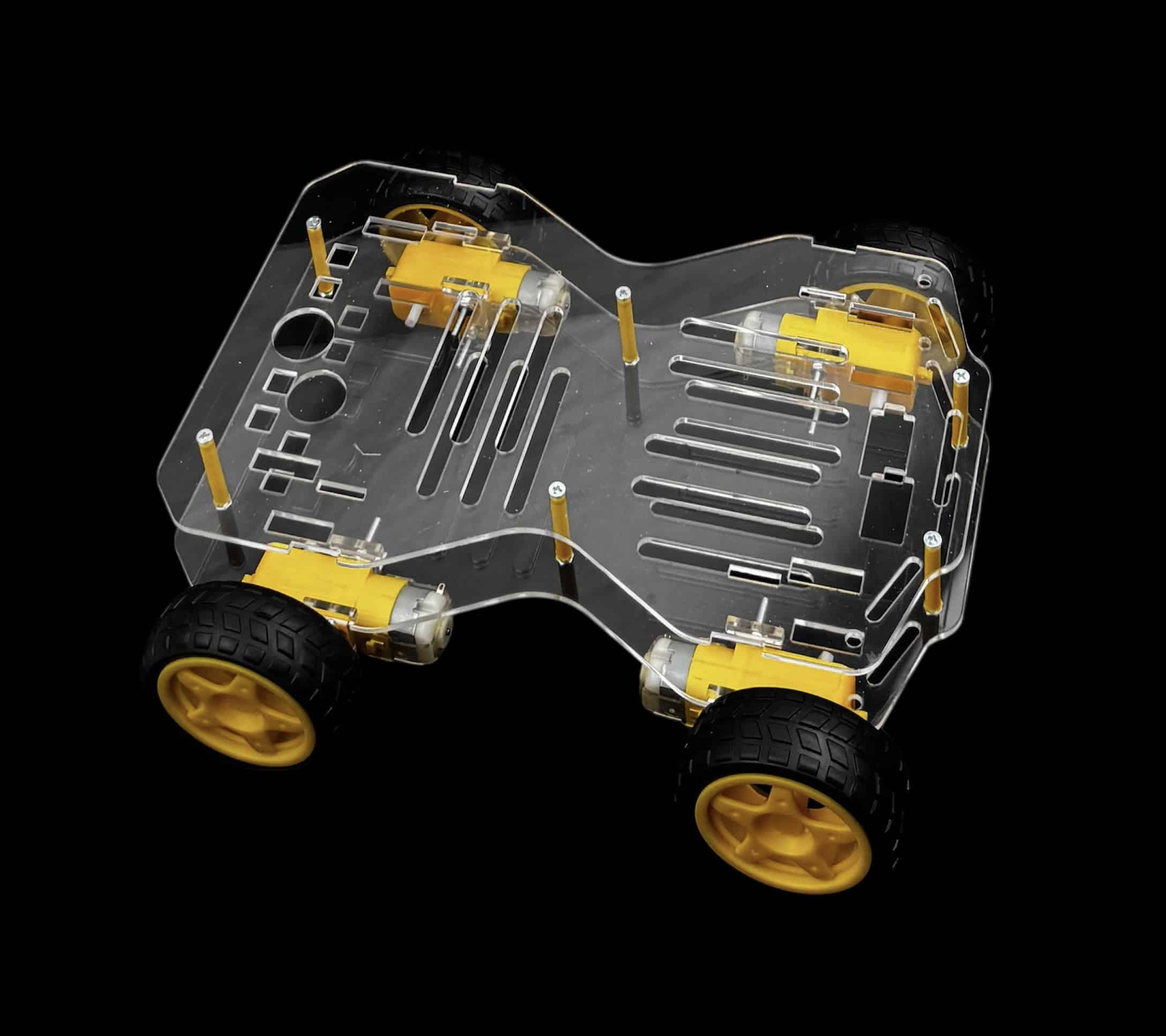

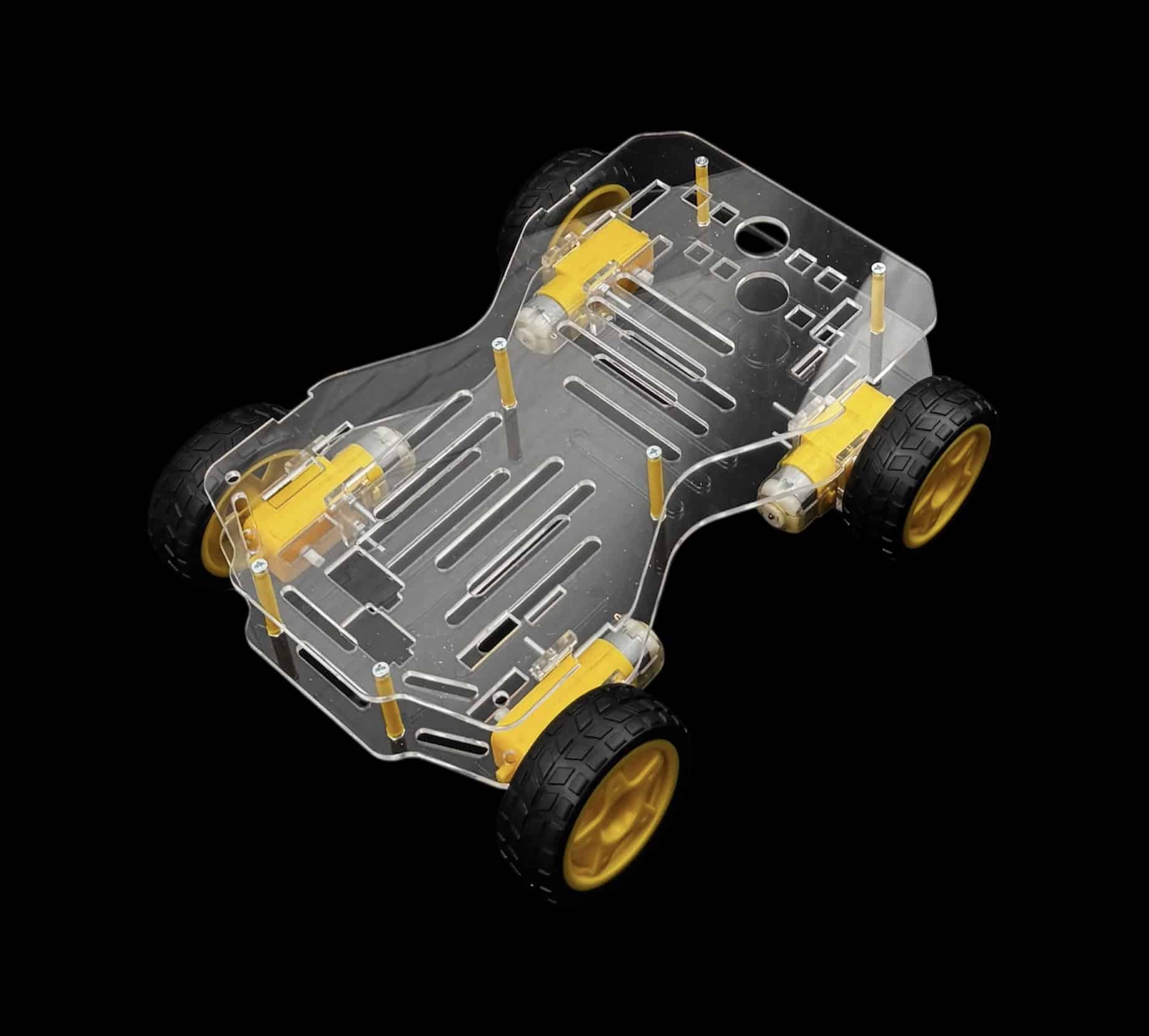

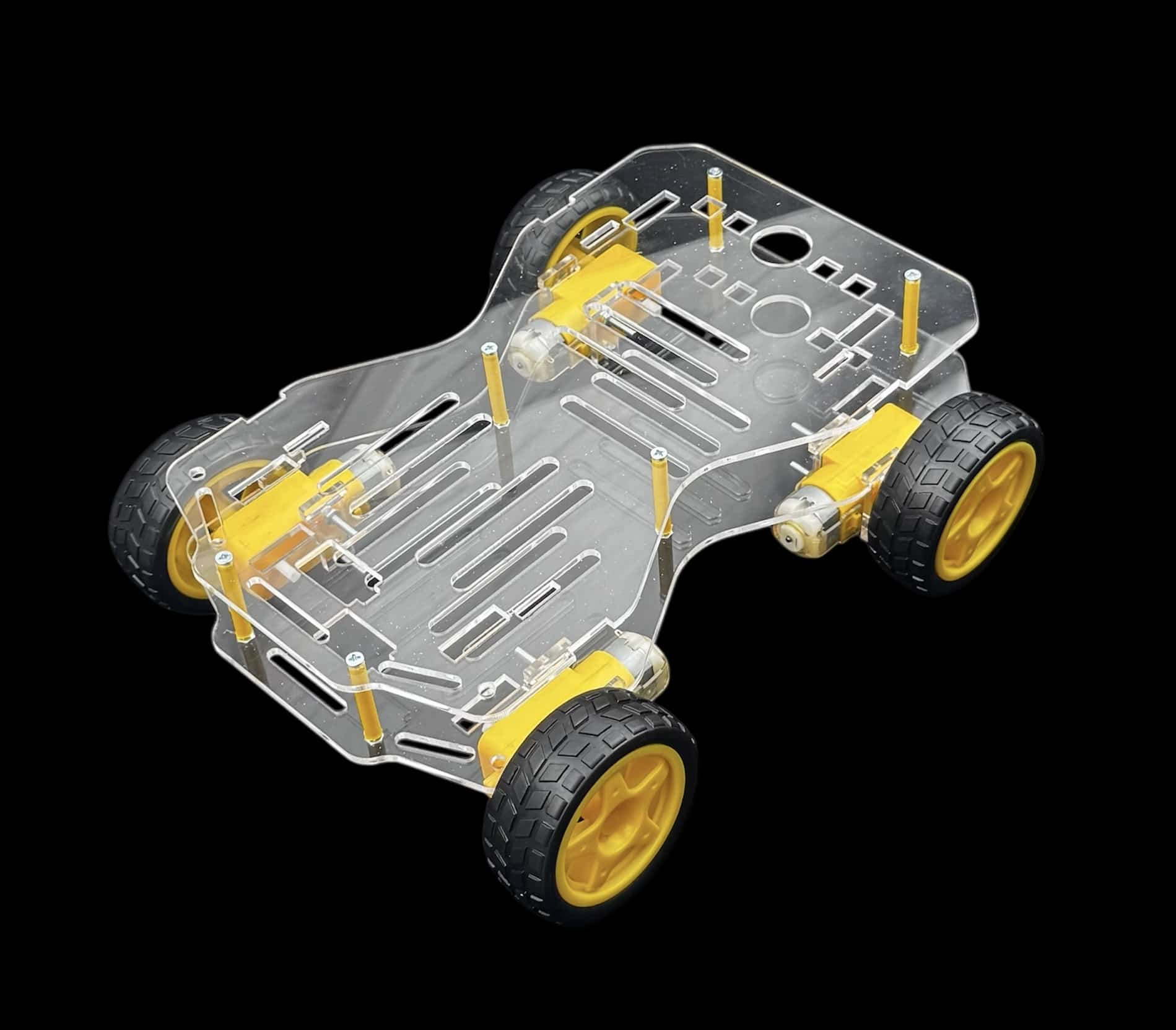

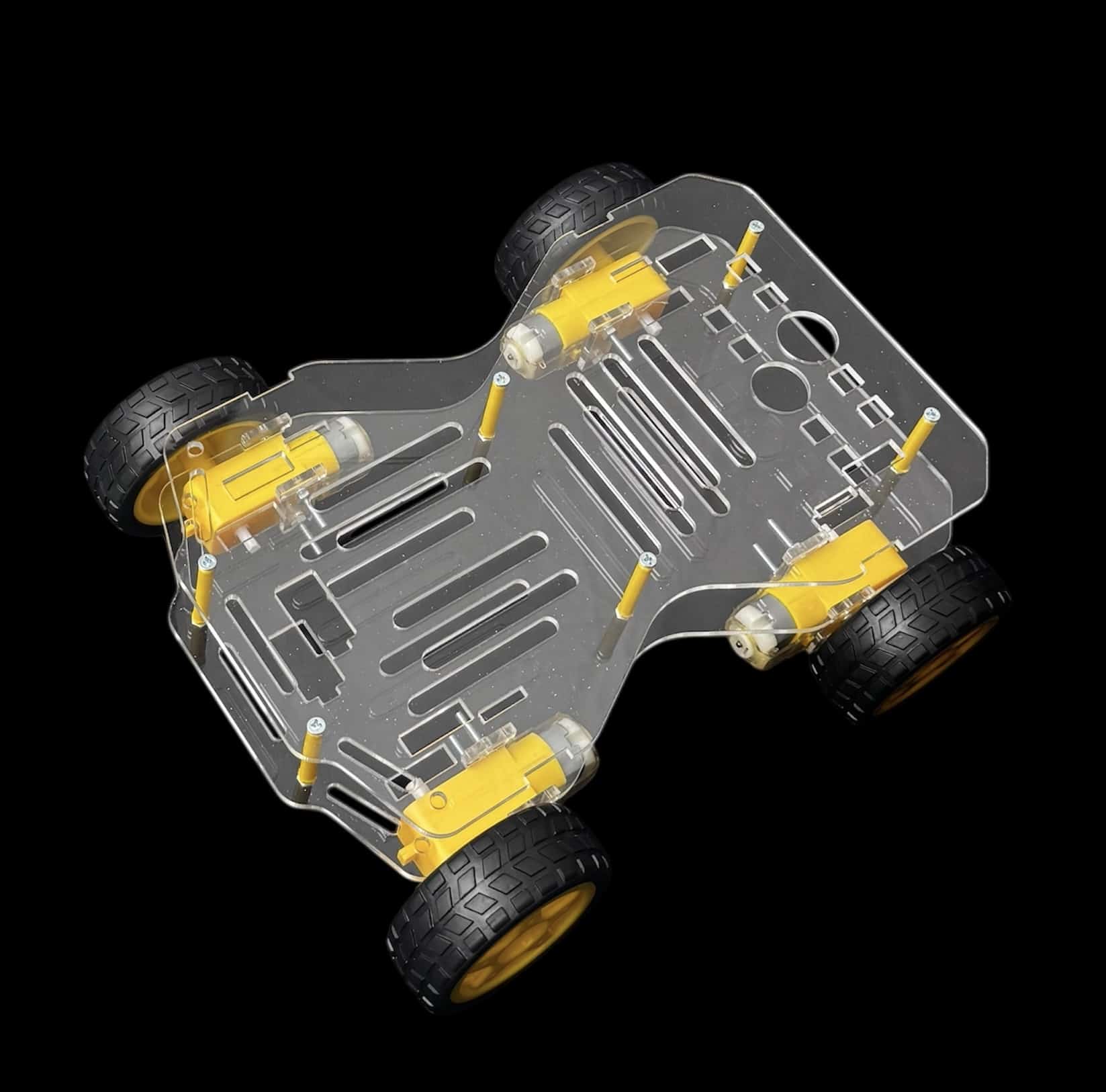

New Version Smart Car Robot 4WD With Wheel and Motor

A Robot Platform 4WD (4 Gear Motors + 4 Wheels) is a versatile mobile robot platform that uses four gear motors and four wheels to move around. It’s often used in robotics projects for tasks like navigation, object manipulation, and exploration. The Plastic motor with 1:48 gearbox. The dual shaft turns up to about 600rpm. Powered by 3-12 volts, draws an average of 190 mA of current (max 250 mA).

Motor Specifications :

• Power supply voltage: 3-12 V
• Power consumption: 190 mA (max. 250 mA)
• Gearbox: 1:48
• Speed: 600 ± 10 rpm (at 12V)
• Shaft diameter: 5.4 mm
• The shaft is cut on both sides
• The shaft has a threaded hole to fit M3 screws (not supplied)
• The motor has a double-shaft

Drawing and Dimensions:

The parameters of the wheel

• Tire diameter: 65mm
• Tire width: 26 mm
• Plastic rims with solid rubber tires
