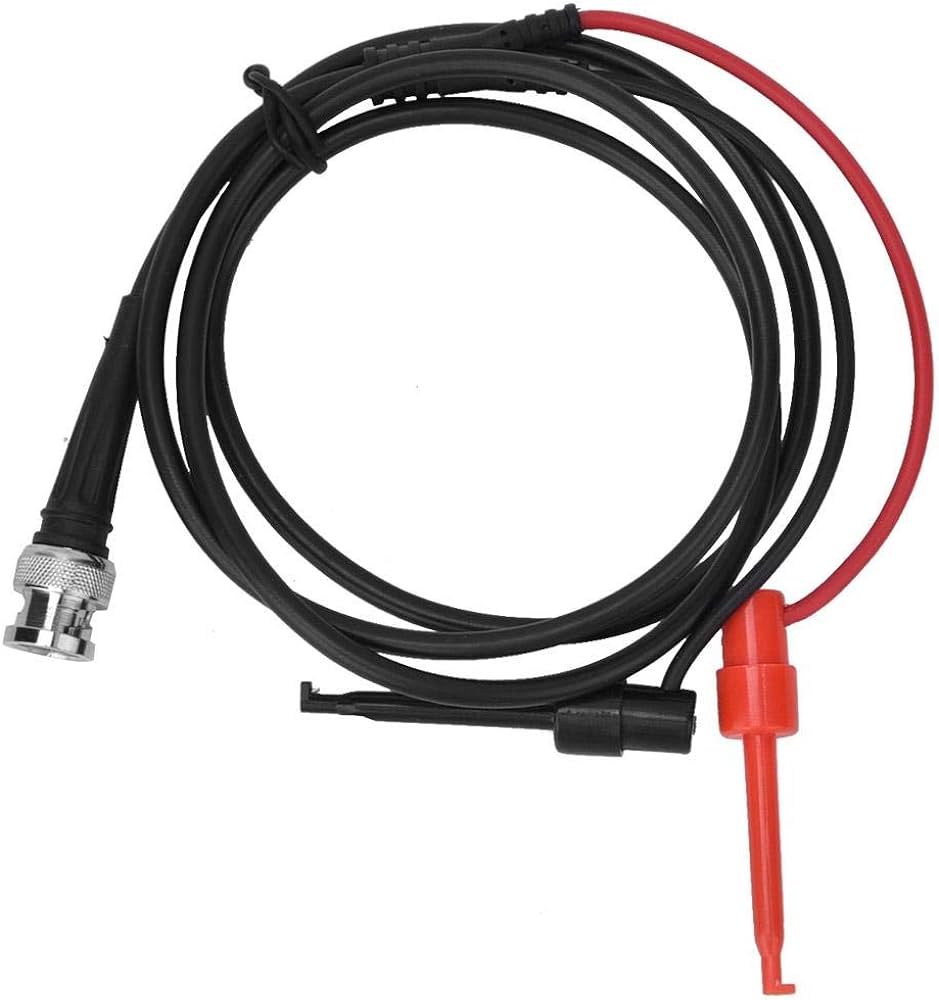

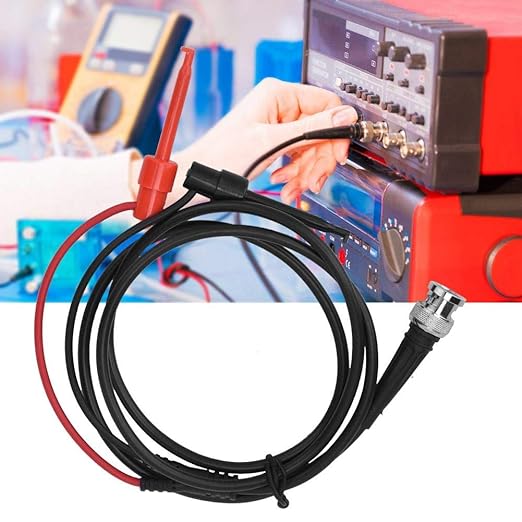

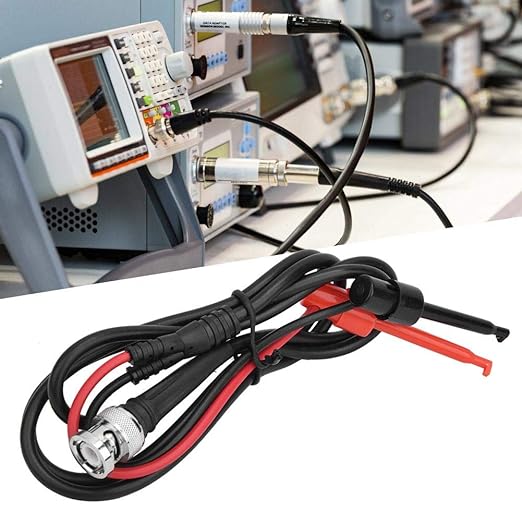

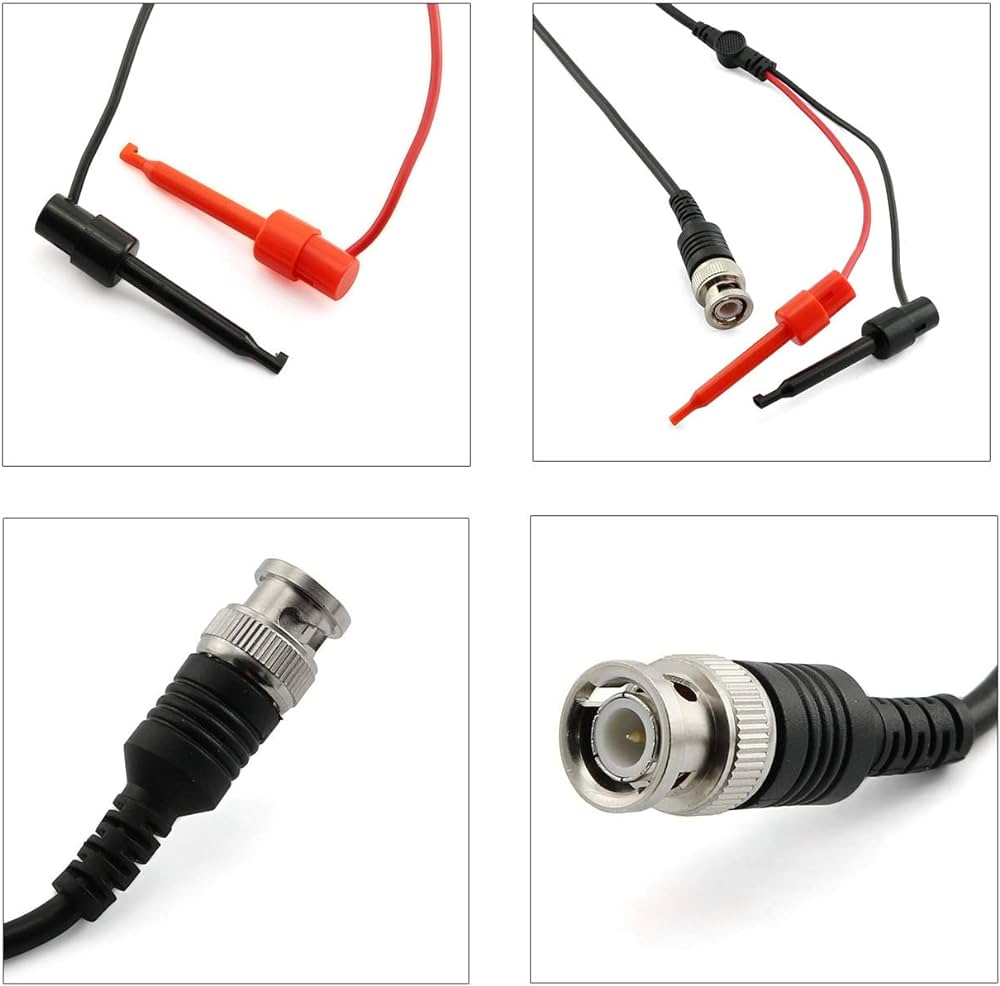

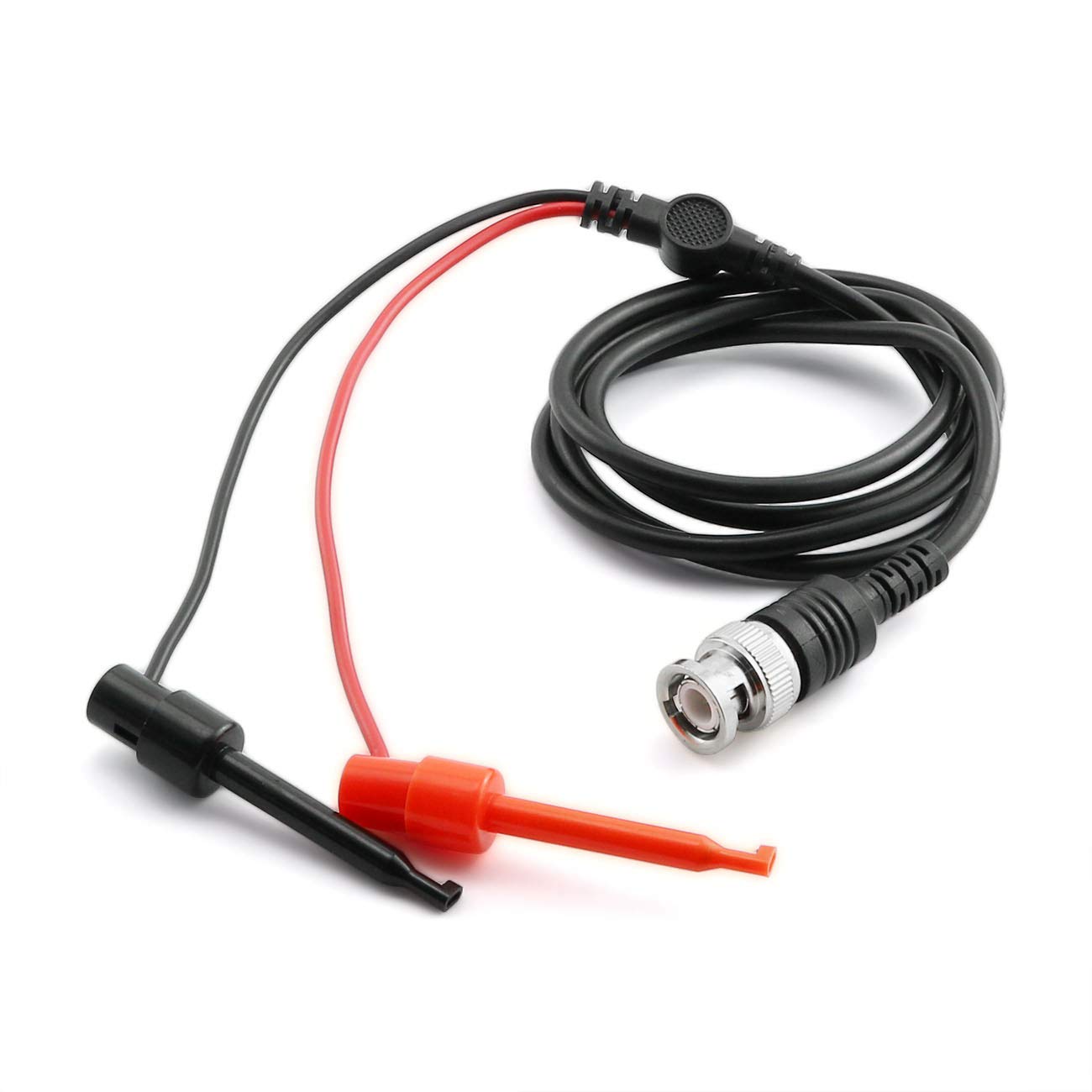

Oscilloscope Test Probe (P1007) BNC Male Plug Q9 to Dual Test Hook Clip
SKU: 45743
Pick up from store
Shipping 2-3 business days
Description
Features:
·Coaxial Cable of a BNC connector to mini-grabber clips ( color in black and red) ,Length 120cm
·Premium Material - High quality BNC (Male) test leads assemblies featuring high performance low loss 50-Ohm coaxial cable (OD4.0mm)

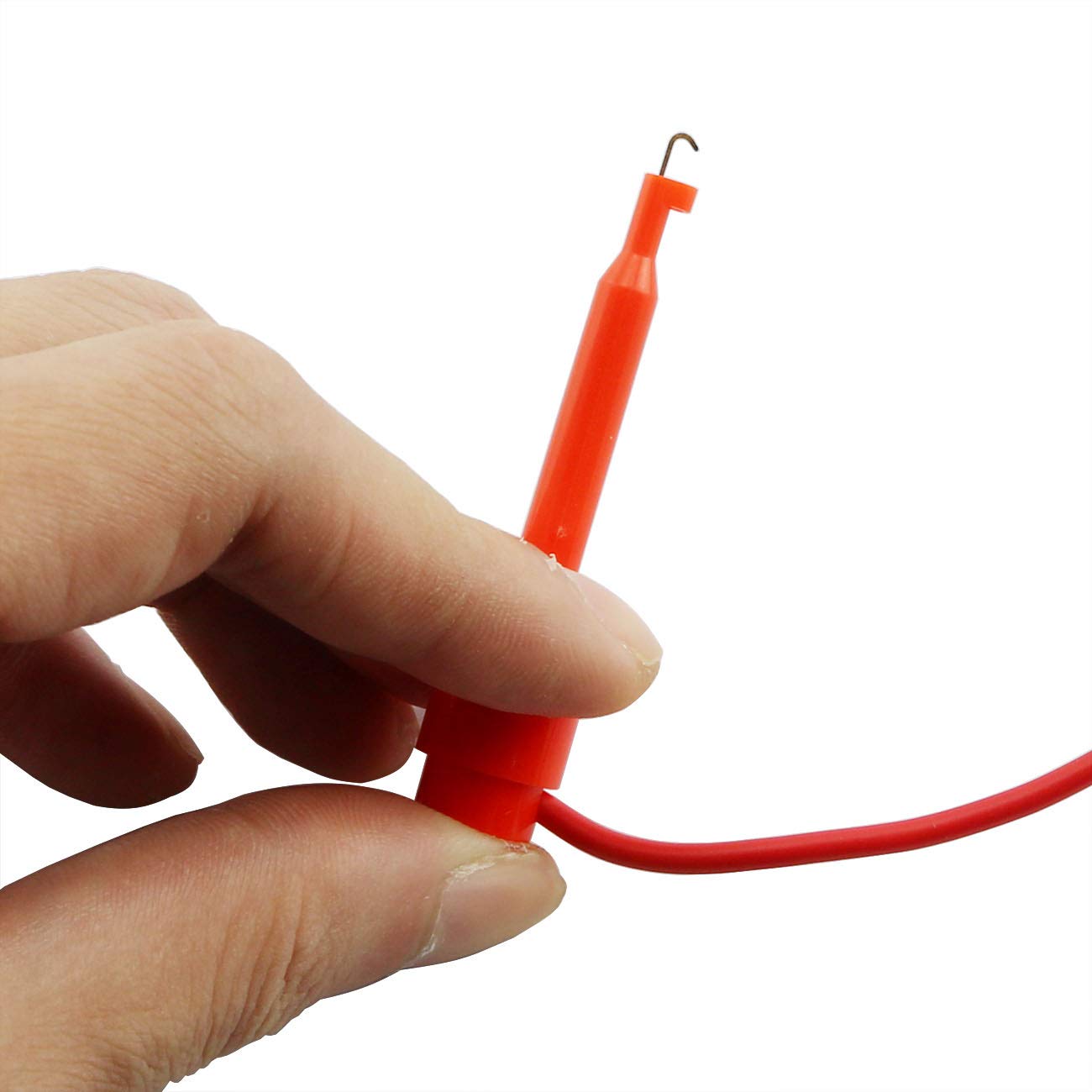

·The overall length of test hook is 58mm, max output hook length 3.3mm, Convenient to clamp testing components.
·Cable impedance: 50ohm; Maximum input current/voltage: 5A/500V
·Application - Applies to standard BNC interfaces. Such as Oscilloscopes, signal generators, video surveillance, etc . Ideal for testing work in labs, service shops, schools, home and industry
Parameters :
.Model: P1007
·Coaxial Cable Material : PVC,Copper
·Coaxial Cable Impedance : 50Ω
·Max voltage and current : 500V 5A
·Length : 120cm
.Weight: 42g
.Color: As picture shows
