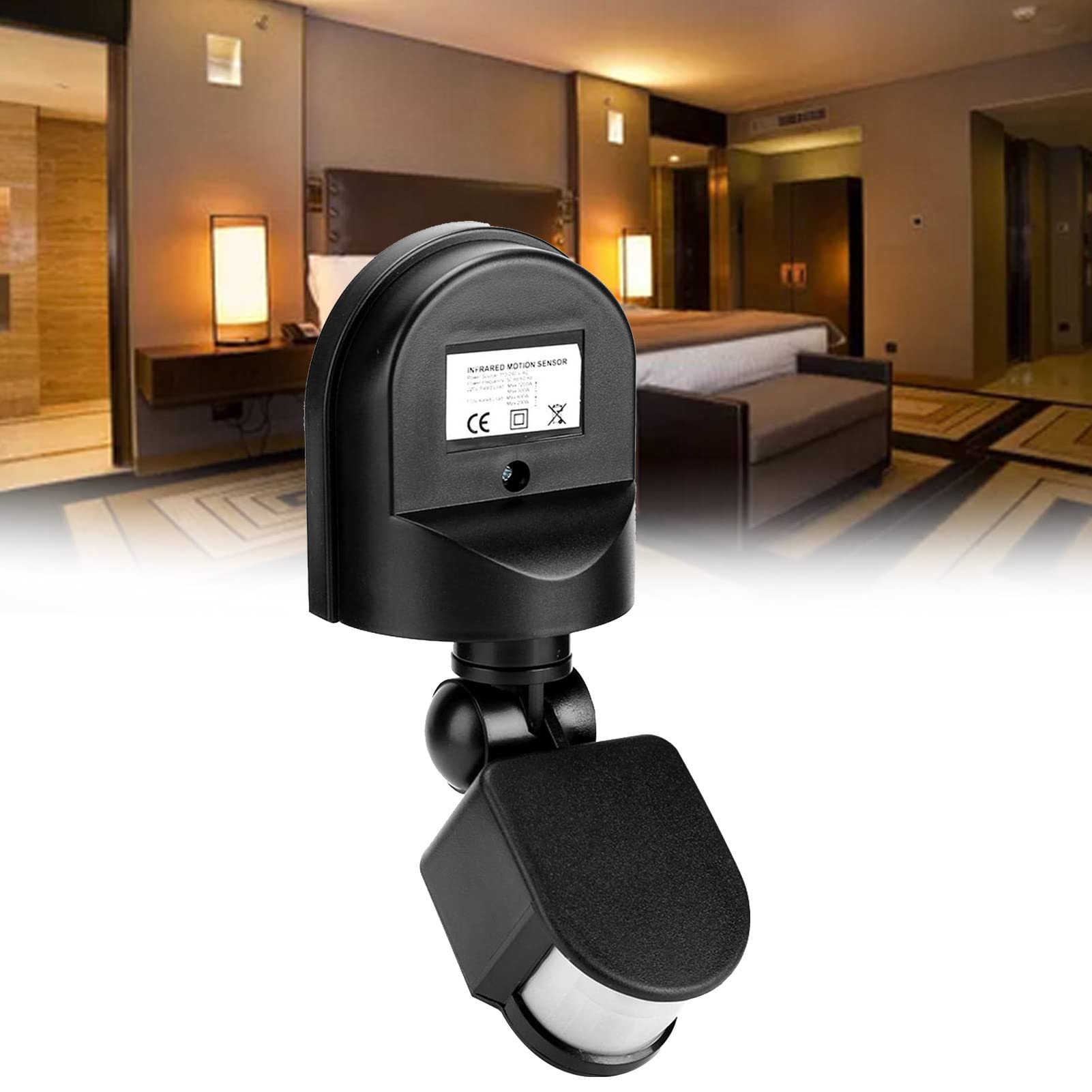

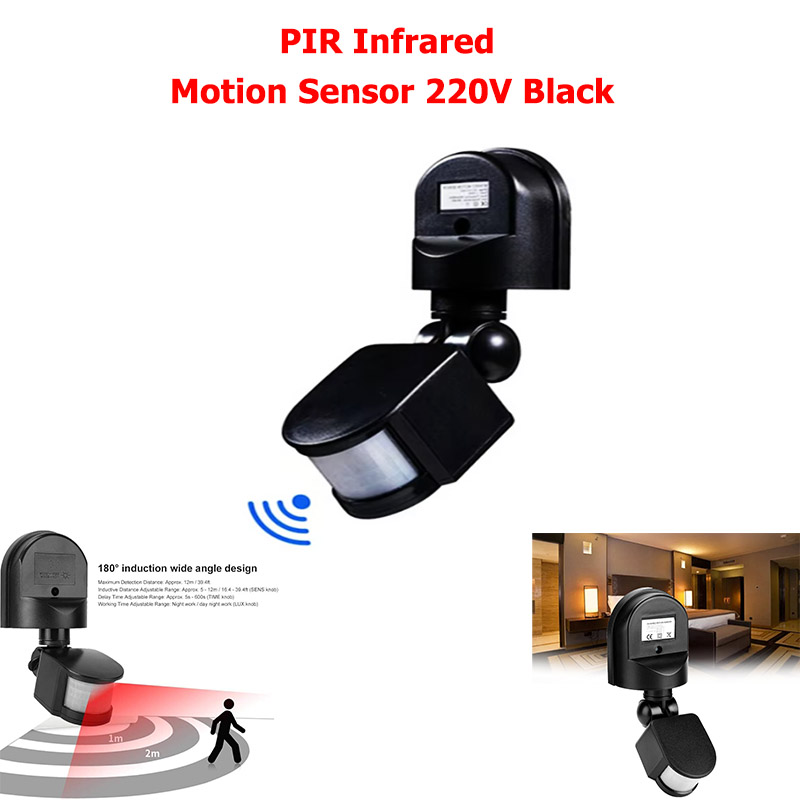

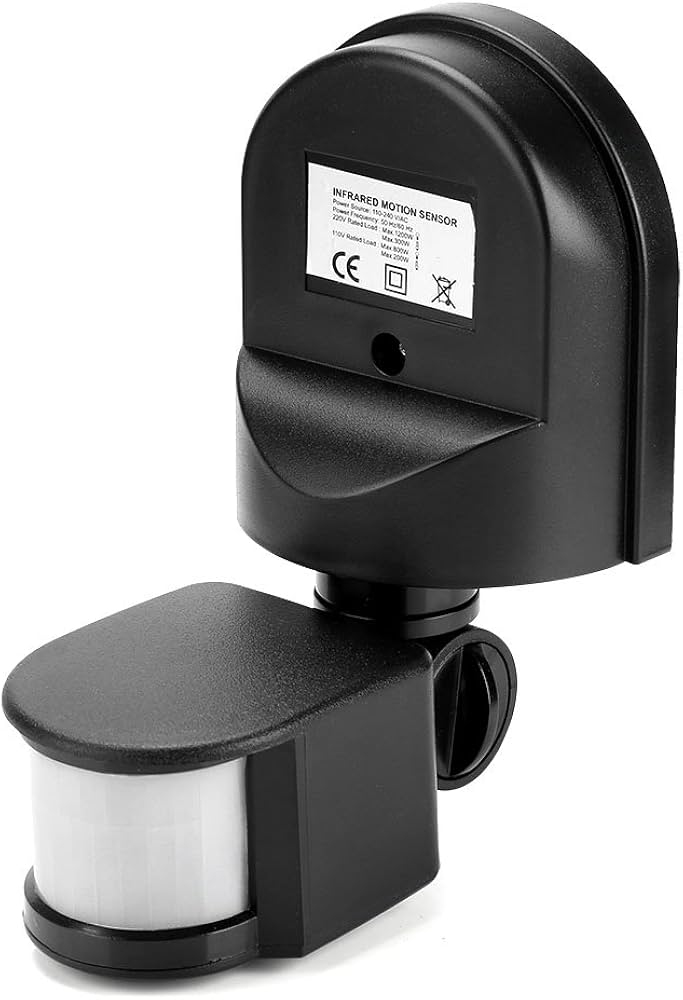

Outdoor PIR Infrared Motion Sensor Switch 220V -10A (Black)

Description:
This infrared motion sensor can be used to control LED light, bulb, exhaust fan and other electric appliance, very convenient to use and consumption saving. It allows you to adjust the detection distance, ambient light and delay time. Ceiling or wall mounted, suitable for corridor, hallway, garage, patio, toilet and anywhere needed. Waterproof and weather proof, also suitable for outdoor use.

Specifications:
Condition: 100% Brand New
Material: ABS + PC
Color: White, Black(Optional)
Working Voltage: AC 110~240V
Rated Load Current: 10A
220V Rated Load: Max. 1200W(incandescent lamp)
Max. 300W(LED, energy-saving lamp)
110V Rated Load: Max. 800W(incandescent lamp)

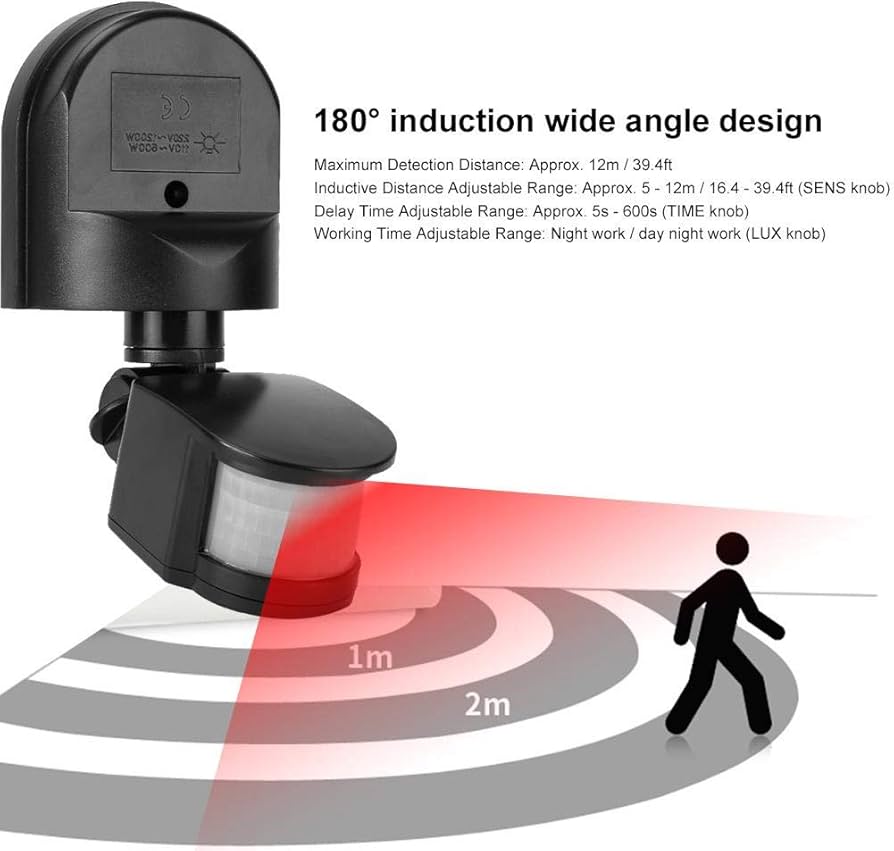

Max. 200W(LED, energy-saving lamp)Detection Distance: 2~12 meters (adjustable)
Detection Angle: 160¡ã
Time-delay: 5sec~10min(adjustable)
Ambient Light: adjustable 10~2000 lux
Protective Level: IP 65
Recommended Installation Height: 1.5~4m

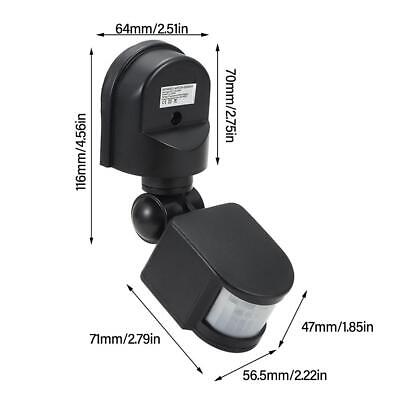

Size: approx. 19 x 6 x 5cm / 7.48 x 2.36 x 1.97in
Weight: approx. 226g

Package Included:
1 x Infrared Motion Sensor with Installation screws(Connection wires not included)

Wire Connection Instruction:
Brown Wire: Live Input
Red Wire: Live Output
Blue Wire: Common Neutral

Note:
1. Recommended that the product is installed by professional electrician.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
3. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
