Name: Raspberry Pi RP2040 Zero Microcontroller PICO Development Board (SOLDER PINHEADER)
SKU: woo-32672
Price: 500 EGP
Availability: InStock

Description

Board Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

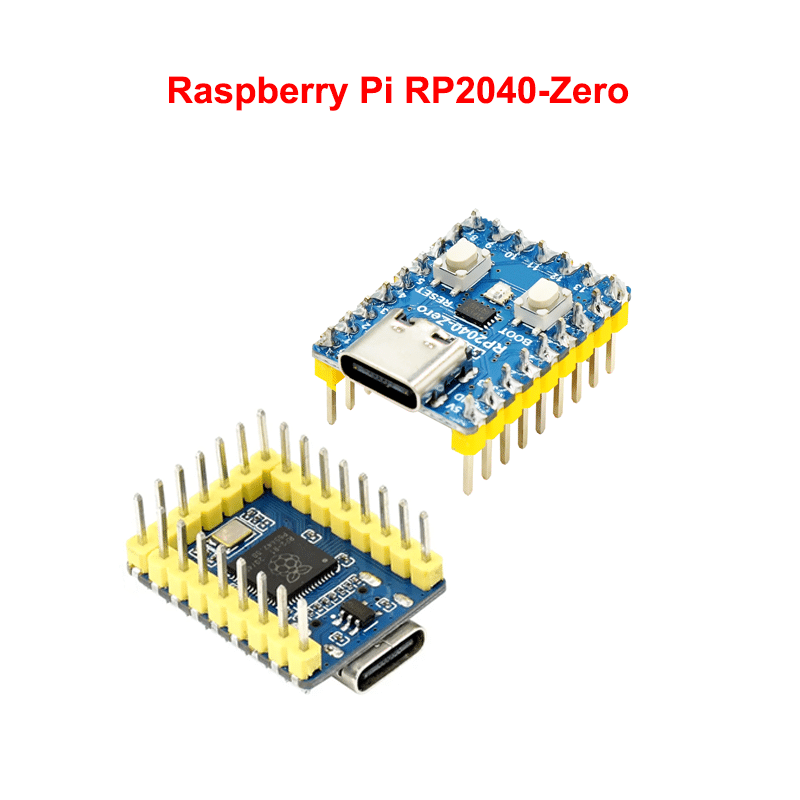

Pinheader Options

C/C++，MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

29 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

What's On Board

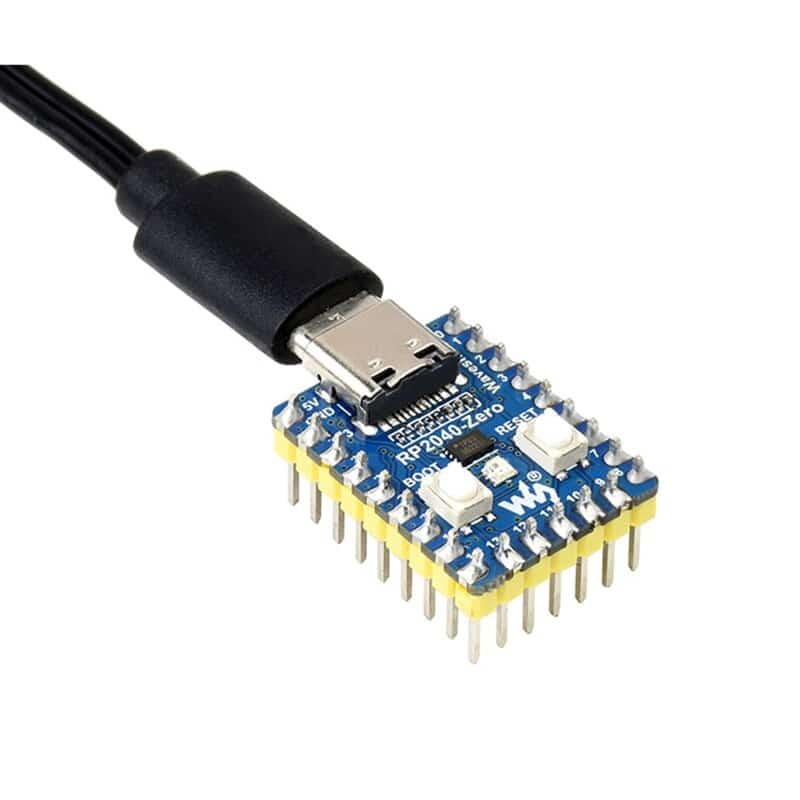

USB Type-C connector
W25Q16JVUXIQ
2MB NOR-Flash
BOOT button
press it when resetting to enter download mode
RESET button
WS2812
cool RGB LED

ME621
low dropout LDO, max current 800MA
RP2040
dual-core processor, up to 133MHz operating frequency

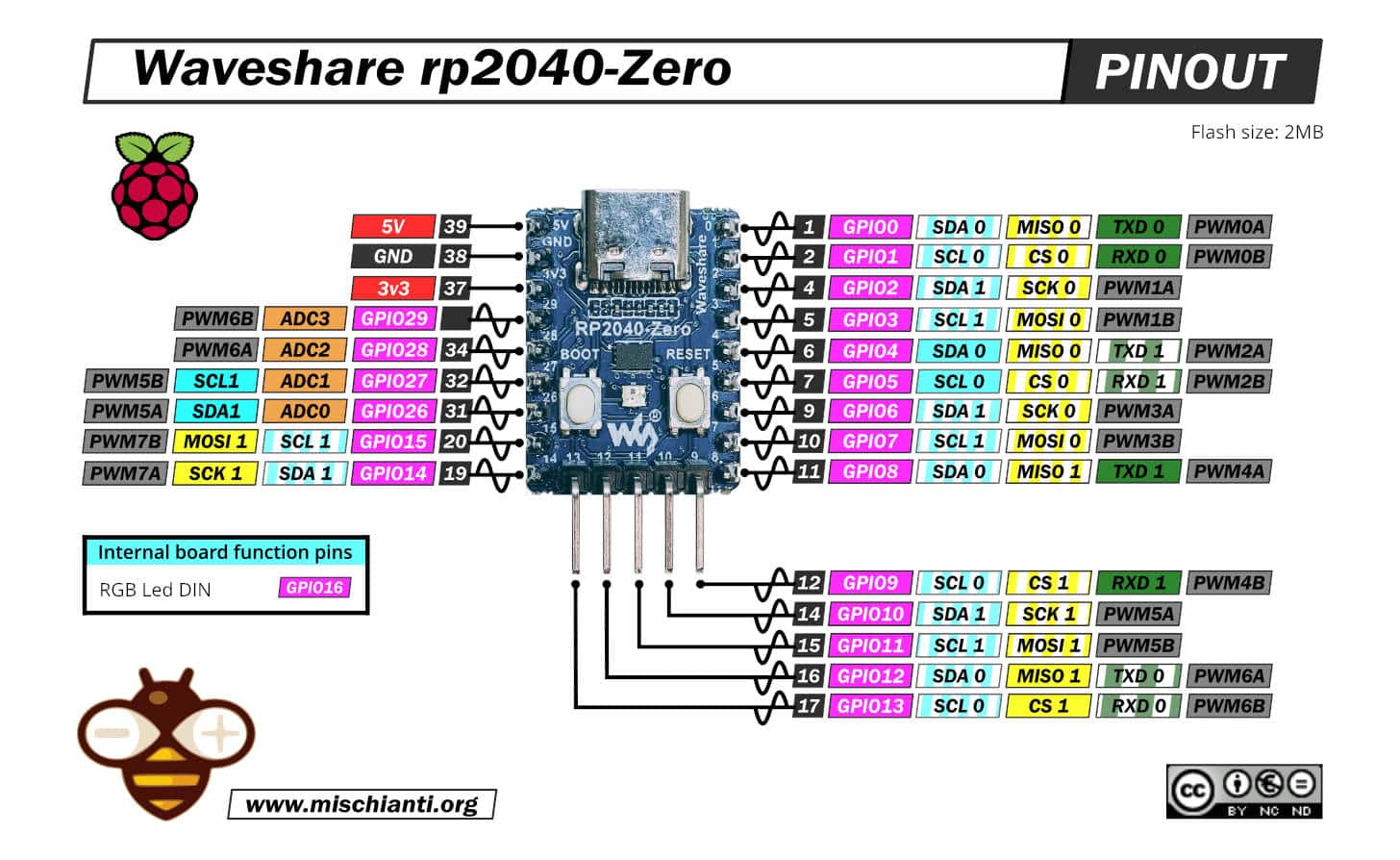

RP2040 pins
10x solder points, 9 of which are for GPIO

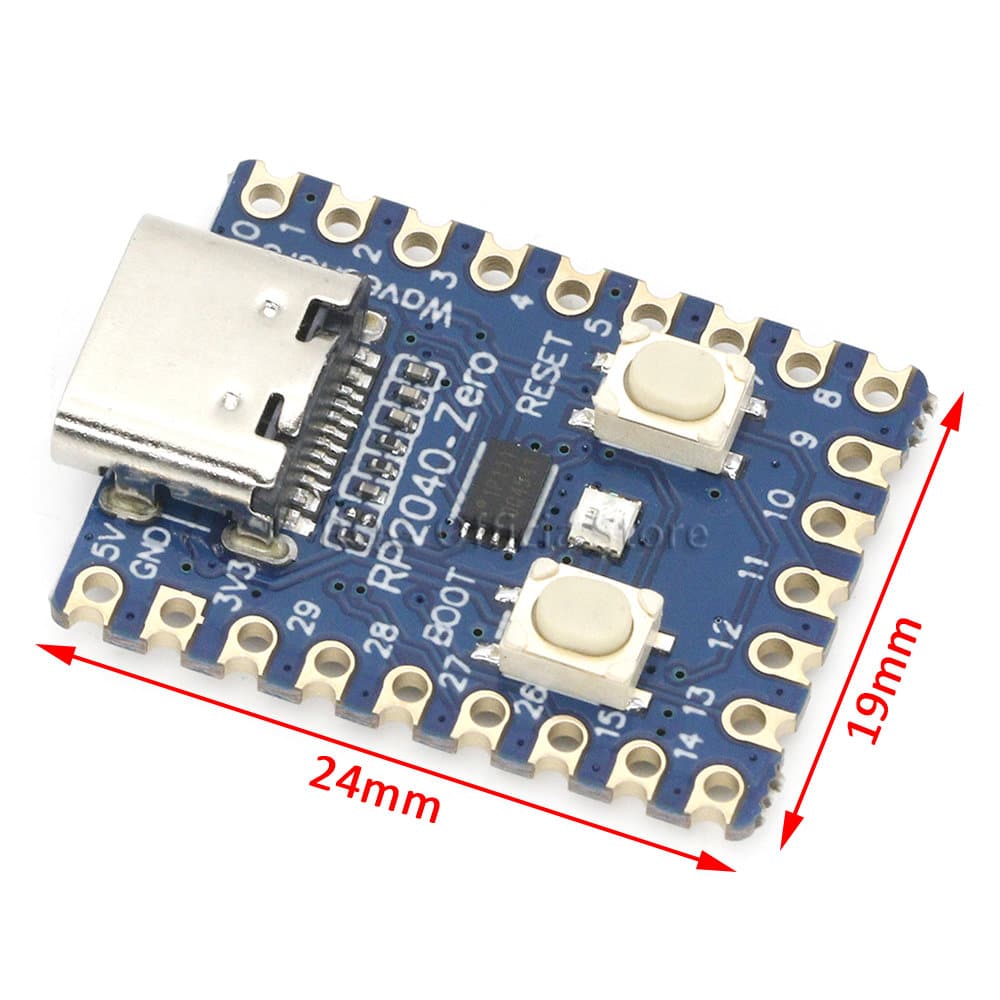

Outline Dimensions
