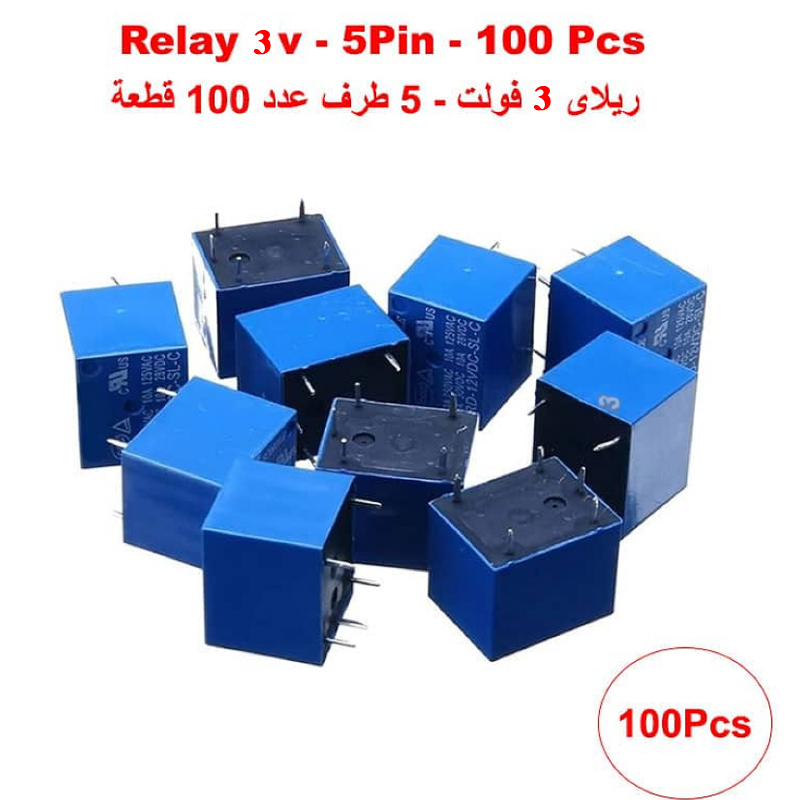

Relay 5pin (3VDC - 10A) - 100Pcs

The relay made of durable plastic that can withstand and leads with chemical solutions up to high temperatures.

With compact dimensions the relay is designed for use with printed circuit boards.

The relay is widely used in monitor, domestic appliances, office machines and much more used.Model No.: SRD

Parameter Rating: 3V DC/ 220V AC, 10A

Contact resistance: 100M Ohm

Insulation resistance: 100M Ohm

Coil voltage: 3V DC

Coil : 0.4W

Coil pick-up voltage: 75%

Coil drop-out voltage: 10%

Operating time: 10 m/ sec (max.)

Release time: 5 m/ s (max.)

Size: 18 x 15 x 15 mm (pins not included)

Color: As shown

Switching capacity : 10A

Ambient temperature: -40°C ~ + 85°C

Humidity: 45% ~ 85% RH

Package Contents:

100 x Relay
