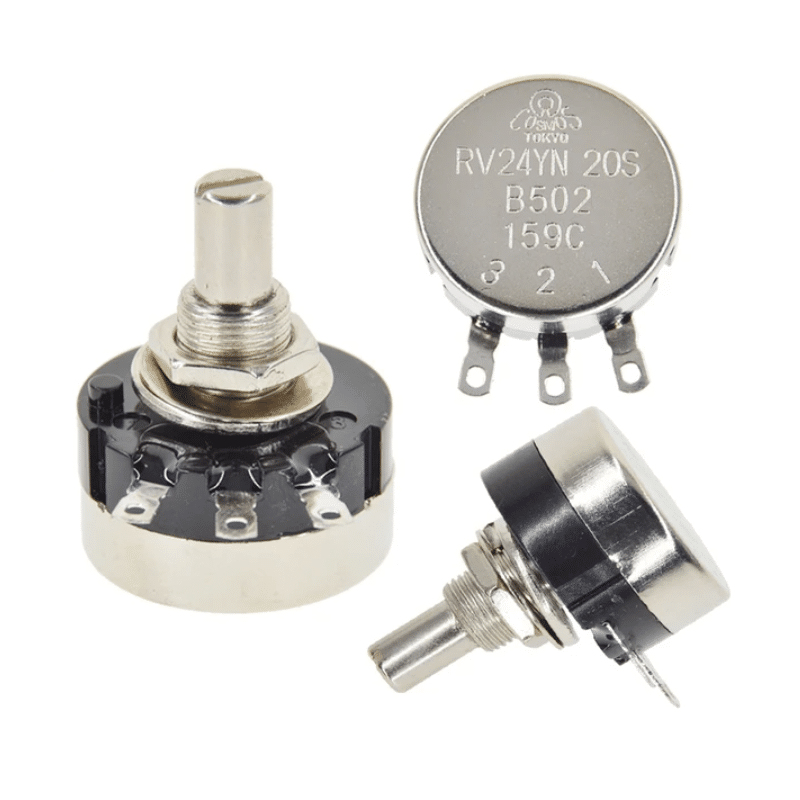

Rotary Taper Potentiometer POT (5K Ohm) (RV24YN20SB502)
In Stock
In Stock
Add to WishlistRemove from Wishlist
CompareAdd to Wishlist
Description
RV24YN 20S B502 5K Ohm Carbon Composition Rotary Taper Potentiometer Pots
Describe
5K Ohm Resistance, 10% Tolerance, 3 Terminals Potentiometer, come with a Dial and a Control Knob.
This Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment’s.
| Product Name | Potentiometer |
| Model | RV24YN-20S |
| Resistance Value | 5K Ohm |
| Rated power | 2W |
| Type | Single Linear (Type B) |
| Shaft Diameter | 6mm / 0.2″ |
| Shaft Length | 10mm / 0.4″ |
| Mounting Thread Diameter | 9mm / 0.35″ |
| Base Diameter | 25mm / 0.1″ |
| Total Height | 35mm / 1.4″ |
| Material | Metal, Electronic Parts, Carbon Film |
| Adjustment Type | Top Adjustment |
| Package | 1 x Potentiometer |
Specification
Resistance Tolerance: +/-10%;
Rated power: 2W
Mechanical angle: 300°±5°
Electrical angle: 280°±10°
Rotational life: ≥15000 rpm
Potentiometer Body Size: 2. 5 x 1. 4cm/ 1 inch x 0. 55 inch (D*T)
Total Size: 40 x 38mm/1. 6 inch x 1. 5 inch(Dial D*H);
Color: Black, Silver Tone
Material: Metal + Plastic
Weight: 28g;
Package Content:
1*Potentiometer
