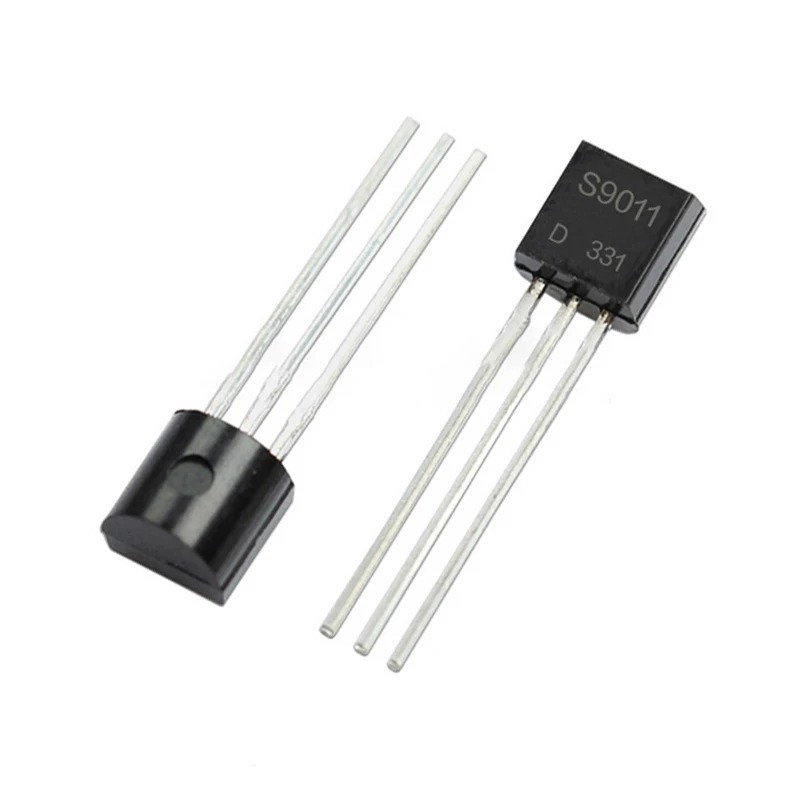

S9011 Transistor (30V, 0.03A) NPN

Polarity: NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.31 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 30 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.03 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 4 pF

Forward Current Transfer Ratio (hFE), MIN: 25

Noise Figure, dB: -

Package: SOT23
