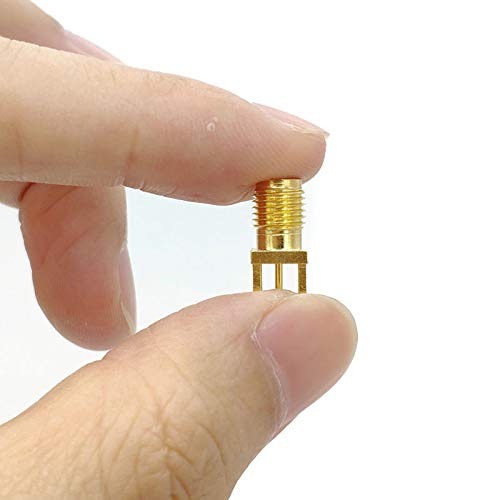

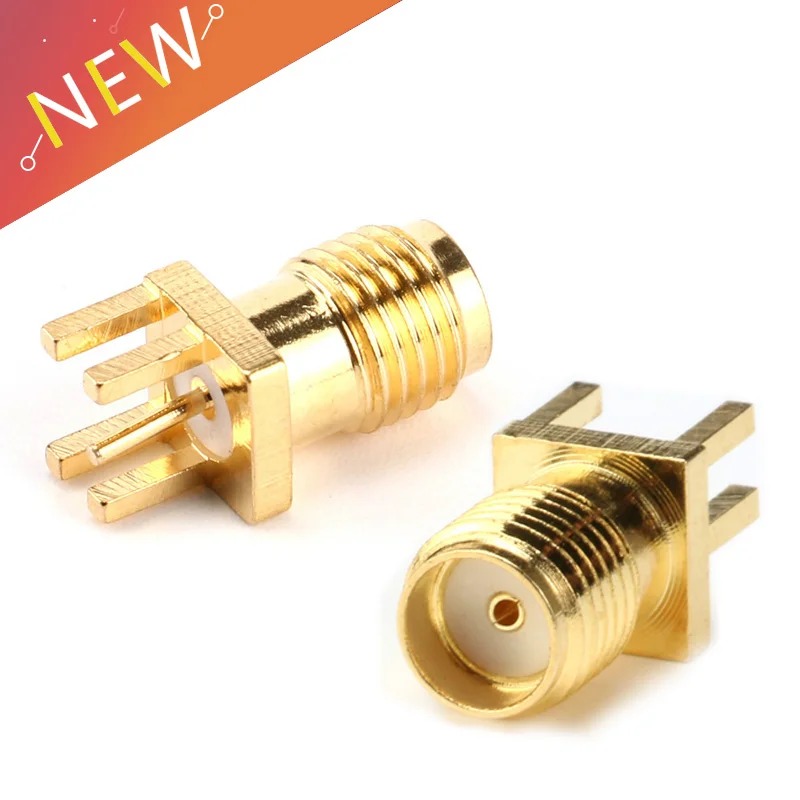

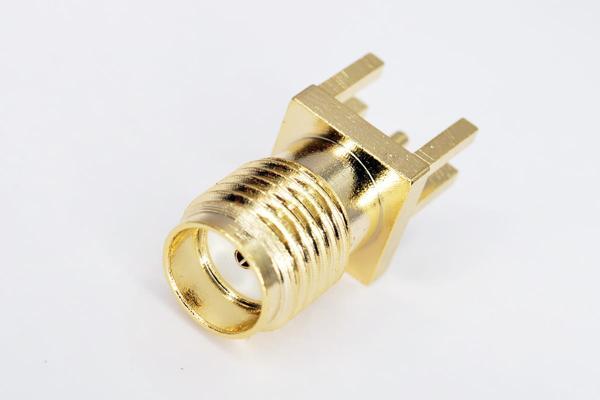

Professional RF SMA PCB Connector for High-Frequency Applications

The BAT Wireless BWSMA-KE-Z001 is a precision-engineered SMA PCB-end straight vertical connector developed for RF and microwave applications requiring dependable signal integrity and mechanical durability. Supporting frequencies from 0 to 6000 MHz, it is suitable for modern wireless communication systems including Wi-Fi, Bluetooth, GPS, LoRa, LTE, 5G, RFID, and many other RF applications.

Features

• Operating Frequency: DC to 6 GHz

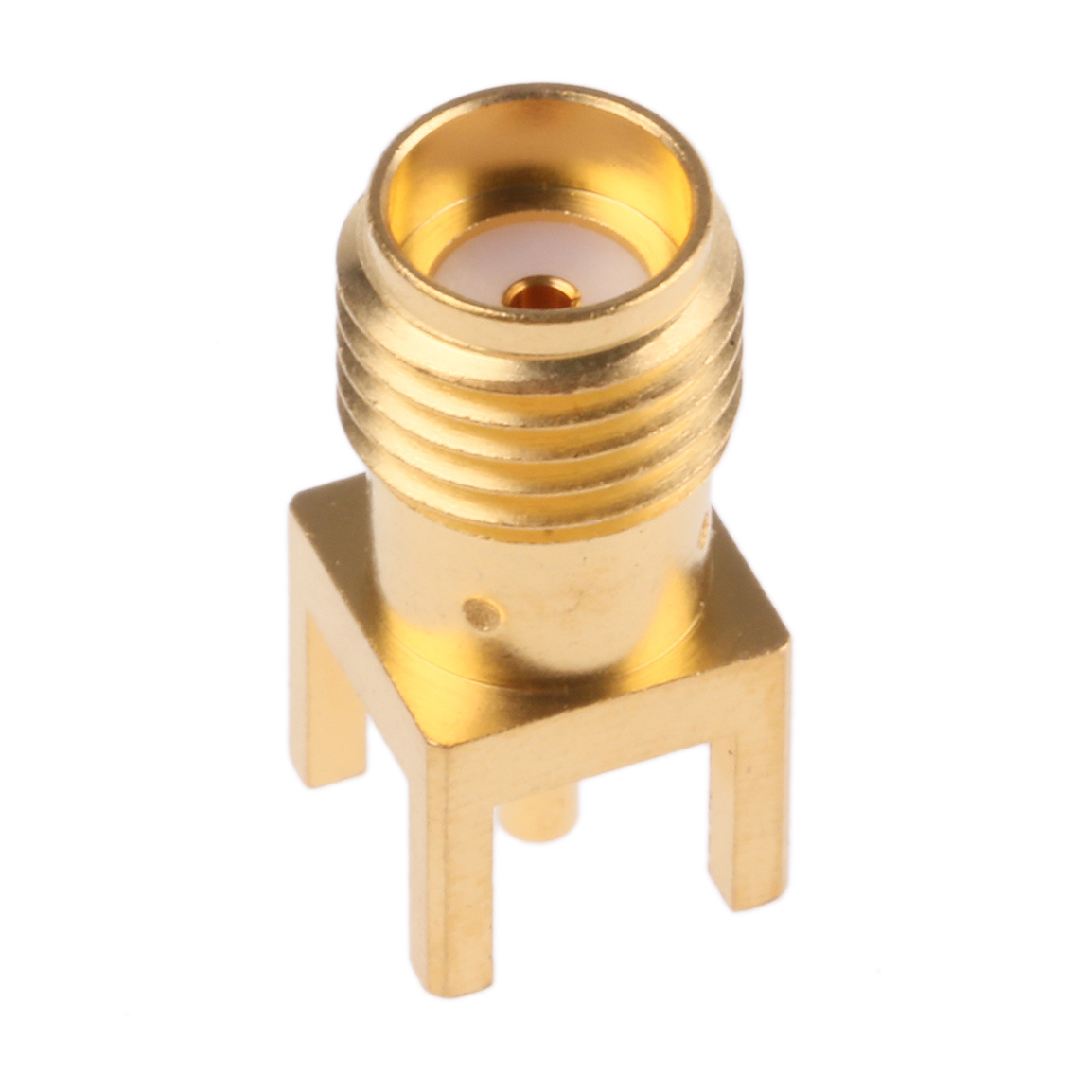

• Standard SMA Female PCB Connector

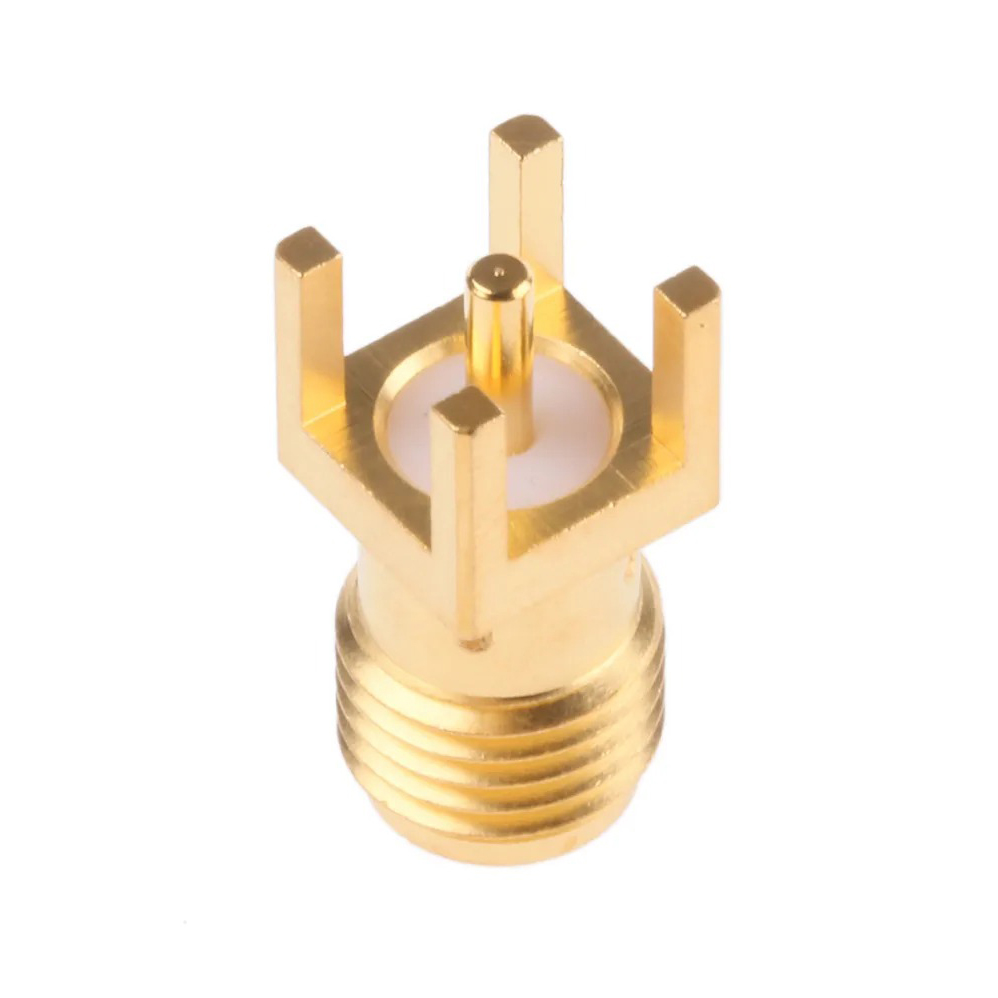

• Straight Vertical PCB Mount
• 50Ω Characteristic Impedance
• Hard Gold Plated Contacts
• Low Insertion Loss
• Excellent Signal Integrity
• Low Contact Resistance
• High Insulation Resistance
• Durable Construction
• Corrosion Resistant
• Suitable for High Frequency RF Applications
• Compact Mechanical Design
• Easy PCB Installation
• RoHS & REACH Compliant
• Rated for up to 500 mating cycles

Typical Applications

The BWSMA-KE-Z001 is suitable for numerous RF and microwave systems, including:

• Wi-Fi Devices
• Bluetooth Modules
• GPS Receivers
• GNSS Systems
• 4G LTE Modules
• 5G Communication Equipment
• LoRa Devices
• ZigBee Networks
• NB-IoT Devices
• RFID Equipment
• SDR (Software Defined Radio)
• RF Development Boards
• RF Signal Generators
• Spectrum Analyzers
• Laboratory Test Equipment
• Industrial Wireless Controllers
• Medical Electronic Equipment
• Embedded RF Products
• IoT Devices
• Antenna Interface Connections

for Datasheet click HERE
