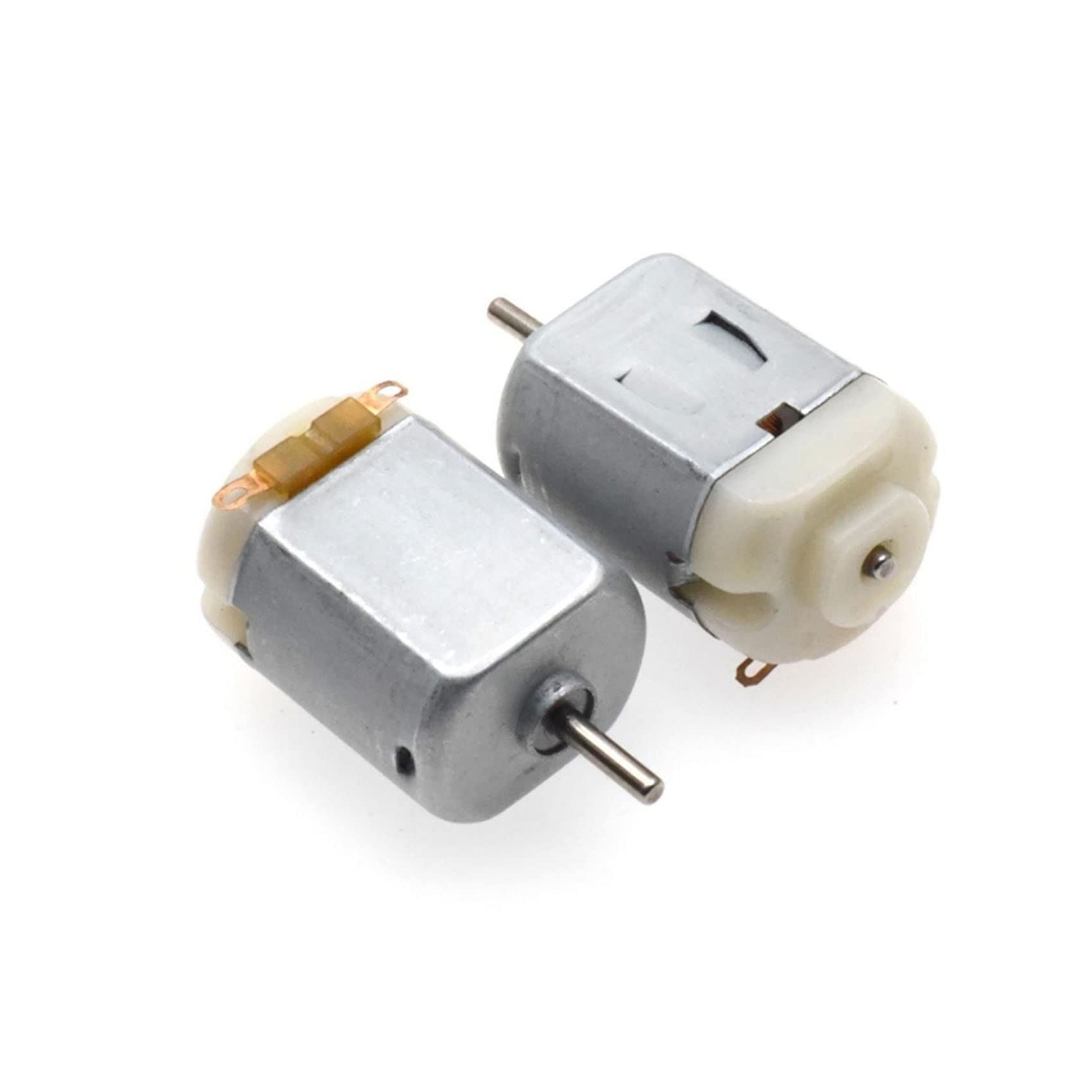

Small DC Motor (3:6V - 11000RPM)

This is the 130-size DC motor used in the larger Pololu plastic gearmotors (228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree).

It has a recommended operating voltage of 3 – 12 V;

at 6 V, the no-load speed is about 11,500 RPM,

the no-load current is approximately 70 mA,

and the stall current is around 800 mA.

For an estimate of the torque, note that the Pololu 228:1 plastic gearmotor produces roughly 100 oz-in of torque at 6 V using this motor,

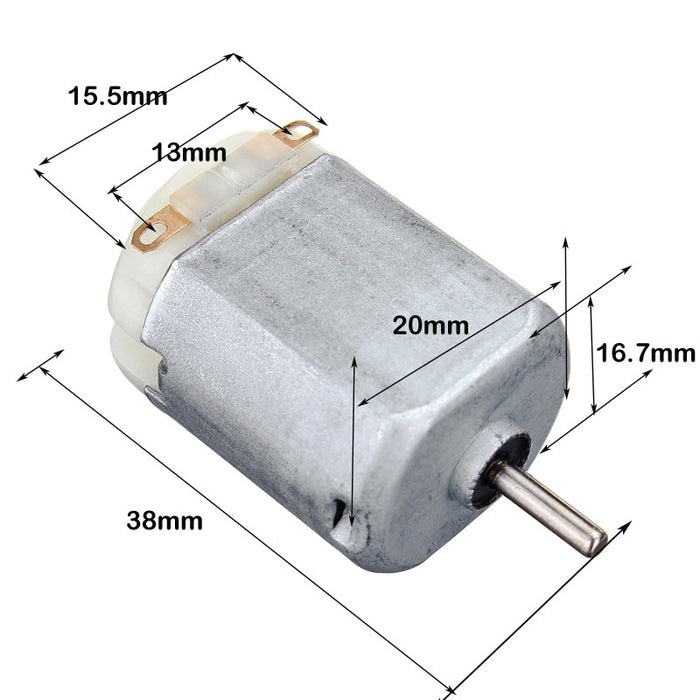

and the Pololu 120:1 plastic gearmotors produce roughly 75 oz-in of torque at 6 V. The output shaft has a diameter of 2 mm.
