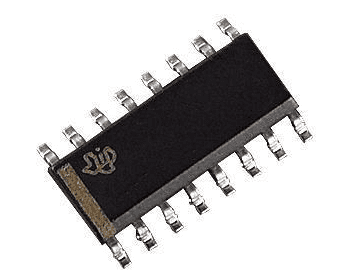

SMD 74595 (8-bit Serial In/Serial or Parallel Out Shift register)

The 74HC595 is an 8-bit serial-in, parallel-out shift register with a storage register and 3-state outputs. It is widely used to expand microcontroller I/O pins, particularly for driving LEDs or controlling peripherals. Key features include 2.0V–6.0V operation, 35mA output current, and 25MHz clock speed.

Key Features and Technical Specifications:

• Functionality: Serial-to-parallel conversion.
• Structure: 8-bit shift register with a D-type latch.
• Outputs: 3-state parallel outputs for easy cascading.
• Control Pins: Separate clocks for shift register and latch, plus an asynchronous reset.
• Speed/Power: High-speed CMOS technology with low power consumption.
