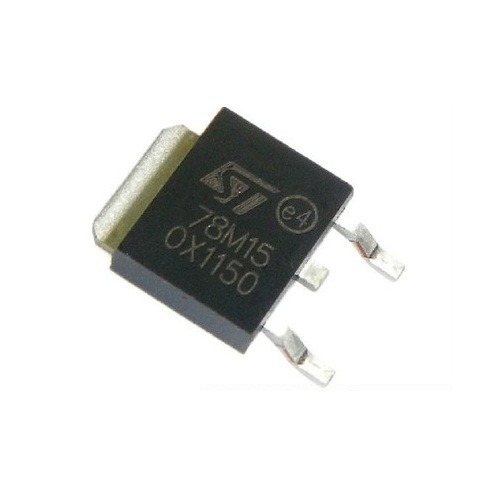

SMD 78M15 (Positive Voltage Regulator 15V)

Description

The L78M series of three - terminal positive regulators

DPAK and IPAK packages and with several fixed

output voltages, making it useful in a wide range

of applications. These regulators can provide local on - card regulation,

eliminating the distribution problems associated with single point

regulation. Each type employs internal current

limiting, thermal shutdown and safe area

protection, resulting it essentially indestructible.

If adequate heat sinking is provided, they can

deliver over 0.5 A output current. Although

designed primarily as fixed voltage regulators,

these devices can be used with external

components to obtain adjustable voltage

and currents

Features

• Output current to 0.5 A
• Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection
• Output voltage tolerance: 2 % (AB and AC versions) or 4 % (C version)

Guaranteed in extended temperature range
