SMD Adapter PCB Board TQFP (32-100Pin) 0.5mm and TQFP (32-64Pin) 0.8mm

Product details

Tips:

When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width.

Suitable for MCU,series STC89C,ATmega,MSP43,etc.

Feature:

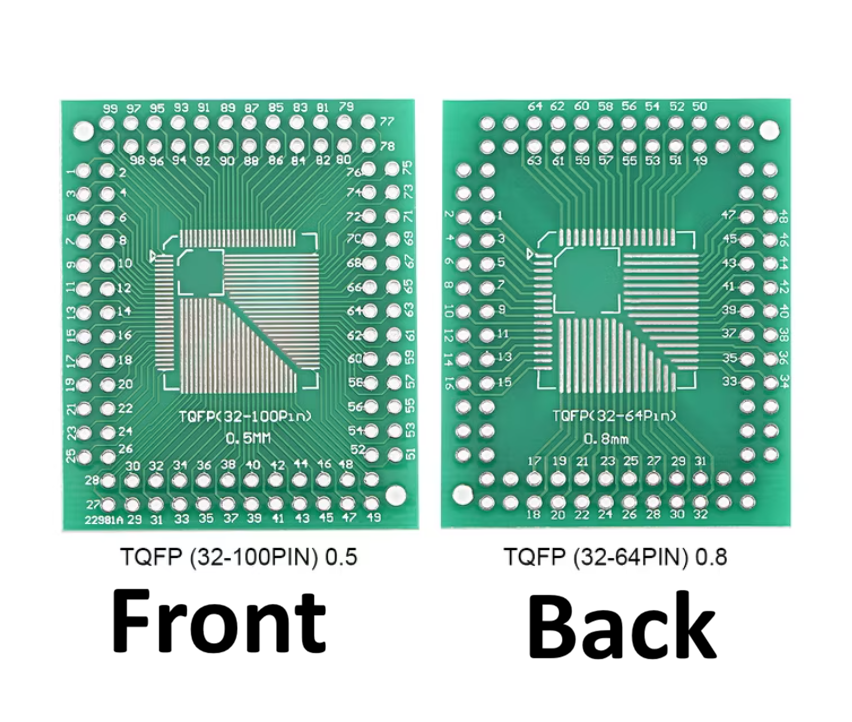

Front side : TQFP (32-100PIN) Pitch 0.5MM

Back side : TQFP (32-64PIN) Pitch 0.8MM

Parameter:

Product Name : Double-Sided Pre Tinned PCB Board

Material : Glass Fiber FR-4

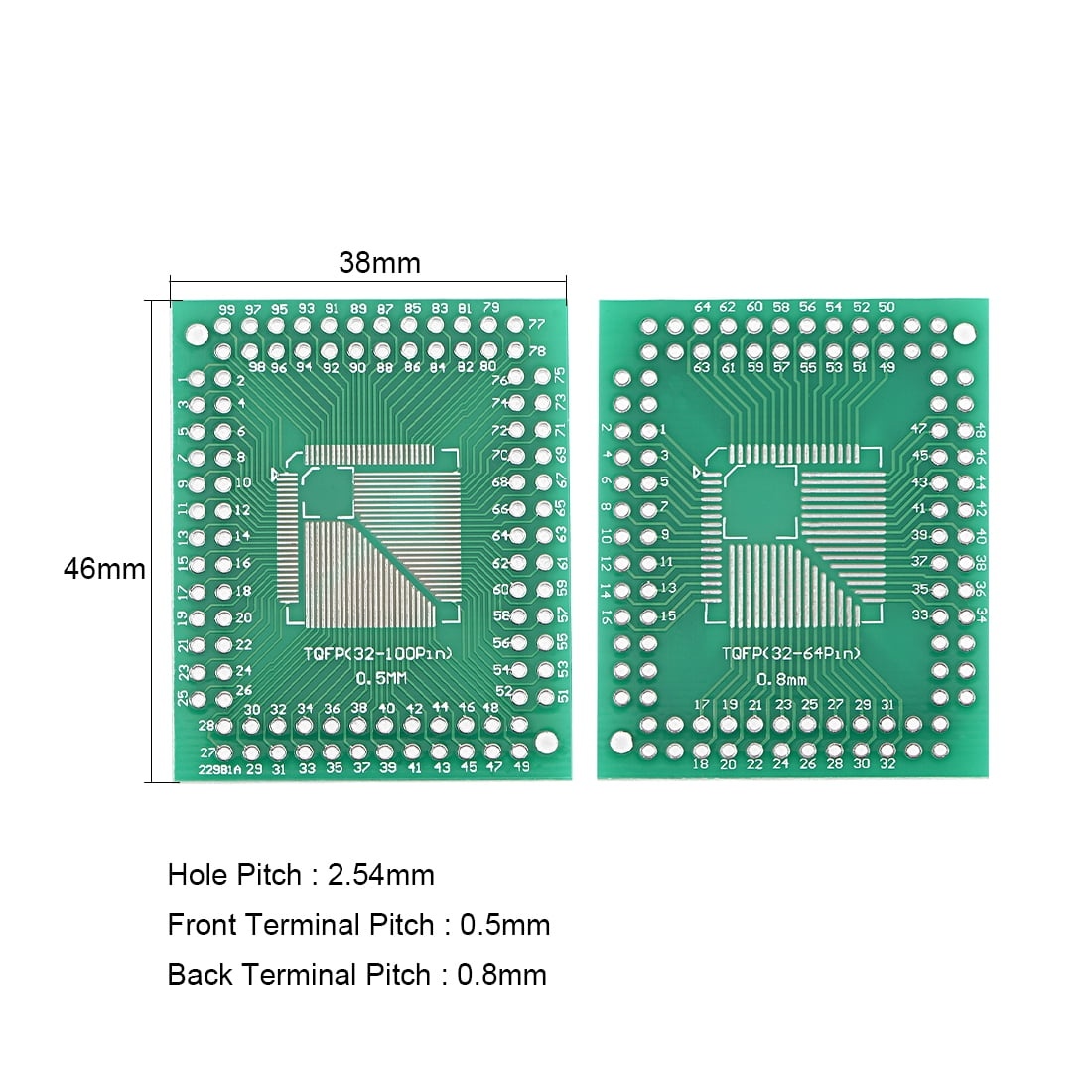

Board size : approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L )

Terminal Number : 32-100

Thickness : approx. 1.6mm

Hole Diameter : 1 mm

Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.)

Color : Green,Silver Tone

Net Weight : 25g

Package content:

1 pcs x SMD Adapter PCB Board TQFP
