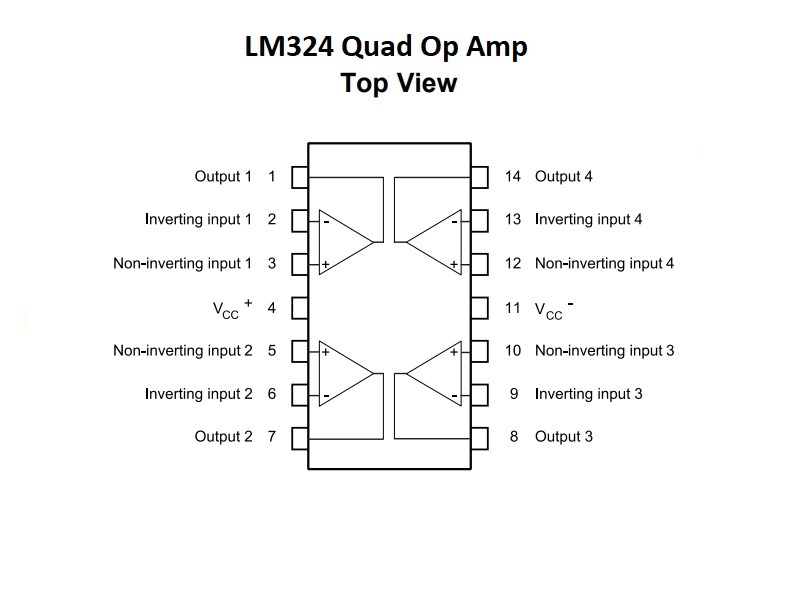

SMD LM324 Sop-14 (Quad Operational Amplifier (Op-Amp))

Features of LM324 – Low Power Quad Op-Amp IC

• Four Amplifiers Per Package
• Short Circuited Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V or Dual Supplies ±1.5 V to ±16 V
• Differential Input Voltage Range Equal to the Power Supply Voltage
• Unity-Gain Bandwidth: 1MHz (Typ)
• Internally Frequency Compensated for Unity Gain
• DC Voltage Gain:100dB (Typ)
• Input Bias Current: 45nA (Typ)
• Input Offset Voltage: 2mV (Typ)
• Supply current: ~700uA
• Operating ambient temperature: 0˚C to 70˚C
